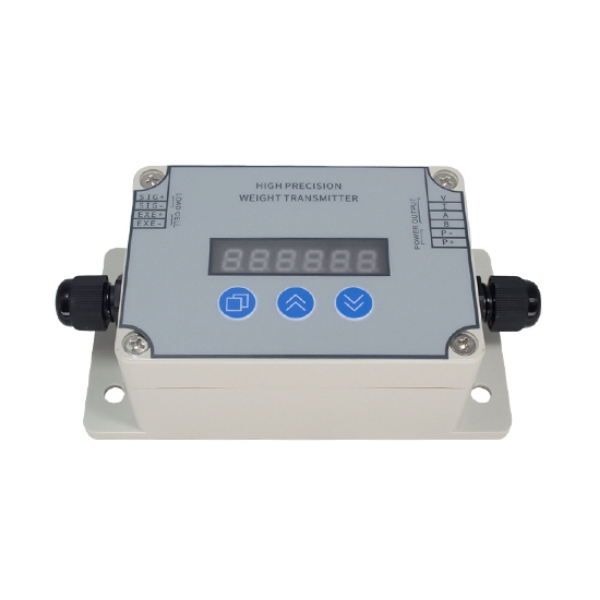

Digital Load Cell Amplifier, 4-20mA/0-10V/RS485 Output

Name: Digital Load Cell Amplifier, 4-20mA/0-10V/RS485 Output
Brand: Such.com
SKU: SUCH-LCTR-OAR
Price: 109.85 USD
Availability: InStock
Rating: 5.0 (1 reviews)

1 review(s) | Add your review

SKU: SUCH-LCTR-OAR

$109.85

● Output standard signal 4-20mA/0-5V/0-10V/RS485 ● Input signal 0~±20m ● DC 12-30V power supply ● 6 digit red LED, -99999~999999

Output Signal *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Digital load cell amplifier for sale online. Digital load cell transmitter features a 6-digit red LED display with a range of -99999 to 999999, outputs signals of 4-20mA/0-5V/0-10V/RS485, with an accuracy of ±0.2%FS ±1 byte and power consumption of less than 1W. SUCH digital load cell amplifier offers zero adjustment and gain adjustment functions, and can be directly interfaced with automatic control equipment or connected to a computer, making it widely used in automation equipment and testing.

Feature

This digital load cell amplifier precisely amplifies the microvoltage (MV) signal from a load cell.
It features neat internal circuitry, a constant current bridge supply, voltage-to-current conversion, impedance adaptation, linear compensation, and temperature compensation.
This load cell transmitter offers zero adjustment and gain adjustment functions, and excellent long-term stability.
It can be directly interfaced with automatic control equipment or connected to a computer, making it widely used in automation equipment and testing.

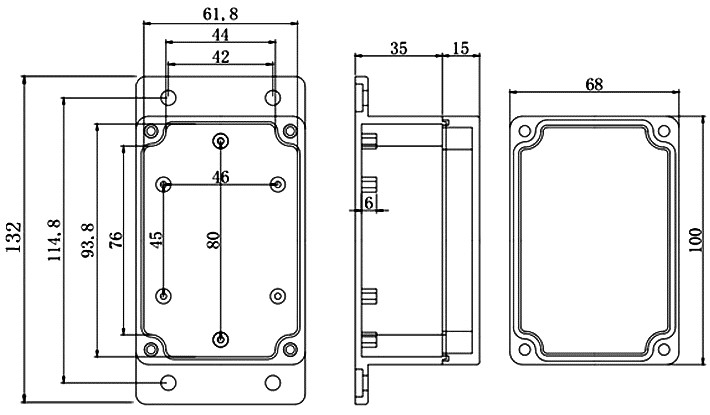

Dimension (Unit:mm)

Digital load cell amplifier size

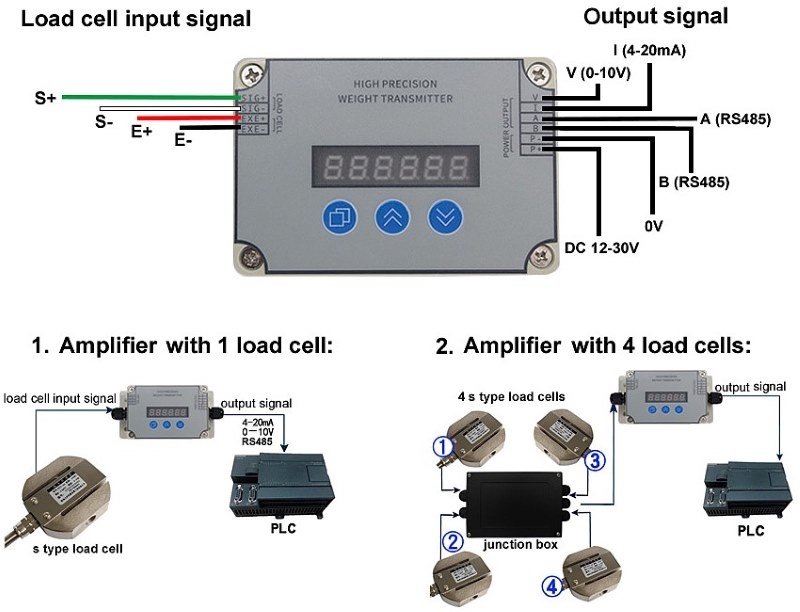

Wiring

Digital load cell amplifier wiring

Specs

Accuracy	±0.2%FS ±1 byte
Input signal	0~±20mV
Excitation voltage for load cell	DC 5V
Output signal *	DC 4-20mA, DC 0-5V, DC 0-10V, RS485 (Modbus-RTU), 4-20mA & RS485, 0-5V & RS485, 0-10V & RS485
Sampling rate	60 times/s, 120 times/s
Power supply	DC 12-30V
Power consumption	＜1W
Display	6 digit red LED, -99999~999999

Application

Packaging

Logistics

Ingredients System

FAQ

Q1: What is a digital load cell amplifier? ❯

A digital load cell amplifier is a signal conditioning device used to amplify, filter, and linearize the weak millivolt signal output by a load cell, converting it into a standard output signal.

Q2: What are the output types of a load cell amplifier? ❯

Common output types include 4–20mA, 0–5V, 0–10V, and RS485/Modbus communication for digital systems.

Q3: Can one load cell amplifier be used for multiple load cells? ❯

Some load cell amplifiers can handle multiple load cells connected in parallel, but it depends on the amplifier’s design and total load capacity.

1 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: Thomas D. | Date: 4/30/2026 2:44 AM

Great experience with this load cell amplifier.

This digital load cell amplifier exceeded my expectations. I connected it to my weighing system using the 4–20mA output, and the signal has been consistent and noise-free. Wiring and configuration were easy, even without complicated instructions. It’s been running continuously without any problems. Quality is good, and it does exactly what I needed.
