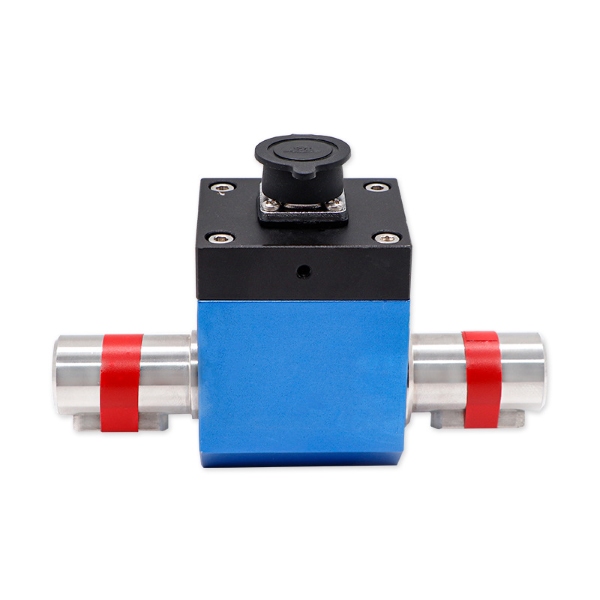

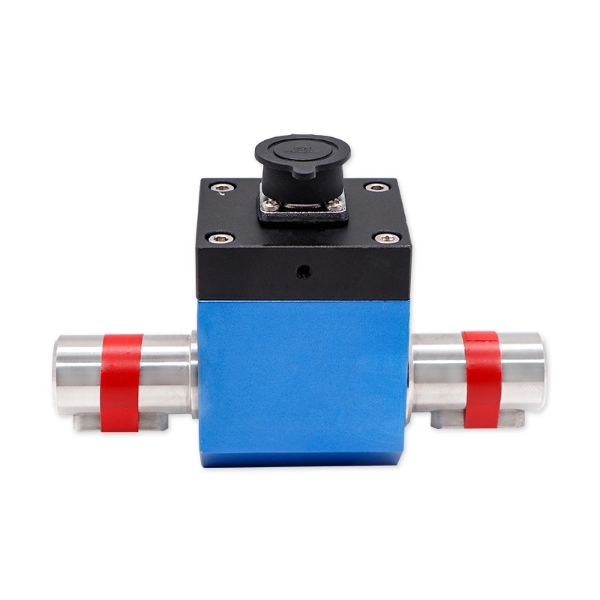

Dynamic Torque Sensor for Motor, 10-100 Nm

SKU: SUCH-TQS-101
$972.35
● Range 10-100Nm optional ● Sensitivity 1.5±10%mV/V ● Safe overload 150%F.S ● Extreme overload 200%F.S
*
🚚 Free shipping
🕒 Delivery date: 6-12 days
🔁 30-day Returns
Overview

The dynamic torque sensor for motor is a sensor that converts physical changes in torque into precise electrical signals, with optional measurement ranges of 10-1000 Nm. The SUCH dynamic torque sensor has a sensitivity of 1.5±10%mV/V, a temperature compensation range of -10~60℃, high detection accuracy, good stability, and strong anti-interference capability. The dynamic torque transducer for motor can operate at high speeds for extended periods, outputting forward and reverse torque signals. Both ends are keyed connections, and it can be used in electric torque wrenches, transmitting the output torque and power of rotating power equipment such as electric motors and internal combustion engines.

Feature

  • High Precision: The resistance strain gauge is an integrated product consisting of a sensitive element and an integrated circuit, ensuring high precision and stable, reliable performance.
  • Long-term Operation: The dynamic torque measurement sensor can operate at high speed for extended periods, outputting forward and reverse torque signals. It features strong anti-interference capabilities, fast frequency response, and long lifespan.
  • Keyed Connection: Both ends of the dynamic torque sensor for motor are keyed, facilitating installation and use. It can detect torsional torque on various rotating or non-rotating mechanical components.

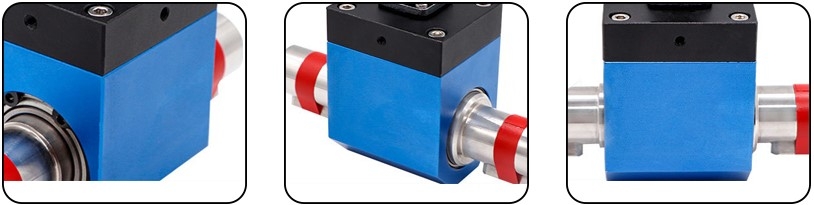

Torque sensor for motor feature

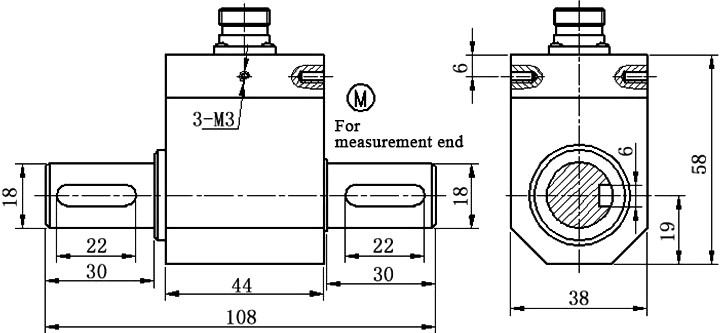

Dimension (Unit:mm)

Torque sensor for motor size

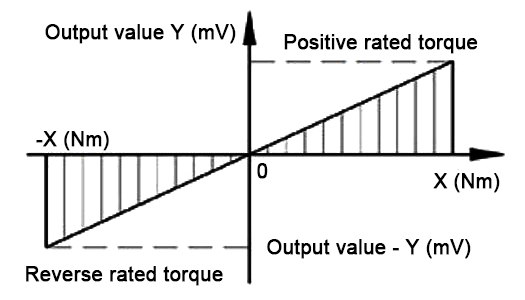

Load Characterization Diagram

Torque sensor for motor load characterization diagram

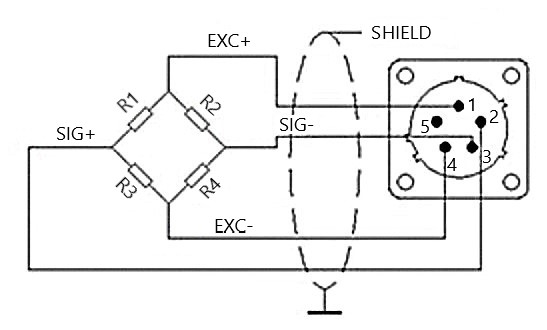

Definition of Aviation Plugs

Torque sensor for motor definition of aviation plugs

EXC+ SIG+ SIG- EXC- SHIELD
Red Blue White Black Thick Black



Installation

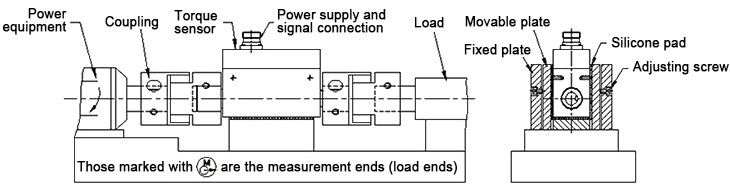

Torque sensor for motor horizontal installation

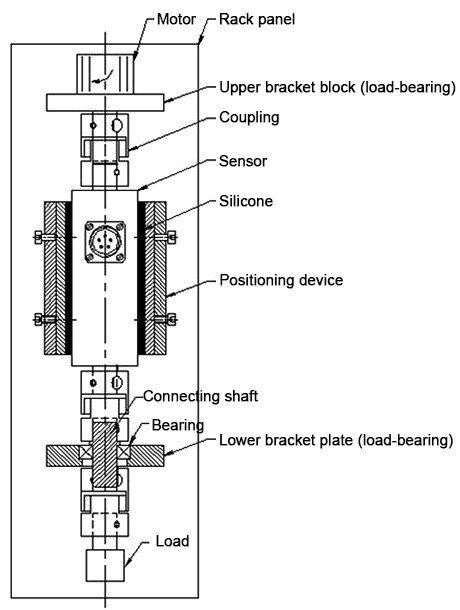

Torque sensor for motor vertical installation

  • Torque sensors can be installed horizontally or vertically.
  • Power equipment, sensors, and load devices should be installed on a stable foundation to avoid excessive vibration, which may lead to unstable data, reduced measurement accuracy, or even damage to the sensor.
  • Use flexible pin couplings or rigid couplings for connection.
  • The middle part of the sensor should not be rigidly fixed; a flexible connection should be used.
  • The concentricity of the axes of the power equipment, sensor, and load device should be less than Ф0.03mm.
  • When the sensor is used vertically, there should be supporting partitions at the input and output ends to prevent the sensor from being subjected to the gravity of the power source and load, thus ensuring measurement accuracy.
Specs
Measuring Range 0-10/20/30/50/100 Nm
Sensitivity 1.5±10% mV/V
Zero-point Output ±2% F.S
Non-linearity ±0.1% F.S, ±0.3% F.S
Hysteresis ≤±0.05% F.S
Repeatability ≤±0.05% F.S
Creep ≤±0.03% F.S/30 min
Temperature Sensitivity Drift 0.03% F.S/10℃
Zero-point Temperature Drift 0.03% F.S/10℃
Input Resistance 750±10Ω
Output Resistance 700±10Ω
Insulation Resistance ≥5000 MΩ/100 VDC
Excitation Voltage 5-15 V DC (Recommended voltage 10VDC)
Temperature Compensation Range  -10~60℃
Operating Temperature Range -20~65℃
Safe Overload 150% F.S
Ultimate Overload 200% F.S
Cable Size Φ5.2*3m
Electrical Connections Red/E+, Black/E-, Green/S+, White/S-
Material Stainless steel or alloy steel
Application
Rotary torque sensor of blender

Blender

Rotary torque sensor of conveyor belt

Conveyor Belt

Rotary torque sensor of generator

Generator

FAQ

Never connect wires while the circuit is live to avoid short-circuiting and damaging the sensor. The shielding layer must be grounded at one end.

The excitation voltage range is 5-15V DC, with 10VDC recommended. Below 5V, the output signal amplitude is too small, and the anti-interference capability decreases. Above 10V, attention should be paid to sensor heat dissipation to avoid long-term high-temperature operation. Voltage fluctuations should be controlled within ±5%, and a regulated power supply is recommended.

  • Input resistance: The equivalent resistance at the excitation voltage input terminal, which must match the output impedance of the signal conditioner to avoid signal attenuation.
  • Output resistance: The equivalent resistance at the signal output terminal, affecting the signal transmission distance.
  • Insulation resistance: Ensures electrical safety, prevents signal short circuits or leakage, and is suitable for industrial high-voltage environments.
