    Find a Sensor A - Z

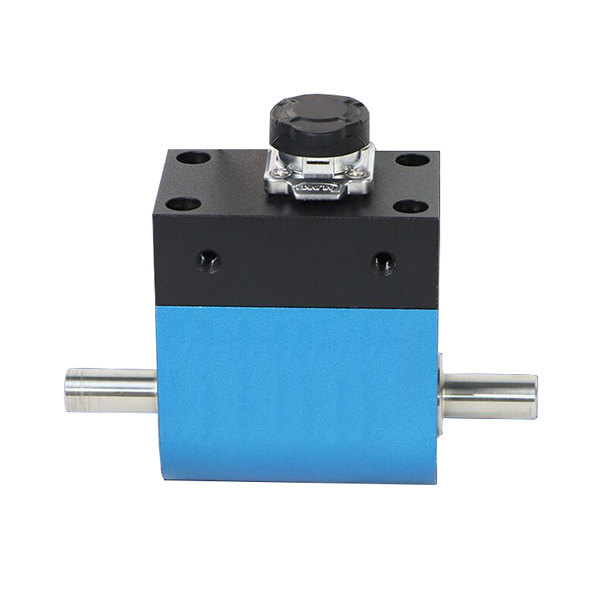

    Picture of Miniature Dynamic Torque Sensor, 0.1-5 Nm Picture of Miniature Dynamic Torque Sensor, 0.1-5 Nm Picture of Miniature Dynamic Torque Sensor, 0.1-5 Nm

    Miniature Dynamic Torque Sensor, 0.1-5 Nm

    0 review(s) | Add your review
    SKU: SUCH-TQS-D02
    $914.02
    ● Range 0.1/0.2/0.3/0.5/1/2/3/5 Nm selectable ● Sensitivity 1.0-1.5mV/V, speed range 0-3000rpm ● Made of stainless steel, IP65 protection class ● Output DC 0-20mV/4-20mA/0-10V/-5V~+5V/RS485/RS232
    *
    *
    *
    šŸšš Free shipping
    šŸ•’ Delivery date: 6-12 days
    šŸ” 30-day Returns
    Overview

    Factory price micro dynamic torque sensors for sale online. The SUCH dynamic torque sensor features two shafts, a single plug, no mounting base, and a stainless steel housing. This miniature torque sensor has a measuring range of 0-0.1 Nm/0.2 Nm/0.3 Nm/0.5 Nm/1 Nm/3 Nm/5 Nm and can measure both forward and reverse torque. The output signal is DC 0-20mV, or with a display controller, it can output DC 4-20mA, 0-10V, -5V to +5V, RS485, and RS232. Torque sensor capacity can be customized according to customer requirements.

    Feature

    • Use of Portable: Plug and play with an aviation plug. The integrated output of the resistance strain gauge sensor and integrated circuit measures forward and reverse torque signals.
    • High-Precision Strain Gauge: The miniature dynamic torque sensor utilizes industrial-grade, high-precision strain gauges for high measurement accuracy, minimal creep, minimal thermal hysteresis, and excellent long-term stability.
    • Stable Transmission: The 3m outer diameter cable provides strong anti-interference capabilities. Keyed connections on both ends of the torque sensor ensure high-speed and stable signal transmission.
    • Rugged and Durable: The dynamic torque transducer housing is constructed of stainless steel, which is rust-resistant, heat-resistant, and wear-resistant. It also exhibits excellent hardenability and fatigue resistance.

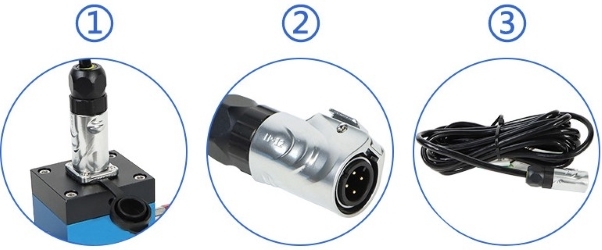

    Miniature torque sensor feature

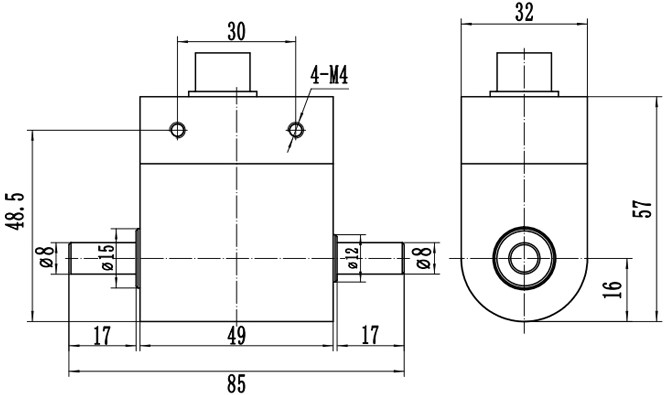

    Dimension (Unit:mm)

    Miniature torque sensor dimension

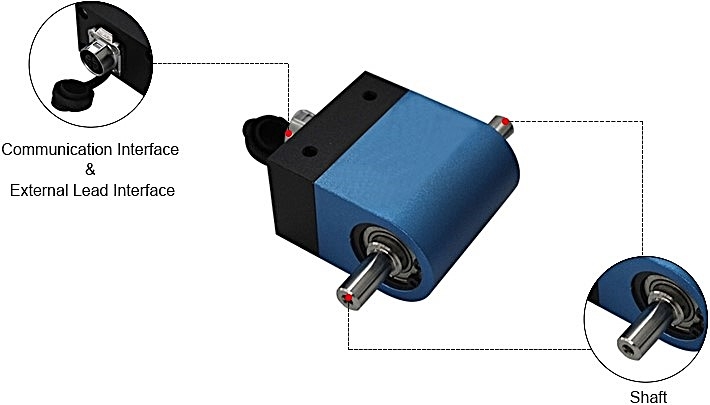

    Details

    Miniature torque sensor for dynamic torque measurement details

    Force Mode

    Miniature torque sensor force mode

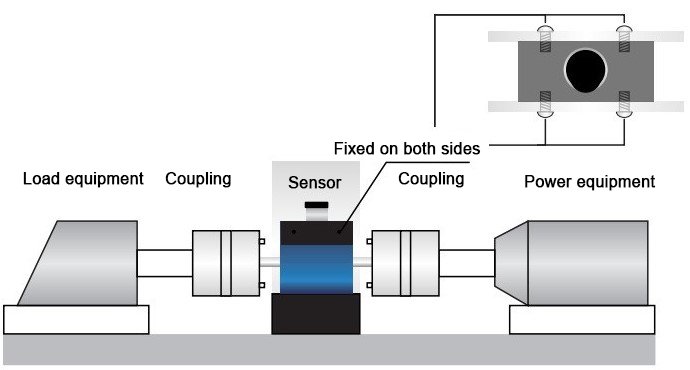

    Installation

    Miniature torque sensor installation

    Specs
    Shipping Weight 1.5kg
    Capacity Range * 0-1 Nm ~ 0-5 Nm
    Output Signal * DC 0-20mV, or equip display controller SUCH-TQS-D056 for output signal DC 4-20mA, 0-10V, -5V~+5V, RS485, RS232
    Sensitivity 1.0-1.5mV/V
    Zero Balance Ā±2%FS
    Non-linearity 0.1%FS
    Hysteresis 0.03%FS
    Repeatability 0.03%FS
    Creep 0.03%FS/30min
    Temperature Drift on Zero ļ¼œ0.1%F.S/10ā„ƒ
    Temperature Effect on Output ļ¼œ0.03%F.S/10ā„ƒ
    Operating Temperature -10ā„ƒ~+60ā„ƒ
    Humidity 0~90%RH
    Impedance 350Ī©
    Insulation Resistance ā‰„2000MĪ©/100VDC
    Stability 0.3%FS/year
    Safety Overload 150%F.S
    Ultimate Overload 200%F.S
    Excitation Voltage DC 5-15V
    Speed Range 0-3000rpm
    Material Stainless steel
    Protection Class IP65
    Electrical Connection 5 pin circular connector
    Cable Length 3m (Ī¦5mm)
    Wiring EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White
    Application
    Rotary torque sensor of blender

    Blender

    Rotary torque sensor of conveyor belt

    Conveyor Belt

    Rotary torque sensor of generator

    Generator

    FAQ
    āÆ

    Dynamic torque sensors are commonly used in automotive testing, electric motor performance measurement, transmission testing, industrial machinery monitoring, and research laboratories for power and efficiency analysis.

    āÆ

    Yes. Many dynamic torque transducers can measure torque in both clockwise and counterclockwise directions, which is useful in applications involving reversing drives or regenerative systems.

    āÆ

    Keep the sensor clean and dry, check cables and connectors regularly, and avoid overloading or impacts. Calibration and bearing lubrication (if applicable) should be performed periodically to maintain long-term accuracy.
