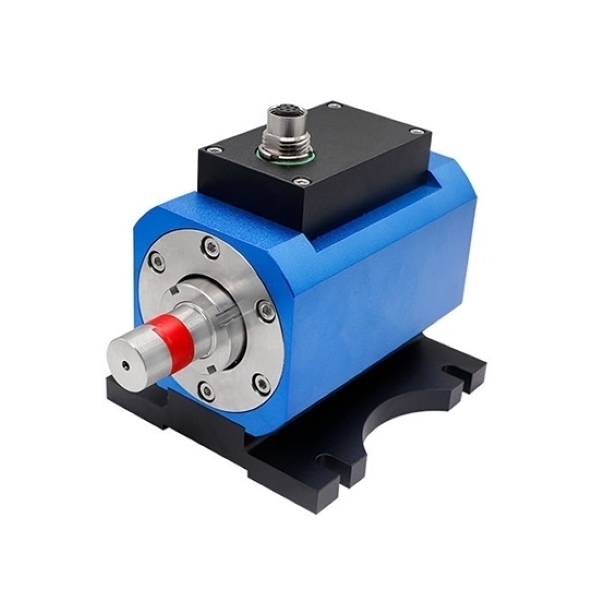

Non-Contact Dynamic Torque Transducer, 5-500 Nm

SKU: SUCH-TQS-305

$1,320.77

● Torque range 5-500Nm optional ● Speed range 1000-12000RPM selectable ● Operating temperature -20~50℃ ● Supply voltage 9-32V DC

Capacity *
Torque Output Signal *
Speed *
Speed Output Signal *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Non-contact dynamic torque transducer for sale. The small dynamic torque sensor is non-contact, with optional capacities of 0-5/10/20/30/50/100/200/500Nm, output signals of 5KHz-15KHz/0-20mA/4-20mA/0-5V, and a speed range of up to 12,000rpm. SUCH non-contact dynamic torque transducer has the advantages of small size, high speed, strong signal anti-interference ability, and convenient use and installation. The dynamic torque sensor is suitable for long-distance transmission and applicable to various torque measurement applications that require small size and high speed.

Feature

Stable Performance: The dynamic torque sensor is small in size, operates at high speed, and is non-contact, making it suitable for long-term high-speed rotation conditions.
Long-distance Transmission: Multiple output signals are available, with strong anti-interference capabilities, making it suitable for long-distance transmission.
Wide Applications: High measurement accuracy, with speeds up to 12000 RPM, suitable for various torque measurement applications requiring small size, high speed, and long-term high-speed rotation.

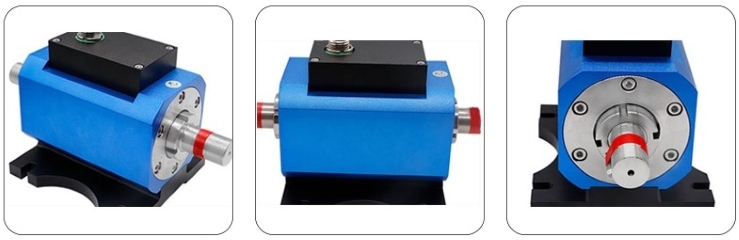

Dynamic torque transducer feature

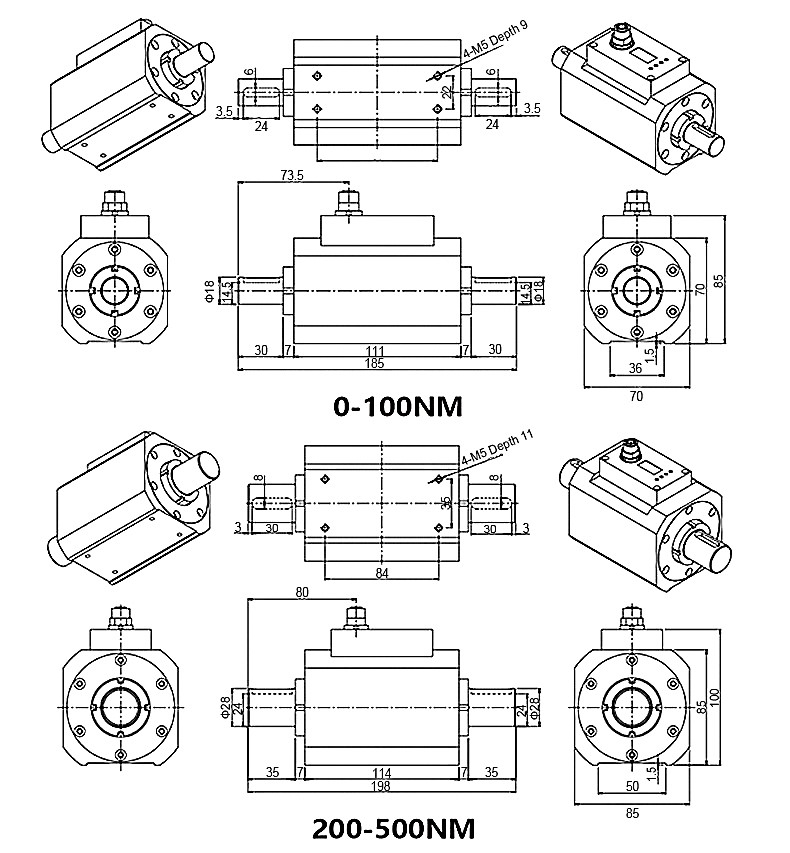

Dimension (Unit:mm)

Dynamic torque transducer size

Installation

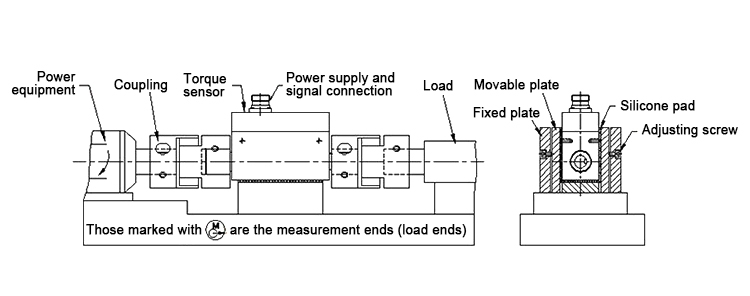

Horizontal Installation

Dynamic torque transducer horizontal installation

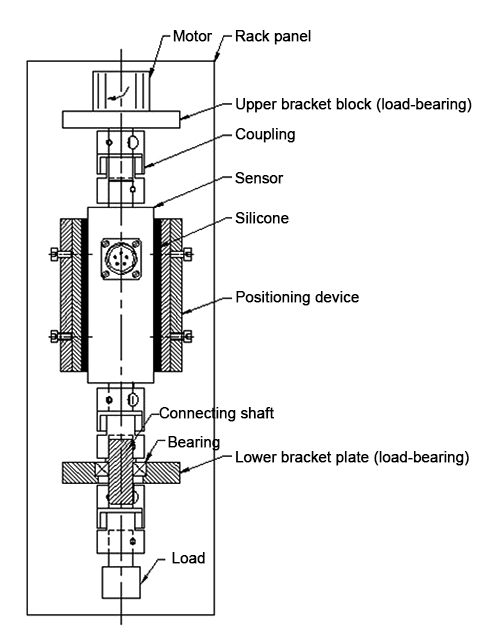

Vertical Installation

Dynamic torque transducer vertical installation

Specs

Range	0~5/10/20/30/50/100/200/500 N.m
Torque Accuracy	±0.5%F.S, contact us for other options
Frequency Response	5mS, contact us for other options
Non-Linearity	±0.1%F.S
Repeatability	±0.1%F.S
Hysteresis	±0.1%F.S
Zero Time Drift	±0.2%F.S
Zero Temperature Drift	±0.2%F.S
Using Temperature	-20°C~50°C
Storage Temperatur	-40°C~70°C
Power Supply Voltage	9-32V DC
Torque Signal Output	5KHz-15KHz, 0-20mA, 4-20mA, 0-5V, 0-10V, 1-5V, 0-±5V, 0-±10V, RS485, RS232, CAN (Optional)
Speed Range	0-1000, 2000, 4000, 6000, 8000, 12000 rpm
Material	Flexible shaft 17-4PH stainless steel
Casing Material	Aluminum alloy

Application

Blender

Conveyor Belt

Generator

FAQ

Q1: What are the advantages of non-contact dynamic torque transducers? ❯

Non-contact dynamic torque transducers eliminate friction and wear, offer longer lifespan, and maintain stable performance at high rotation speeds. Non-contact design also improves signal stability and reduces maintenance needs.

Q2: What are the main applications of non-contact torque transducers? ❯

Non-contact dynamic torque sensors are used in motor and engine testing, transmission systems, pump and turbine monitoring, aerospace equipment, and industrial machinery requiring real-time torque measurement.

Q3: Can a non-contact dynamic torque transducer measure both torque and speed? ❯

Can a non-contact dynamic torque transducer measure both torque and speed? Yes, non-contact dynamic torque transducers integrate a speed sensor or encoder, enabling simultaneous measurement of torque, rotational speed, and power output.
