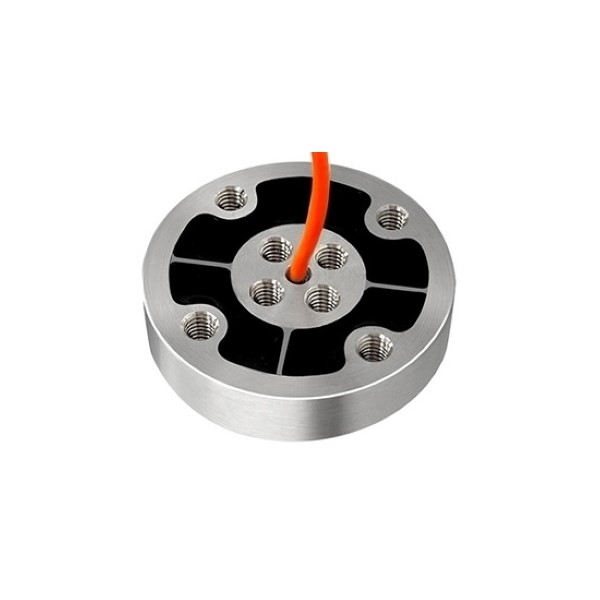

    Picture of Static Robot Joint Torque Sensor, Disc Type, 50-100 Nm Picture of Static Robot Joint Torque Sensor, Disc Type, 50-100 Nm Picture of Static Robot Joint Torque Sensor, Disc Type, 50-100 Nm Picture of Static Robot Joint Torque Sensor, Disc Type, 50-100 Nm

    Static Robot Joint Torque Sensor, Disc Type, 50-100 Nm

    0 review(s) | Add your review
    SKU: SUCH-TQS-NJY40
    $335.79
    ● Range 0-50/0-100 Nm selectable ● Sensitivity 1.5-2.0 mV/V, safety overload 120% ● Bridge voltage 5-12V DC ● Suitable for robot joint shafts & torque wrench calibration
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Static robot joint torque sensor for sale at a good price. The torque transducer is made of silicone gel, effectively insulated from air and dust, with a safe overload of 120% F.S., and can be used in -20℃~+60℃. SUCH static torque sensor can be used in robot joint shafts, robotic arms, torque wrench calibration, bolt tightening verification and material testing scenarios.

    Feature

    • Reasonable Structure: The static sensor utilizes a disc-type design, offering compact size, excellent stability, and a strong, compact design.
    • High-Quality Steel: The static robot joint torque sensor is constructed from high-quality stainless steel, ensuring quality and peace of mind.
    • Versatile Application: Suitable for measuring torque in various static and non-continuous rotational applications, such as disc connections, drilling rigs, and industrial automation.

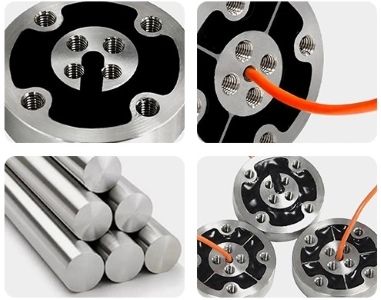

    Robot joint torque sensor features

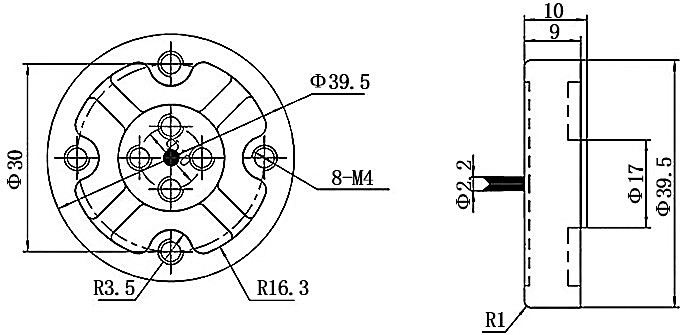

    Dimension (Unit:mm)

    Robot joint torque sensor dimension

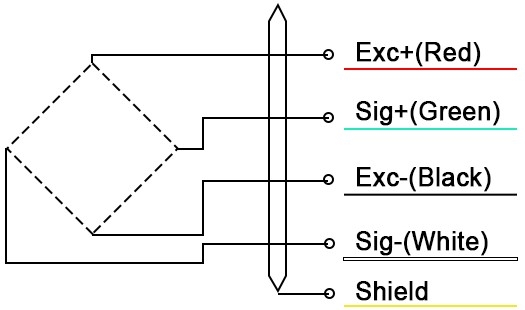

    Wiring

    Robot joint torque sensor wiring

    Specs
    Sensitivity 1.5-2.0 mV/V
    Material Stainless steel
    Non-Linearity ≤±0.5% F.S
    Repeatabilit ≤±0.5% F.S
    Creep ≤±0.5% F.S/30 min
    Zero Temperature Drift ≤±0.05% F.S/10°C
    Sensitivity Temperature Drift ≤±0.05% F.S/10°C
    Working Temperature -20°C~60°C
    Input Impedance 380±30Ω/730±30Ω
    Output Impedance 350±2Ω/700±3Ω
    Insulation Resistance ≥5000MΩ/100VDC
    Safety Overload 120% F. S
    Bridge Voltage 5-12VDC
    Application
    Static torque sensor of robot joint

    Robot Joint

    Static torque sensor of robot arm

    Robot Arm

    Static torque sensor of bolt

    Bolt

    FAQ
    ❯

    A static robot joint torque sensor measures the non-rotating torque applied to a robot joint or actuator. It helps monitor joint forces, detect overloads, and improve motion control accuracy.

    ❯

    Keep it clean, avoid electrical shock or overload, and regularly check the wiring. Regular calibration ensures consistent accuracy and reliable performance.

    ❯

    A force sensor measures the push or pull force applied along a straight line and the unit is N. A torque sensor, on the other hand, measures the moment of rotation about an axis and the unit is Nm.
