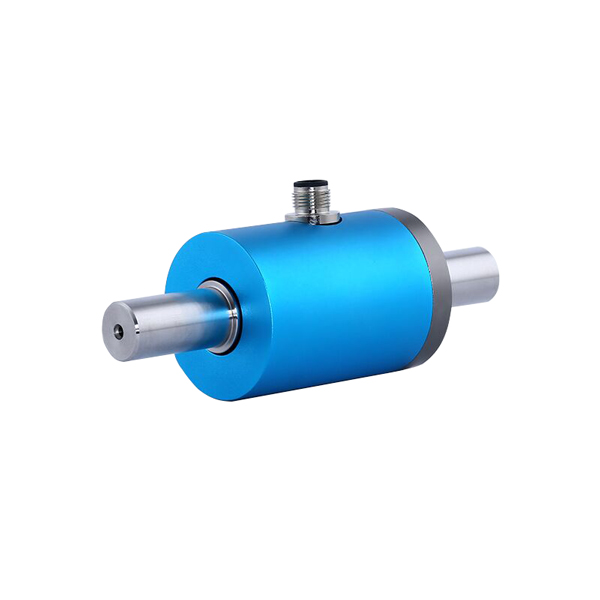

Shaft Static Torque Sensor, 10-2000 Nm

High quality shaft static torque sensor for sale, with a torque range of 10-2000Nm selectable. SUCH shaft type static torque transducer output signal is 0.8~2mVN, power supply voltage is 2~12VDC, and the optional accuracy grade has 0.2%F.S and 0.5%F.S. The static torque transducers are compact, easy to handle and install, with high precision, stable and reliable performance. The shaft static torque sensor can be used in process measurement and control technology, fully automatic machining centers, measurement and control devices, tool engineering and special mechanical engineering.

Feature

• The shaft is made of stainless steel, offering high torsional stiffness and strong comprehensive overload protection.
• The static torque measurement sensor uses a four-pin aviation connector for quick connection and excellent contact.
• The shaft-type static torque sensor employs strain gauge electrical measurement technology, offering a wide measuring range, high accuracy, and stable and reliable performance.
• It features an aluminum housing, a compact design, and good corrosion resistance. Its lightweight construction facilitates on-site installation.
• The shaft static torque transducer can measure torque bidirectionally, both clockwise and counterclockwise, making it easy to use.

Dimension (Unit:mm)

10 Nm

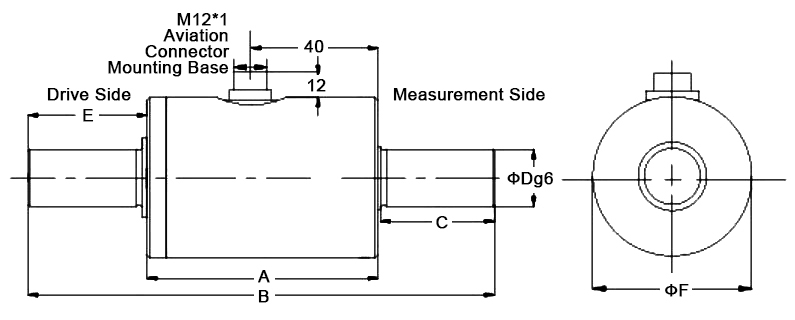

20-500 Nm

1000-2000 Nm

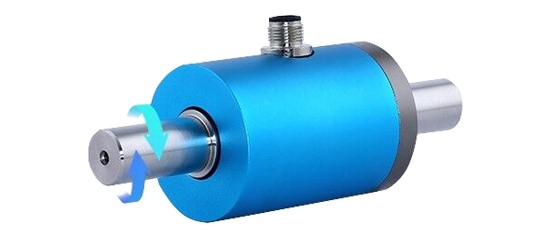

Force Mode

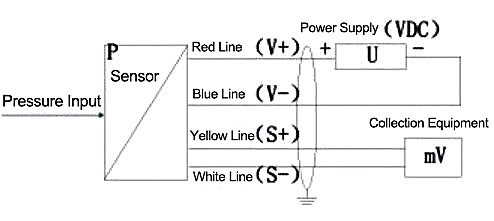

Wiring
