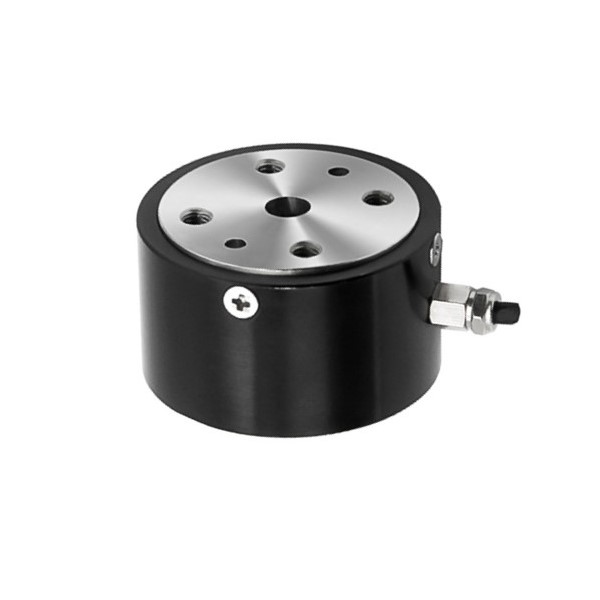

Micro Static Torque Sensor, Dual Flange, 5/10/20/50/100 Nm

Micro static sensor manufacturer direct sale online. Factory price dual flange static torque transducer is made of stainless steel, suitable for static, non-continuous small range torque value measurement, widely used in various torque testers, torque wrenches and other static torque measurement fields. SUCH micro static torque sensors have ranges of 0-5/10/20/50/100 Nm to choose from, with sensitivity of 1.0-2.0 mV/V, and safety overload of 120% F.S.

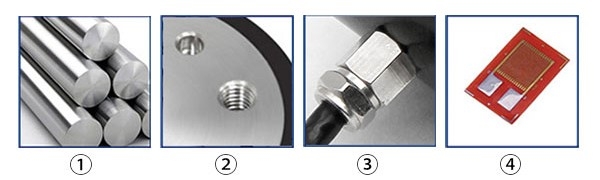

Feature

• Sensitive Responsiveness: The industrial-grade chip ensures high-precision measurement, high sensitivity, and minimal hysteresis.
• Wide Applications: The static torque sensor is widely used in various torque testers, torque wrenches, and other static torque measurement applications.
• Rugged and Durable: The miniature static torque sensor is constructed of high-quality steel and features waterproof connectors, making it suitable for most environments.

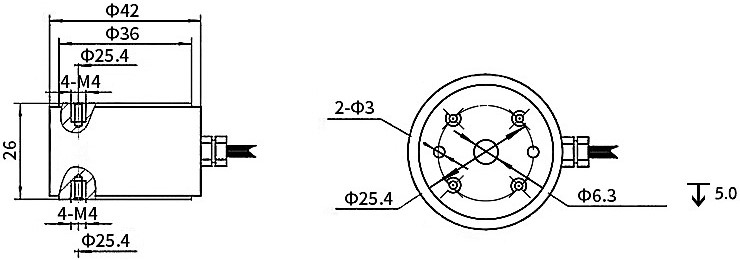

Dimension

Wiring

Note:

Conventional Transmitter Wiring (3-wire):

• Red-power positive (E+)
• Yellow-positive output (S+)
• Green-power negative (E-, S- common)

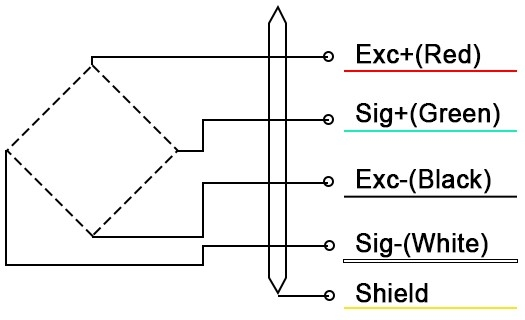

Static Torque Transducer Wiring Method:

• Red: power + (E+)
• Black: power - (E-)
• Green: Output +(S+)
• White: Output -(S-)
