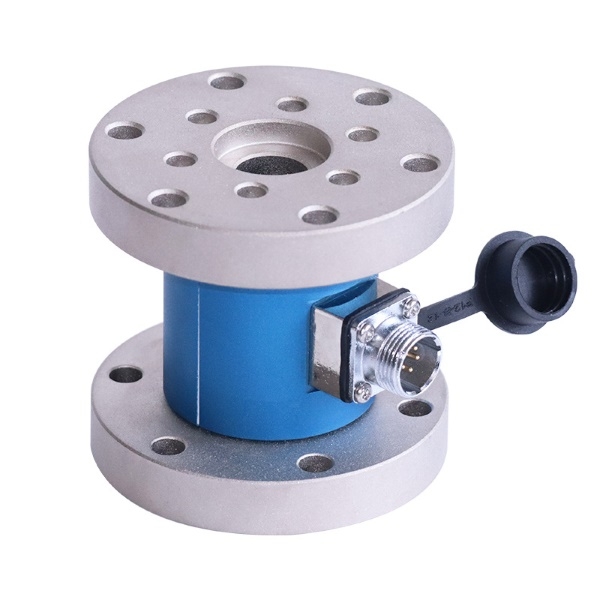

    Dual Flange Reaction Torque Sensor, 20-100000 Nm

    1 review(s) | Add your review
    SKU: SUCH-TQS-S01
    $174.03
    ● Range 0-100000 Nm optional ● Output sensitivity 1.0-2.0 mV/V ● 120% safe overload, 150% extreme overload ● Operating voltage 5-15V
    *
    šŸšš Free shipping
    šŸ•’ Delivery date: 6-12 days
    šŸ” 30-day Returns
    Overview

    Double flange reaction torque sensors for sale, capacity range with 20 Nm/50 Nm/100 Nm/200 Nm/300 Nm/500 Nm/1000 Nm/2000 Nm/3000 Nm/5000 Nm/10000 Nm/20000 Nm/100000 Nm optional. Static torque transducers are suitable for static or non-continuous rotating torque force measurement, widely used in testing machines, torque wrenches, steering motorized actuators, valves, transmissions, static torque hydraulics and other static torque test systems. SUCH double flange reaction torque sensor can measure forward and reverse torque, can withstand 150% of the load. Torque sensor capacity can be customized according to customer requirements.

    Feature

    • Multiple Ranges: Double flange reaction torque transducer has a variety of ranges to choose from, suitable for different torque measurement situations, a wide range of application scenarios.
    • Good Stability: Continuous measurement of static torque without repeated zeroing, strong anti-interference, strain elastomer strength, and can withstand 150% load.
    • Easy to Install: Small size, light weight, can be installed in any position, any direction. Both ends are flanged. One end is fixed when connecting and installing, and the other end is subjected to force.
    • Five-core Aviation Plug: Five-core aviation plug ensures high speed and stability of the transmission signal, and the metal bellows has strong resistance to overload, fatigue and deflection.
    • 24CrMo Alloy Steel: The static torque transducer adopts 24CrMo alloy steel, which has high strength and toughness, good hardenability, high fatigue limit and resistance to multiple impacts, with the advantages of durability, not easy to rust, high temperature resistance and wear resistance.

    Reaction torque sensor feature

    Dimension (Unit:mm)

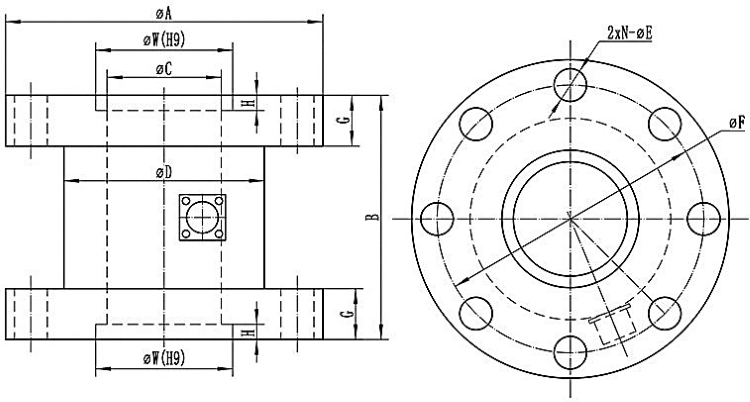

    Reaction torque sensor size

    Number Range (Nm)
    No.1 1-30
    No.2 50-300
    No.3 500-1000
    No.4 2000-5000
    No.5 10000
    No.6 20000
    No.7 30000-50000
    No.8 100000



    Number No.1 No.2 No.3 No.4
    A 69 69 98 125
    B 65 65 80 96
    C 14 22 30 45
    D 41 14 60 79
    E 6.5 6.5 8.5 13
    F 57 57 80 105
    N 6 6 8 8
    G 12 12 15 20
    W 22 25 40 50
    H 5 5 6 6



    Number No.5 No.6 No.7 No.8
    A 160 210 310 380
    B 140 140 200 230
    C 40 - - -
    D 101 119 180 218
    E 17 22 26 38
    F 130 165 250 310
    N 8 8 12 12
    G 20 30 45 55
    W 80 100 130 170
    H 6 6 6 8


    Force Mode

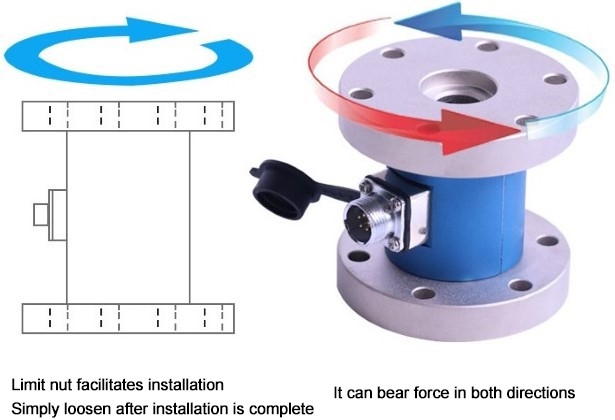

    Reaction torque sensor force mode

    Wiring

    Reaction torque sensor wiring

    Specs
    Range 0-100000 Nm
    Output Sensitivity 1.0-2.0mV/V
    Zero Output Ā±2%F.S
    Non-linearity 0.3%F.S
    Hysteresis 0.1%F.S
    Repeatability 0.1%F.S
    Creep(30mins) 0.1%F.S
    Temperature Sensitivity Drift 0.05%F.S/10ā„ƒ
    Zero Temperature Drift 0.05%F.S/10ā„ƒ
    Response Frequency 10KHz
    Material Alloy Steel
    Impedance 350/700Ī©
    Insulation Resistance ā‰„5000MĪ©/100VDC
    Operating Voltage 5-15V
    Operating Temperature Range -20~80ā„ƒ
    Safe Overload 120%
    Limit Overload 150%
    Cable Wire Specification Ļ†5*3m
    Cable Limit Tensile Strength 10kg
    TEDS Optional
    Application
    Reaction torque sensor of torque wrench

    Torque Wrench

    Reaction torque sensor of valve

    Valve

    Reaction torque sensor of transmission

    Transmission

    FAQ
    āÆ

    Reaction torque sensor is a kind of torque detection equipment based on Newton's third law. It does not directly contact with the rotating shaft, but installed in the motor, engine and other power sources and the fixed base between, through the perception of the power source when working on the fixed base of the reaction torque to indirectly converted to the actual torque output of the rotating shaft value, its own in the working process to maintain a stationary state.

    āÆ

    When a power source, such as a motor or engine, drives a shaft to rotate and output torque to a load, the shaft generates an equal and opposite reaction torque on the power source itself. A reaction torque transducer is mounted between the power source and a fixed base. The elastic element within it undergoes a slight deformation in response to this reaction torque. The sensor then converts this deformation into a corresponding electrical signal. Ultimately, through signal processing, the actual torque output of the rotating shaft is calculated.

    āÆ

    Rotary torque sensors are directly connected in series to a rotating shaft, rotating synchronously with the shaft and measuring the dynamic torque by sensing the deformation of the shaft, suitable for real-time monitoring of the torque of rotating parts. Reaction torque sensors are fixed between the power source and the base, and indirectly convert torque by sensing the reaction torque generated by the power source, which is more suitable for scenarios where the power source is fixed and the torque changes are smooth.

    1 review(s)
    5.0 1
    Write your own review Close
    *
    *
    Bradley | 5/25/2026 12:57 AM
    No-brainer reaction torque sensor, zero fuss setup
    Needed a rugged reaction torque sensor for a static load verification rig. Went with the 0-20 Nm version. Heavy little thing for the price, body feels tough as nails. Signal tracking is bang on, didn't give me a single headache during the installation this morning. Pretty happy with it.
