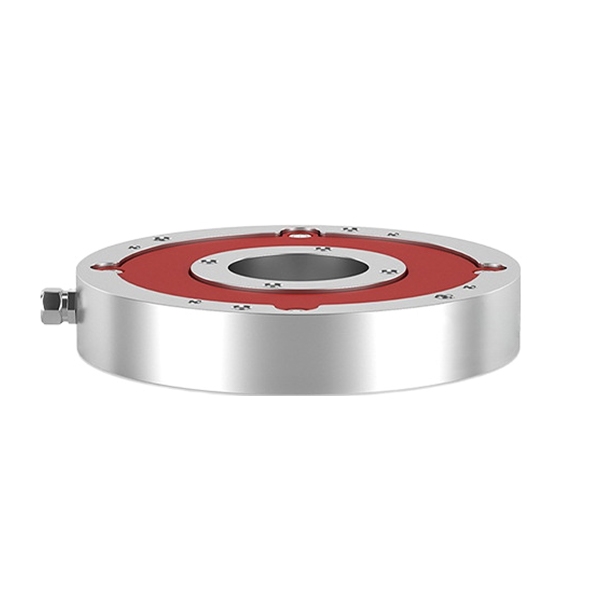

Static Flange Torque Sensor, 50-1000 Nm

Safe overload is the maximum load the sensor can withstand long-term without affecting accuracy or causing permanent performance damage. Limit overload is the maximum instantaneous damage threshold; exceeding this value will cause deformation of the elastic element or circuit damage and must be strictly avoided.

Small error, with a non-linearity error of only 0.2% F.S, resulting in high data fitting accuracy. Strong stability, low creep, and minimal long-term measurement drift. With a wide range of applications, IP65 provides complete dust and low-pressure water protection, and with a wide temperature range of -20~65℃, it can be adapted to various environments such as industrial workshops, outdoor testing benches, and automotive parts testing.

• Temperature fluctuations: Exceeding the compensation range requires the installation of insulation or heat dissipation devices.
• Installation issues: Poor flange alignment can cause residual stress, requiring recalibration of coaxiality.
• Electrical interference: Check for proper grounding; interference can be reduced by using shielded cables.
