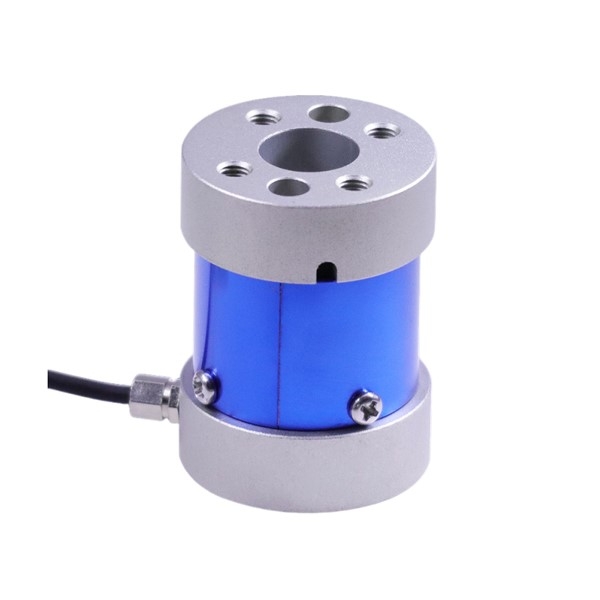

Micro Reaction Torque Sensor, 0.5-150 Nm

High quality micro reaction torque sensor for sale with ranges of 0.5 Nm, 1 Nm, 2 Nm, 10 Nm, 20 Nm, 30 Nm, 100 Nm to 150 Nm. Micro torque transducer is a reaction torque sensor for static torque measurements, which can measure both forward and reverse torque. SUCH micro reaction torque sensor is made of aluminum alloy with silicone sealing, 150% F.S safety overload, 200% limit overload, easy installation and reasonable force. Torque sensor capacity can be customized according to customer requirements.

Feature

• Portable Use: The miniature reaction torque sensor can be installed at any position and in any direction. Compact size, light weight, high precision, stable and reliable.
• Measurement Stability: The torque transducer can measure the static torque, with high detection accuracy, good stability, strong anti-interference ability, no need to repeatedly adjust the zero to continuously measure the static torque.
• High Quality Aluminum Alloy: All aluminum alloy material, strong mechanical fatigue resistance. It has the advantages of corrosion resistance, easy processing, high strength and low density.
• Industrial Strain Gauges: High measurement accuracy, can work in high temperature, low temperature, high pressure and other extreme environments. Good heat resistance, small creep, small thermal hysteresis, and good long-term stability.

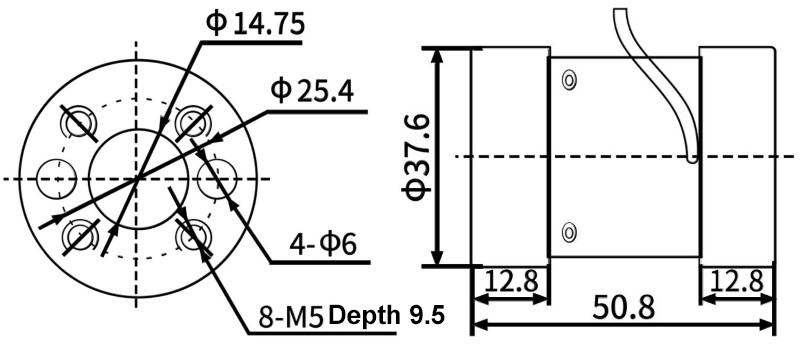

Dimension (Unit:mm)

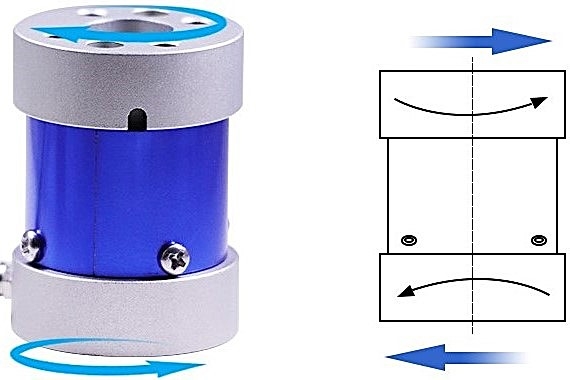

Force Mode

Wiring
