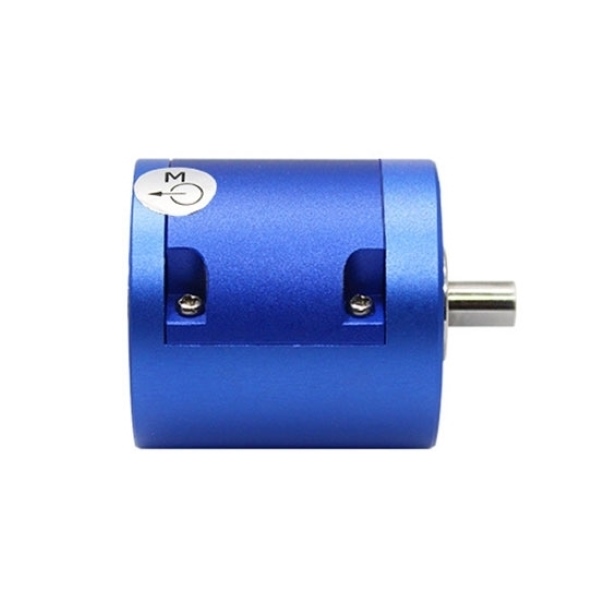

Small Rotary Motor Torque Sensor, 0.1-5 Nm

Reasonably priced small rotary motor torque sensor on sale. Motor torque transducer can measure static torque and rotating torque, and can measure torque in the range of 0-0.1/5Nm. SUCH small rotary motor torque sensor has a maximum speed of less than 3,000 rpm, with the advantages of good sensitivity and fast response time. The small rotary torque sensor has a response frequency of 1kHz and a response time of 1.0ms, and can be used at -20~80℃ and 0~85%RH.

Feature

• Portable Use: Measures both static and rotational torque. Small size, lightweight, baseless, and easy to install.
• Superior Material: Made of stainless steel, durable, rust-resistant, high-temperature resistant, wear-resistant, with high strength and toughness, good hardenability, and high fatigue resistance.
• High-Precision Strain Gauge: The rotary motor torque sensor uses industrial-grade high-precision strain gauges, offering high measurement accuracy, low creep, low thermal hysteresis, and good long-term stability.
• Wide Applications: The small rotary motor torque transducer can operate for extended periods, outputting positive and negative torque signals, suitable for testing rotating power equipment such as electric motors, engines, and internal combustion engines.

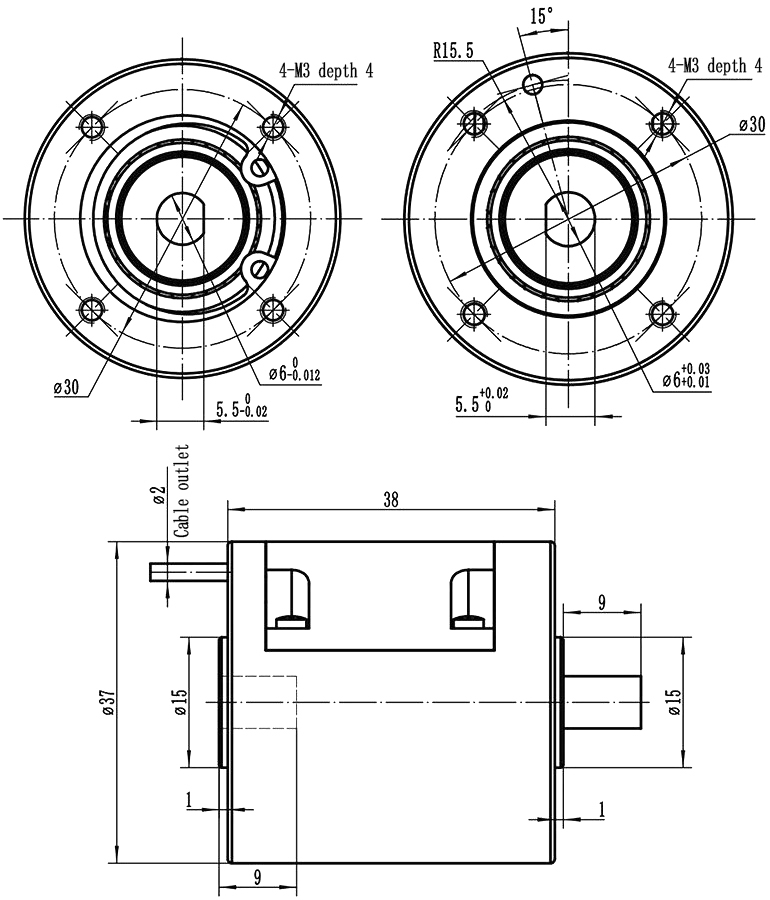

Dimension (Unit:mm)

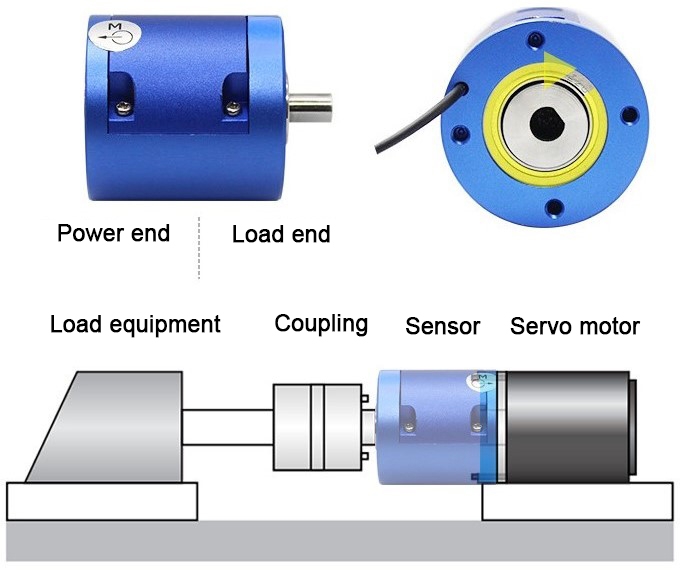

Installation
