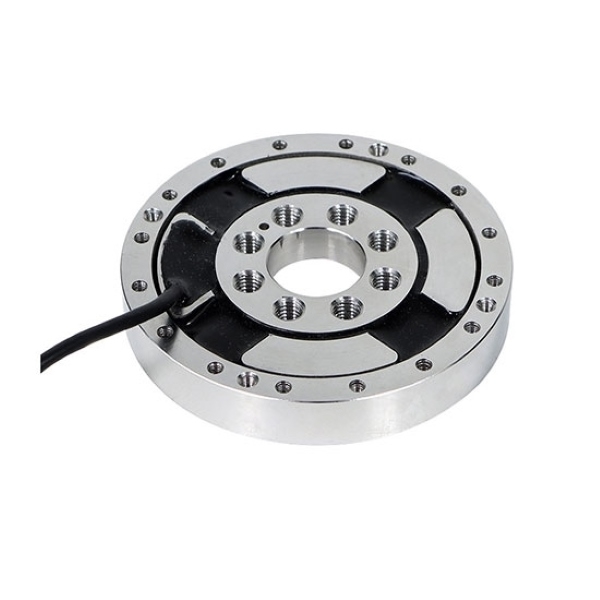

Force Torque Sensor, Ring Type, 20-200 Nm

Name: Force Torque Sensor, Ring Type, 20-200 Nm
Brand: Such.com
SKU: SUCH-TQS-105
Price: 246.19 USD
Availability: InStock

0 review(s) | Add your review

SKU: SUCH-TQS-105

$246.19

● Measuring range 0-20/30/50/100/200 Nm optional ● Ring double flange construction, stainless steel ● Suitable for measuring discontinuous rotational torque values ● Safe overload 150%, limit overload 200%

Capacity *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

High-precision ring type torque sensor for sale, with flange mounting. The SUCH force torque sensor is a static torque sensor with a capacity of 0-20/30/50/100/200 Nm. It can be used to measure static, discontinuous rotational torque values and is suitable for torque force measurement in robotic arm joints, force detection, force analysis and testing instruments, etc. The force torque transducer features high accuracy, strong anti-interference capability, IP65 protection rating, and can be used in temperatures ranging from -20℃ to 80℃.

Feature

Force torque sensor feature

High-quality Stainless Steel: The ring-shaped force torque sensor is made of high-quality 17-4PH stainless steel, possessing high strength and high toughness.
Robust and Durable: Rust-resistant, high-temperature resistant, and wear-resistant. The transducer has a high fatigue limit and resistance to repeated impacts, and exhibits good low-temperature impact toughness.
Wide Range of Applications: Suitable for disc-type connections, torque measurement of robotic arm joints, force detection and analysis, and measurement of torque values in discontinuous rotation.

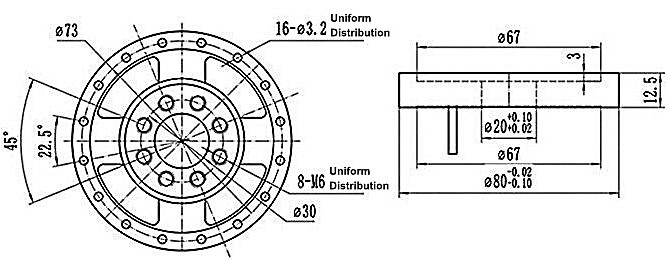

Dimension (Unit:mm)

Force torque sensor size

Force Mode

Force torque sensor force mode

Wiring

Wiring of torque sensor

Specs

Capacity	0-200 N.m
Rated Output	1.5±0.5%
Zero Balance	±0.5%F.S.
Non-Linearity	±0.5%F.S.
Hysteresis	±0.5%F.S.
Repeatability	±0.5%F.S.
Creep	0.3%F.S.(30min)
Temp Effect on Output	0.3%F.S./10°C
Temp Effect on Zero	0.1%F.S./10°C
Response Frequency	10kHz
Material	Aluminum alloy/alloy steel
Impedance	700±5Ω
Insulation	≥5000MΩ/100V DC
Working Voltage	5-15V
Operating Temp Range	-20°C-80°C
Safe Overload	150%
Maximum Overload	200%
Cable Specifications	3x2m
Cable Ultimate Pull	10kg
TEDS	Contact us

Application

Robot Joint

Robot Arm

Bolt

FAQ

Q1: What is a force torque sensor? ❯

A force torque sensor is a device that measures linear forces and rotational torques acting on an object, enabling precise monitoring of the magnitude of thrust, tension, or torsional forces acting on a system.

Q2: How to check a torque sensor? ❯

To check a torque sensor, apply a known torque value and compare the sensor's output to the expected reading. Verify that it responds accurately across its entire range, returns to zero when no torque is applied, and that hysteresis or drift is minimal.

Q3: Are torque sensors and torque transducers the same? ❯

Yes, torque sensors and torque transducer are essentially the same. Both measure rotational force (torque) and convert it into an electrical signal for monitoring or control.
