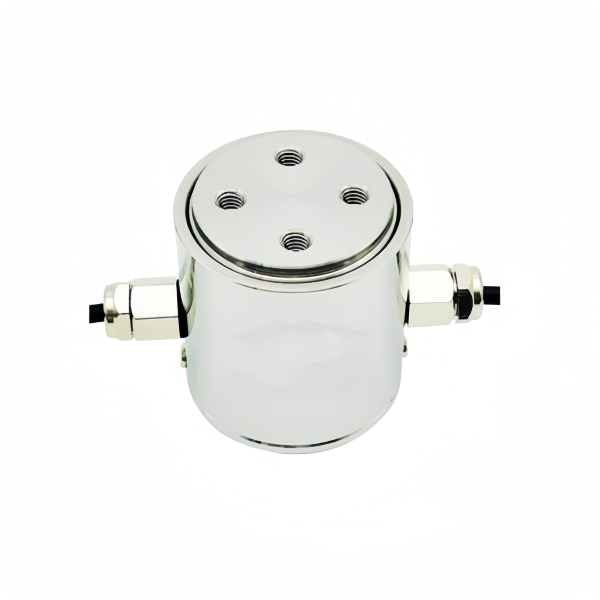

Force and Torque Sensor, 0-6 Nm

The force and torque sensors sell at a low price, with a measuring range of 0-6 Nm for Mz and 0-700 N for Fz. SUCH force and torque sensors detect Z-axis tensile force and Z-axis static torque force, with an output sensitivity of 1.0±10% mV/V, a non-linearity of 0.3% F.S, and a temperature compensation of -10°C to 60°C. The force and torque measurement sensors are made of stainless steel with a protection rating of IP65, and can be used at temperatures of -20°C to 80°C.  The force and torque transducers are made of stainless steel with IP65 protection and can be used at temperatures from -20℃ to 80℃.

Feature

• The force and torque sensor is made of stainless steel, featuring a low profile and robust durability.
• It can detect Z-axis tensile and compressive forces as well as Z-axis static torque, with forces acting on both the upper and lower planes. It is easy to install and has strong resistance to off-center loads.
• The force and torque transducer has a wide range of applications, including robotic arms, 3C product testing, automotive press assembly, and new energy fields.

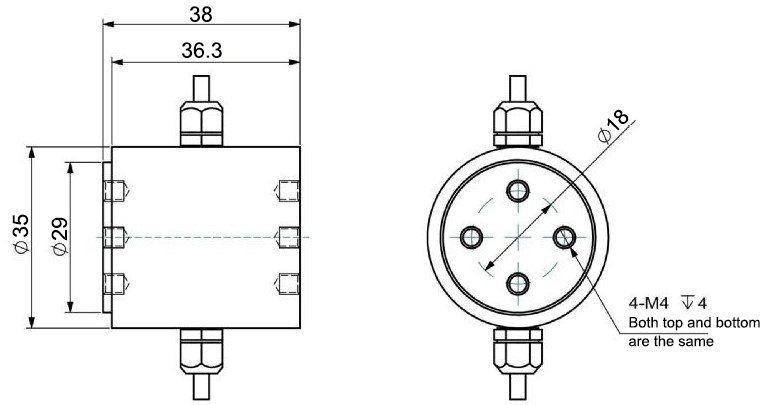

Dimension (Unit:mm)

Force Mode

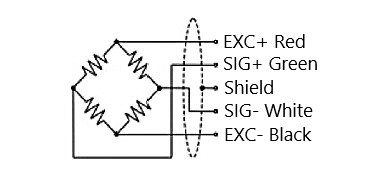

Wiring
