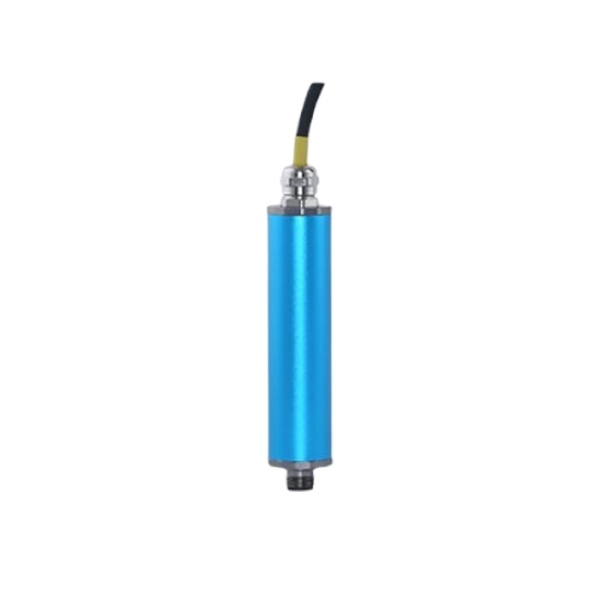

High Precision Torque Sensor Signal Amplifier, RS485/0-5V/0-10V/4-20mA

0 review(s) | Add your review

SKU: SUCH-TQS-FD01

$126.98

● Output RS485/0-5V/0-10V/4-20mA selectable ● Input signal 0.8~2mV/V ● Supply voltage 12~28V DC ● Protection class IP67

Output Signal *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Factory direct sale low price high precision torque sensor signal amplifier. The signal amplifier is used for torque sensor signal amplification, which can improve the anti-interference of the torque sensor, and supports RS485, 0-5VDC, 0-10VDC and 4-20mA outputs. SUCH torque sensor signal amplifier's power supply voltage ranges from 12~28VDC, and the input signal ranges from 0.8~2mV/V. The working temperature range is from 0~60℃, the relative humidity range is from 0%~95%, and the RS485 transmission distance is up to 1000 meters. The operating temperature range is 0-60℃, the relative humidity range is 0%-95%, and the RS485 transmission distance is up to 1000 meters.

Feature

Extended Transmission Distance: Improved interference immunity of the torque sensor and enhanced signal strength support longer transmission distances without loss of data integrity.
Multiple Output Options: The signal amplifier supports RS485, 0-5V, 0-10V, and 4-20mA output signals, compatible with various systems and devices.
Wide Voltage Support: The high-precision torque sensor signal amplifier can operate effectively under various power supply voltages, providing greater flexibility.

Dimension (Unit:mm)

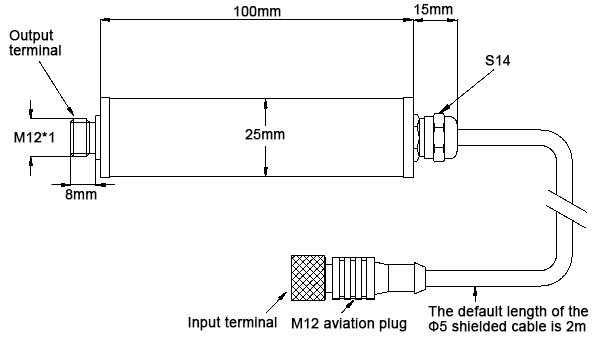

Torque sensor signal amplifier size

Wiring

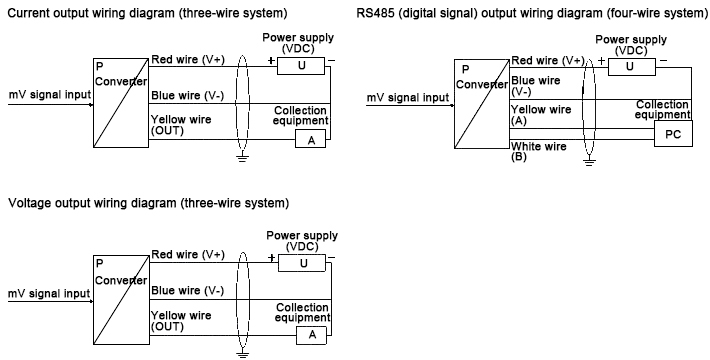

Torque sensor signal amplifier wiring

Specs

Input Side
Sensor Power Supply	3.3V <20mA
Power Supply Voltage Temperature Coefficient	<25ppm/K (reference temperature 23°C)
Input Signal	0.8~2mV/V
Input Impedance	10⁹Ω
Attached Cable Length	2m
Environmental Temperature
Operating Temperature	0~60°C
Operating Humidity	0%~95%RH (Non-condensing)
Total Weight	≈160g (including 2m cable)
Material
Material (Housing)	6061 Aluminum
Connector Material	Inner: PUR Polyurethane
	Outer: PVC Polyvinyl Chloride (Black)
	Pin Material: Copper Alloy
	Locking Mechanism: Yellow Copper Lock
	Sealing Material: FKM (Fluoroelastomer)
Cable Material	PUR Polyurethane (Black), 5-core shielded cable Ø4±0.2mm

Output Side
Output Signal	RS485	0~5VDC
Supply Voltage	12~28VDC	12~28VDC
Linearity	<0.02%	<0.02%
Output Impedance	/	<1Ω
Temperature Drift	≤0.02%FS/10K (23°C reference)	≤0.02%FS/10K
Standard Load	/	≥10kΩ
Residual Ripple	≤100mV	≤100mV
Residual Ripple at 400Ω	≤10mV	≤10mV
Power Circuit Max Current	30mA	30mA
Max Transmission Distance	≤1000m	≤10m
Response Frequency	≤10Hz	≤30Hz

Output Side
Output Signal	0~10VDC	4~20mA
Supply Voltage	12~28VDC	12~28VDC
Linearity	<0.02%	<0.02%
Output Impedance	<1Ω	/
Temperature Drift	≤0.02%FS/10K	≤0.02%FS/10K
Standard Load	≥10kΩ	≤400Ω
Residual Ripple	≤100mV	≤10mV
Residual Ripple at 400Ω	≤10mV	≤10mV
Power Circuit Max Current	30mA	30mA
Max Transmission Distance	≤10m	≤100m
Response Frequency	≤30Hz	≤30Hz

Application

Industrial Automation

Robot Control

Automotive Testing

FAQ

Q1: What is a torque sensor signal amplifier? ❯

A torque sensor signal amplifier is an electronic device used to amplify and condition the weak electrical signals output from a torque sensor. It converts millivolt-level signals into standard signals such as 0–5V, 0–10V, or 4–20mA for easier data acquisition and control.

Q2: What are the common output types of a torque sensor amplifier? ❯

Common output formats include analog signals (0–5V, 0–10V, 4–20mA) and digital signals (RS485). The choice depends on the data acquisition system and control requirements.

Q3: How to calibrate a torque sensor signal amplifier? ❯

Calibration involves applying known torque loads to the sensor and adjusting the amplifier’s gain or zero offset until the output matches the actual torque values. Some amplifiers have digital calibration functions for easier setup.
