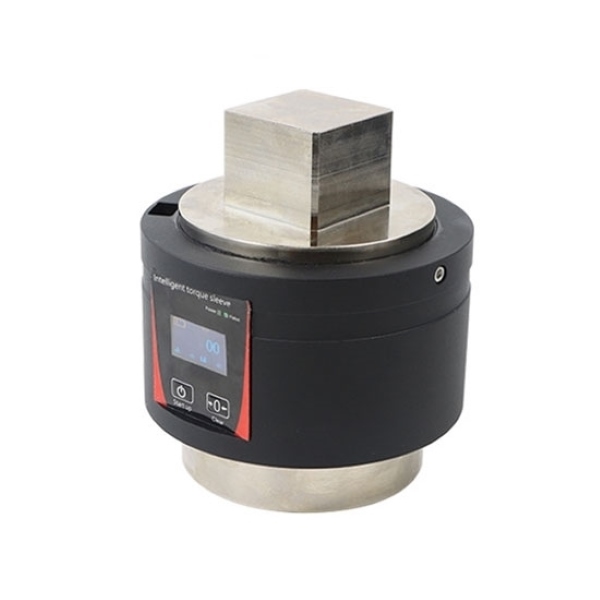

    Wireless Digital Rotary Torque Sensor, 500-3000 Nm

    0 review(s) | Add your review
    SKU: SUCH-TQS-209
    $3,187.69
    ● Measuring range 500-3000 Nm selectable ● Display range -99,999-99,999 ● Response time 1ms (50% response) ● Safe overload 120%, limit overload 150%
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Buy wireless digital rotary torque sensors with optional measuring ranges of 500/1000/1500/2000/3000Nm. SUCH rotary torque sensor with a smart sleeve can measure both static and rotating torque. The sleeve can display torque in real time with real time torque and peak torque switching display. The digital rotary torque transducers have output sensitivity up to 1.0-2.0mV/V for long term stable torque data communication transmission.

    Feature

    • High Precision: Torque accuracy up to ±0.5% F.S, minimal drift, high sensitivity, and good stability.
    • Portable Use: The wireless digital rotary torque sensor can measure both static and rotary torque and can be used in environments ranging from -20°C to 80°C.
    • Intelligent Display: The Bluetooth intelligent torque sleeve is equipped with a display screen that shows the torque in real time, with the option to switch between real-time torque and peak torque display.

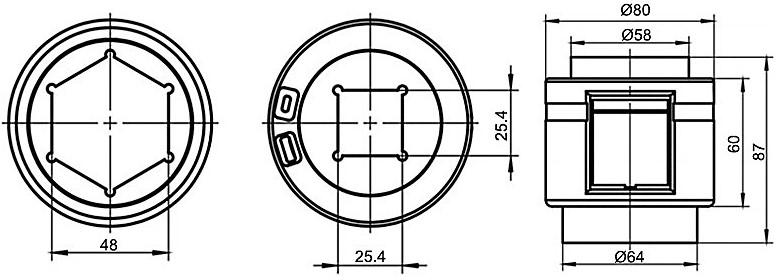

    Dimension (Unit:mm)

    Wireless torque sensor size

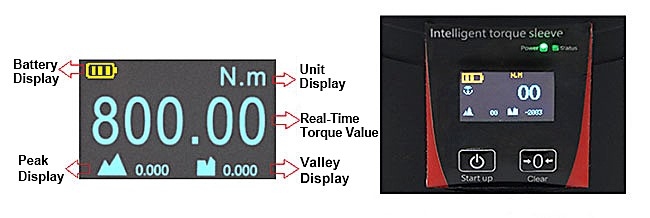

    Display Instruction

    Wireless torque sensor display instructions

    Tips:

    • When the torque sensor is off, press and hold the power button to turn it on.
    • While the sensor is running, press and hold the power button to enter the shutdown interface and wait 5 seconds for automatic shutdown.
    • Press and hold the zero button to reset the displayed value to zero.

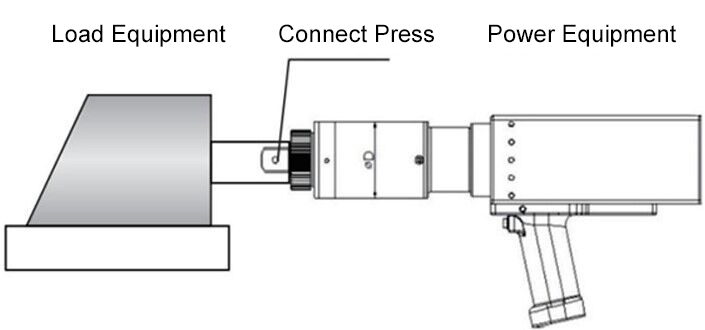

    Installation

    Wireless torque sensor installation

    Specs
    Torque Sensor
    Capacity 500/1000/1500/2000/3000 N.m (optional)
    RPM Signal 1.0-2.0mV/V
    Zero Output ±2%F.S
    Non-linear 0.5%F.S
    Hysteresis 0.5%F.S
    Repeatability 0.2%F.S
    Creep 0.05%F.S (30 minutes)
    Temperature Sensitivity Drift 0.05%F.S/10°C
    Temp Effect on Zero 0.1%F.S/10°C
    Response Time 1.0 ms (50% response)
    Response Frequency 1 kHz
    Display Range 99999~99999
    Material Stainless steel/42CrMoA
    Annual Stability 0.3%/year
    Insulation Resistance >2000 MΩ/100V DC
    Operating Environment -10°C~50°C, 0~85%RH
    Safety Overload 120%R.C.
    Maximum Overload 150%R.C.
    Wireless Receiver
    Non-linear 0.01%
    Accuracy 0.1%
    Display Resolve -9999~99999
    Temperature Drift 20ppm
    Wireless Upload Rate 15Hz
    Communication Distance 10m
    Charging Time 3 hours, continuous operation for 12 hours on a full charge
    Application
    Rotary torque sensor of blender

    Blender

    Rotary torque sensor of conveyor belt

    Conveyor Belt

    Rotary torque sensor of generator

    Generator

    FAQ
    ❯

    Wireless digital rotary torque sensors are suitable for a variety of tools, such as torque wrenches, pneumatic tools, pulse tools, and hydraulic torque wrenches. They can be applied in industrial production scenarios such as torque detection, quality control, and tool calibration, for example, in the automotive manufacturing and machining industries for precise measurement and monitoring of tool torque.

    ❯

    Smart sleeve typically has a real-time digital display function, directly displaying the tightening torque on the socket, and allowing selection and switching between real-time torque and peak torque display. In addition, a smart sleeve may also have some intelligent control and data processing functions for convenient user operation and monitoring.

    ❯

    A torque sensor with a certain protection rating should be selected. At the same time, ensure that the sensor interface is well sealed to prevent moisture intrusion. If the ambient humidity is high, consider using a dehumidifying chamber or similar equipment to store and protect the sensor.
