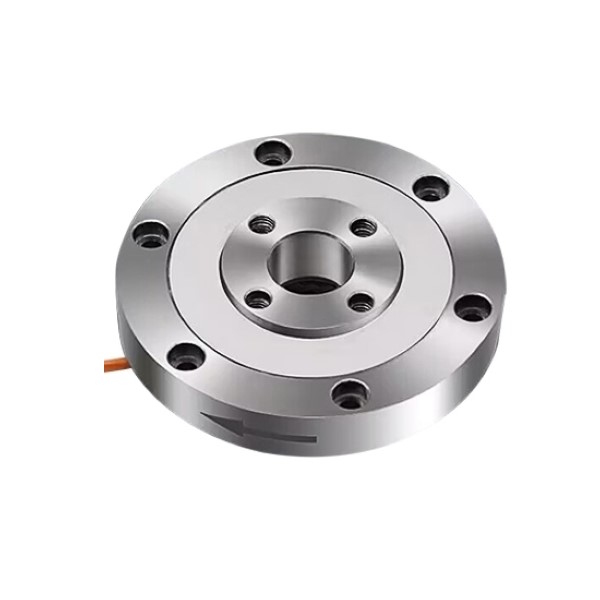

    Hollow Reaction Torque Sensor, Disc Type, 10-200 Nm

    0 review(s) | Add your review
    SKU: SUCH-TQS-NJY65
    $330.61
    ● Measuring range 0~10/30/50/100/200 Nm ● Sensitivity 1.5-2.0 mV/V ● Bridge voltage 5-12VDC ● Made of stainless steel material
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    High-quality hollow reaction torque sensors are available in 0-10/30/50/100/200 Nm ranges. The static torque transducer features a hollow disc design, providing precise and accurate torque measurement. SUCH hollow reaction torque sensors have a bridge supply voltage of 5-12 VDC, a safe overload of 120% F.S, a sensitivity of 1.5-2.0 mV/V, and good hysteresis and repeatability.

    Feature

    • Easy Installation: Hollow reaction torque sensors feature a compact, disc-shaped design, making them easy to install.
    • Low Maintenance: Compared to dynamic torque sensors, static torque sensors typically have fewer moving parts and require less frequent maintenance and inspection.
    • Durability: Static torque sensors are constructed of stainless steel and are designed to withstand harsh conditions, making them durable in demanding environments.

    Dimension

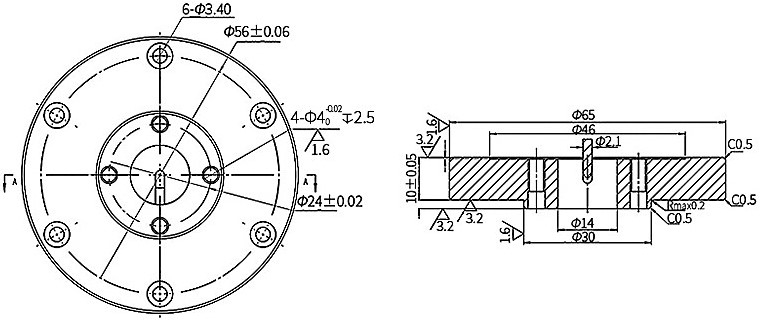

    Hollow reaction torque sensor dimension

    Wiring

    Hollow reaction torque sensor wiring

    Specs
    Sensitivity 1.5-2.0 mV/V
    Material Stainless steel
    Non-Linearity ≤±0.5% F. S
    Repeatabilit ≤±0.5% F. S
    Creep ≤±0.3% F. S/30 min
    Zero Temperature Drift ≤±0.05% F. S/10°C
    Sensitivity Temperature Drift ≤±0.05% F. S/10°C
    Working Temperature -20°C~60°C
    Input Impedance 380±30Ω/730±30Ω
    Output Impedance 350±2Ω/700±3Ω
    Insulation Resistance ≥5000MΩ/100VDC
    Safety Overload 120% F. S
    Bridge Voltage 5-12VDC

    PDF computingHollow Reaction Torque Sensor User Manual

    Application
    Reaction torque sensor of torque wrench

    Torque Wrench

    Reaction torque sensor of valve

    Valve

    Reaction torque sensor of transmission

    Transmission

    FAQ
    ❯

    Yes, a reaction torque sensor is a static torque sensor. They are used to measure the reaction torque generated on a non-rotating shaft or fixed component. These sensors do not rotate with the shaft, but instead output a torque signal by detecting torsional deformation at the fixed end.

    ❯

    A hollow reaction torque sensor is a type of static torque sensor designed with a through-hole or hollow shaft, allowing it to measure torque on rotating or stationary components without interrupting the shaft or cable passage.

    ❯

    The hollow structure allows easy installation on existing shafts, pipes, or motor spindles. It reduces the need for coupling and provides a compact, lightweight solution ideal for space-limited applications.
