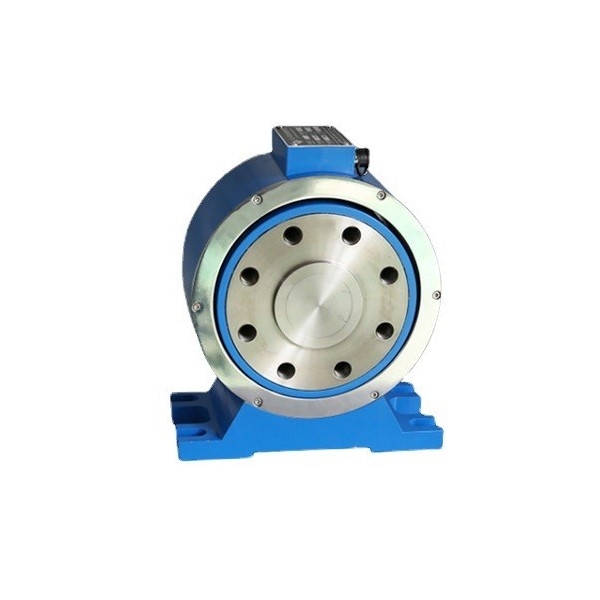

Rotary Torque Sensor for Engine, 20-5000 Nm

Name: Rotary Torque Sensor for Engine, 20-5000 Nm
Brand: Such.com
SKU: SUCH-TQS-ZJ-AF
Price: 2252.98 USD
Availability: InStock
Rating: 5.0 (1 reviews)

1 review(s) | Add your review

SKU: SUCH-TQS-ZJ-AF

$2,252.98

● Optional capacity range 20/100/500/1000/5000 Nm ● Sensitivity 1±0.2 mV/V, protection class IP65 ● 10kHz±5kHz/4-20mA/0-5V/0-10V/RS485 output ● Max. speed 6000 rpm, speed signal 60-2000 pulse/turn

Capacity *
Accuracy *
Power Supply *
Output Signal *

Qty:

🚚 Free shipping

🕒 Delivery date: 30-40 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Buy a rotary torque sensor for engine, with optional capacities ranging from 20 Nm, 50 Nm, 100 Nm to 5000 Nm. SUCH rotary torque sensors feature flanged input and output connections, eliminating the need for bearings. They are suitable for applications with high speeds or short shafts, such as engines, motors, generators, and other rotating power equipment. The non-contact torque transducer boasts a sensitivity of 1±0.2 mV/V and a stability of 0.3%F.S/year. It also has an IP65 protection rating, making it highly responsive and durable. Torque sensor capacity can be customized according to customer requirements. You can purchase a signal converter with 4-20mA/ 0-5V/ 0-10V output or RS485 communication for use with the rotary torque sensor.

Feature

Rugged and Durable: The housing is made of alloy steel, has an IP65 protection rating, and can withstand a safe load of 150% F.S.
Portability of Use: Continuously measures forward and reverse torque without repeated zeroing. It can measure both static and dynamic torque.
Easy to Install: The rotary torque sensor for engine features a double-flange structure, making it compact, lightweight, and easy to install.

Dimension (Unit:mm)

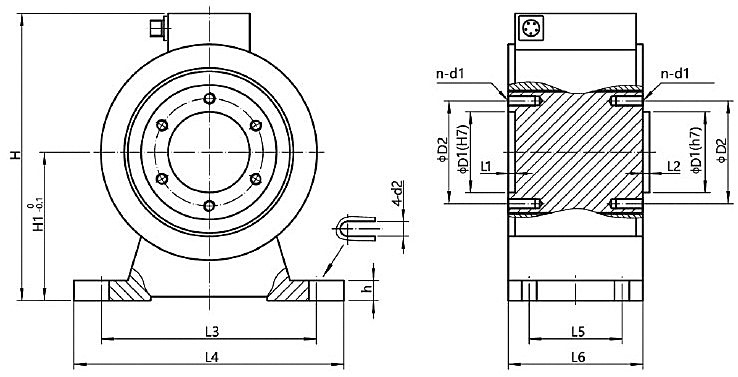

Rotary torque sensor dimension

Number	Capacity Range
No.1	20Nm
No.2	50Nm
No.3	100Nm
No.4	200Nm
No.5	500Nm
No.6	1000Nm
No.7	2000Nm
No.8	5000Nm

Size	No.1	No.2	No.3	No.4
H	185	185	185	195
H1	100	100	100	105
D1	52	52	52	52
D2	66	66	66	66
n-d1*Depth	6-M6*10	6-M6*10	6-M6*10	6-M8*12
L1	2	2	2	3
L2	2	2	2	3
L3	115	115	115	125
L4	135	135	135	150
L5	45	45	45	60
L6	80	80	80	90
d2	7	7	7	7
h	12	12	12	12

Size	No.5	No.6	No.7	No.8
H	205	213	213	286
H1	105	110	110	150
D1	55	60	60	80
D2	70	80	80	136
n-d1*Depth	8-M8*12	8-M10*16	8-M10*16	8-M16*25
L1	3	5	5	5
L2	3	5	5	5
L3	130	160	160	210
L4	160	200	200	250
L5	60	70	70	80
L6	90	100	100	120
d2	9	11	11	17
h	15	15	15	20

Details

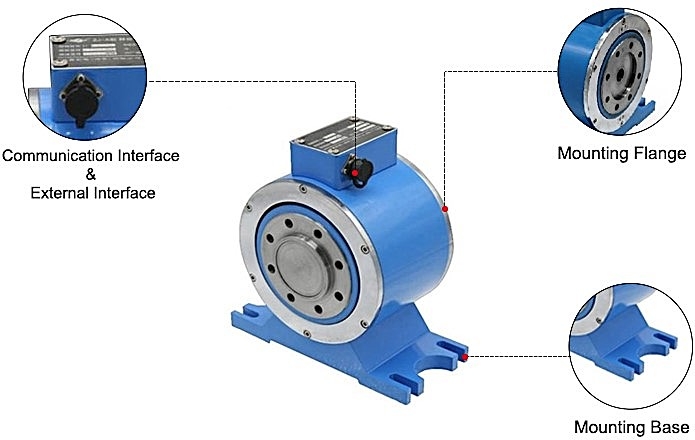

Rotary torque sensor details

Specs

Rotary Torque Sensor
Shipping Weight	12~45kg
Capacity Range *	0-20 Nm ~ 0-5000 Nm
Accuracy *	0.2%F.S, 0.1%F.S
Power Supply *	±15V ±5% DC (≥50mA), 24V DC
Output Signal *	10kHz±5kHz, 4-20mA, 0-5V, 0-10V (add signal converter), RS485
Speed Signal	60-2000 pulse/turn
Max. Speed	6000 rpm
Temperature Drift on Zero	＜0.1%F.S/10°C
Operating Temperature	-20°C~+70°C
Humidity	≤90%RH
Insulation Resistance	＞500MΩ
Stability	0.3%F.S/year
Safety Overload	150%F.S
Breaking Load	200%F.S
Sensitivity	1±0.2 mV/V
Power Consumption	4W
Bridge Voltage	DC 10V
Material	Alloy steel
Protection Class	IP65
Electrical Connection	Circular connector
Wiring	Red: V+, Blue: V-, Green: Speed output, Yellow: Torque output, Black: GND
Cable Length	2m (Φ5mm), or other customizable lengths
Signal Converter
Power Supply	±15V DC, 24V DC (±0.4V)
Power Supply Dissipation Power	Less than 1W
Response Time	≥100mS
Conversion Accuracy	±0.1%F.S
Signal Input	Optoelectronic isolation. It is used with rotary torque sensor.
F/V Signal Output	0-5V, 0-10V
F/I Signal Output	4-20mA
Operating Temperature	-20°C~+60°C
Humidity	0-90%RH
Wiring	±15V DC: Red: V+, Blue: V-, Green: Speed output, Yellow: Torque output, Black: GND 24V DC: Red: 24V DC, Blue: Signal-, Green: Speed output, Yellow: Torque output, Black: GND
Overall Dimension (mm)	1589555 (LWH)
Istallation Dimension (mm)	143*43, 4-M3

PDF computing Rotary Torque Sensor User Manual

Application

Blender

Conveyor Belt

Generator

FAQ

Q1: What is a rotary torque sensor? ❯

A rotary torque sensor is a device used to measure the torque applied to a rotating shaft. It converts mechanical torque into an electrical signal for monitoring and control in systems like motors, gearboxes, or pumps.

Q2: How often should you recalibrate a torque sensor? ❯

Torque sensors are typically recalibrated once a year, but the interval may be shorter if the sensor is used frequently, under heavy loads, or in harsh environments. Regular calibration ensures accuracy and reliability.

Q3: What factors can affect the output signal of a torque sensor? ❯

Shaft eccentricity or improper installation, vibration or mechanical shock, temperature fluctuations, electromagnetic interference or power supply fluctuations, and sensor aging or overloading.
