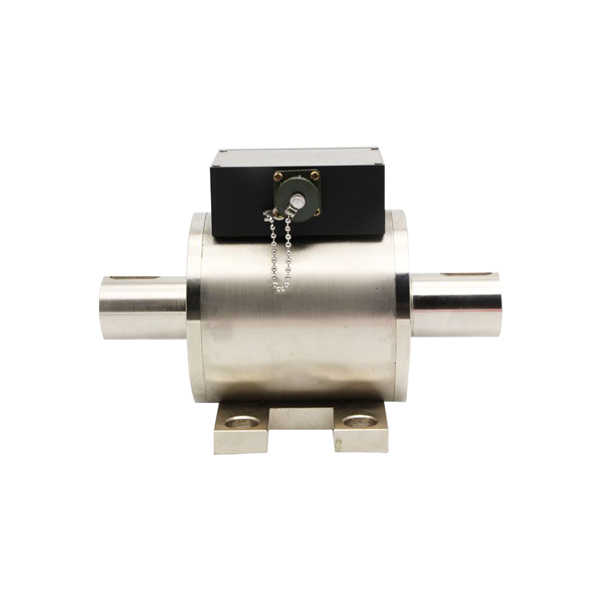

Dynamic Rotating Torque Sensor, 5-10000 Nm

SKU: SUCH-TQS-GTS200

$1,365.88

● Measuring range 5-10000 Nm optional ● Frequency response 100μs ● Supply voltage ±15V DC/24V DC selectable ● Storage temperature -10°C~50°C

Capacity *
Power Supply *
Signal Output *
Speed Output *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The high-performance dynamic rotating torque sensor offers a measurement range of 5-10000 Nm. Made of 40CrMo alloy steel, the SUCH dynamic rotary torque sensor features a seven-pin aviation connector and can measure the torque of rotating power equipment such as electric motors, engines, and internal combustion engines. The rotating torque transducer has a response frequency of 100μs, a power supply voltage of ±15V DC/24V DC optional, and frequency signal output options of 5KHz-15KHz/0-20mA/4-20mA/0-5V/0-10V/1-5V.

Feature

Portable Use: The dynamic rotary torque transducer features a seven-pin aviation connector, allowing connection to a torque meter to display torque, speed, and power values.
Rugged and Durable: Constructed with professional 40CrMo alloy steel, the shaft's strength and toughness are enhanced, enabling it to withstand high loads, operate smoothly without vibration, and have a longer lifespan.
Widely Applicable: With a wide speed range, the rotating torque sensor can be used to detect the output torque and power of rotating power equipment such as electric motors, engines, and internal combustion engines.

Dimension (Unit:mm)

Rotating torque sensor size

Range (Nm)	5	10	200
Φd	18	18	28
ΦD2	78	78	92
A	8	8	8
B	72	72	72
C	122	122	123
E	31	31	41
F	61	61	61
G	100	100	100
H	54	54	60
H1	116	116	125
C1	90	90	90
E2	50	50	59
L	188	188	209
Key bhl*n	6625*1	6625*1	8735*1

Range (Nm)	500	1000	2000
Φd	38	48	48
ΦD2	96	106	106
A	8	12	12
B	72	69	69
C	124	126	126
E	55	70	70
F	61	78	78
G	100	120	120
H	65	68	68
H1	135	144	144
C1	90	90	90
E2	74	90	90
L	238	270	270
Key bhl*n	10850*2	14965*2	14965*2

Range (Nm)	3000	5000	10000
Φd	55	75	98
ΦD2	118	144	158
A	12	12	14
B	65	69	80
C	127	131	143
E	88	105	118
F	115	156	170
G	155	180	200
H	77	90	110
H1	170	185	214
C1	90	100	110
E2	123	139	155
L	311	347	389
Key bhl*n	161080*2	201495*2	2816115*2

Details

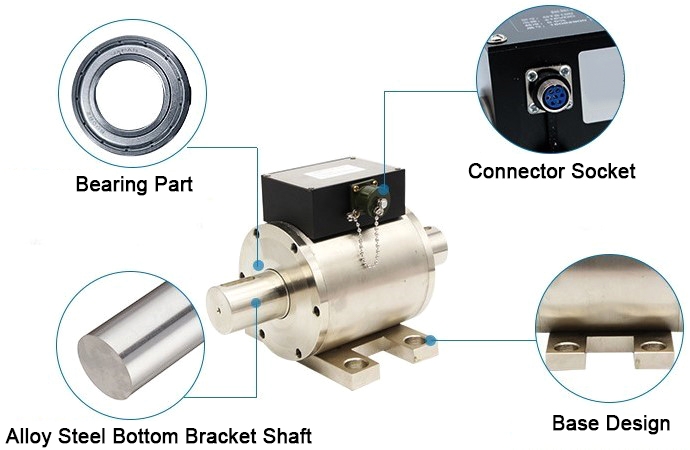

Rotating torque sensor details

Installation

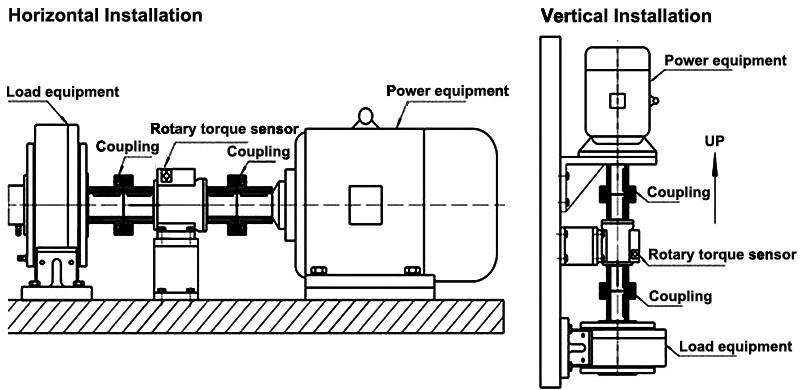

Rotating torque sensor installation

Specs

Torque Accuracy	<±0.5%F.S
Frequency Response	100μs
Nonlinearity	<±0.1%F.S
Repeatability	<±0.1%F.S
Hysteresis Zero-point Drift	<0.1%F.S
Zero-point Temperature Drift	<0.2%F.S
Storage Temperature	-10~50℃
Operating Temperature	<0.2%F.S/10℃
Power Supply Voltage	±15V DC/24V DC optional
Frequency Signal Output	5KHz-15KHz/0-20mA/4-20mA/0-5V/0-10V/1-5V optional
Speed Signal Output	60 pulses/revolution (0-5V/0-10V/4-20mA optional)

Application

Blender

Conveyor Belt

Generator

FAQ

Q1: What does a frequency response of 100μs mean for a dynamic rotating torque sensor? ❯

A frequency response of 100μs indicates the fastest response speed at which the dynamic rotating torque measurement sensor can capture torque changes. That is, the delay from a change in torque to the output of an accurate signal is only 0.1 milliseconds. This performance makes it particularly suitable for high-dynamic torque measurement scenarios.

Q2: What is the difference between the effects of storage temperature and operating temperature on a dynamic rotary torque sensor? ❯

Storage temperature refers to the ambient temperature range within which the dynamic rotary torque sensor is not in operation. Exceeding this range may damage internal electronic components or cause strain gauge failure. The effect of operating temperature refers to the measurement error caused by a 10°C change during operation being <0.2% F.S, reflecting the sensor's temperature compensation capability.

Q3: In which specific industries and scenarios are dynamic rotating torque sensors suitable? ❯

Automotive and New Energy: Engine and transmission torque testing; dynamic torque monitoring of electric vehicle drive motors.
Industrial Manufacturing: CNC machine tool spindle torque monitoring; torque measurement of automated tightening systems.
Energy and Power: Small wind turbine spindle torque measurement, diesel generator output torque detection. Robotics and Automation: Joint torque feedback for collaborative robots ensures operational safety and accuracy.

0 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5
