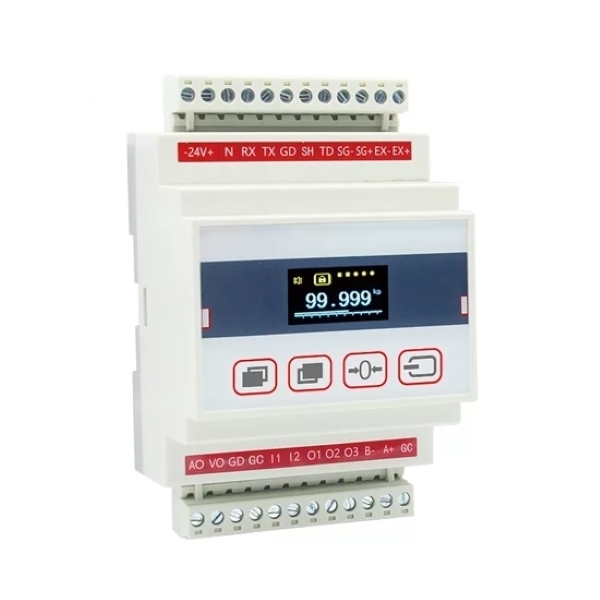

Torque Sensor Display Controller, RS485/0~10V/-5~+5V/4-20mA/RS232

0 review(s) | Add your review

SKU: SUCH-TQS-D056

$185.29

● Default configuration RS485 Interface ● Optional output 0~10V/-5~5V/4-20mA/RS232 ● Analog input signal range -15~15mV ● Supply voltage 12~30V DC,<5W

Output Signal *

Software *

USB to RS485 Cable +Software [+$195.79]

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Affordable price torque sensor display controllers are available for sale. The default configuration includes an RS485 interface, with optional transmission outputs of 4-20mA/0~10V/-5V~+5V/RS232 interface. The SUCH torque sensor display controller is specifically designed for torque sensors, enabling real-time measurement and monitoring. It features an analog input signal range of -15mV to 15mV, a sampling rate of 3200 times/s, and an overall accuracy of 0.1%.

Feature

Torque sensor display controller feature

Strong power supply and bridge voltage adaptability, supporting a wide voltage range of 12~30V DC, with low power consumption.
Excellent measurement accuracy, with an overall accuracy of 0.1% and a non-linearity error of only 0.02%, ensuring stable and reliable data output.
Highly efficient sampling, with a maximum sampling speed of 3200 times/s, supporting high-resolution displays of 999999 or 99.999.
Flexible communication output for the torque sensor display controller, with a default RS485 interface and optional signal outputs.
Wide environmental adaptability, with a convenient and fast OLED display, is suitable for various industrial applications.

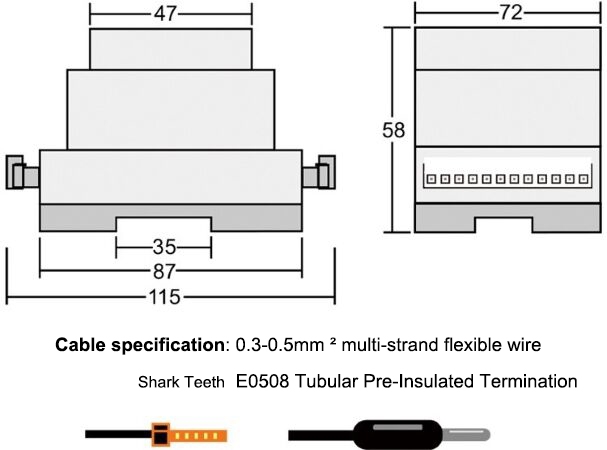

Dimension (Unit:mm)

Torque sensor display controller size

Details

Torque sensor display controller details

Wiring

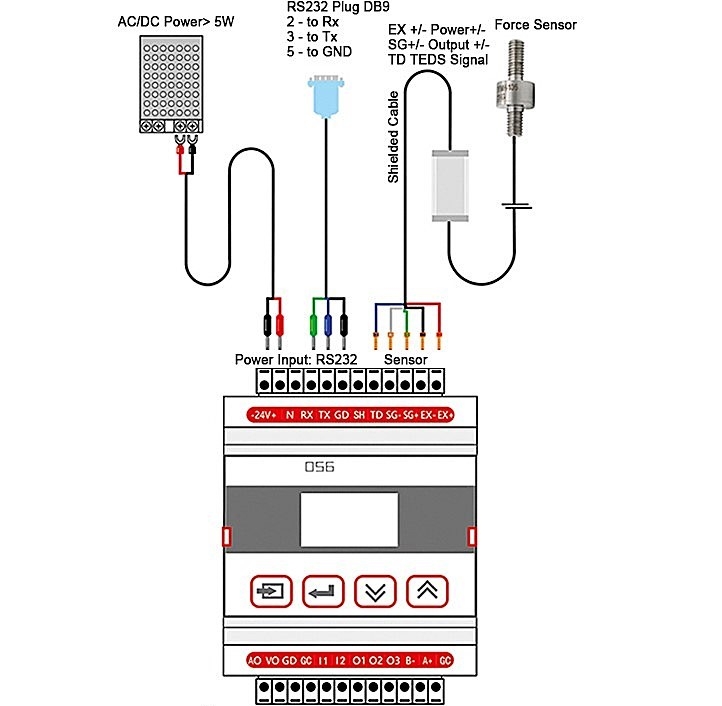

Wiring of torque sensor display controller

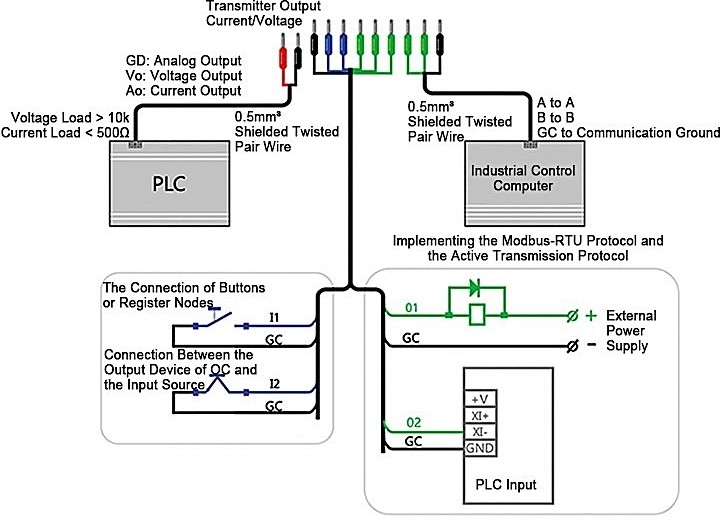

Wiring diagram of torque sensor display controller

Specs

Supply Voltage	12~30V DC, <5W
Supply Bridge Voltage	5V/100mA, Proportional Acquisition
Default Configuration	RS485 Interface (Modbus RTU Protocol)
Additional Transmission Output (Optional)	0~10 or -5~5V, 4-20mA, RS232 Interface
Comprehensive Accuracy	0.1%
Non-linearity	0.02%
Fastest Sampling Speed	3200 times/s
Analog Input Signal Range	-15~15mV
Display Graduation	999999 or 99.999
Temperature Drift	<20ppm
Relative Temperature	-20~70℃
Relative Humidity	<90%(No condensation)

Application

Blender

Conveyor Belt

Generator

FAQ

Q1: What are the advantages of the display controller for torque sensor? ❯

The torque sensor display controller offers high accuracy and flexible power supply/adaptation. It features fast sampling (3200 samples/s) and clear display. It offers multiple communication output options and strong environmental adaptability.

Q2: What are the environmental requirements for the torque sensor display controller? ❯

The operating temperature range is -20~70℃, and the relative humidity is <90% (non-condensing). It is suitable for most industrial workshops and laboratory environments. Avoid installation in flammable, explosive, highly corrosive, or heavily condensing locations to prevent equipment damage.

Q3: What are the suitable scenarios for the sampling speed of the torque sensor display controller? ❯

The sampling speed of 3200 times/s is suitable for scenarios requiring high response speed, such as dynamic torque monitoring and rapid load change testing, including motor starting torque testing and real-time force feedback control of automated equipment. It can accurately capture instantaneous torque fluctuations.
