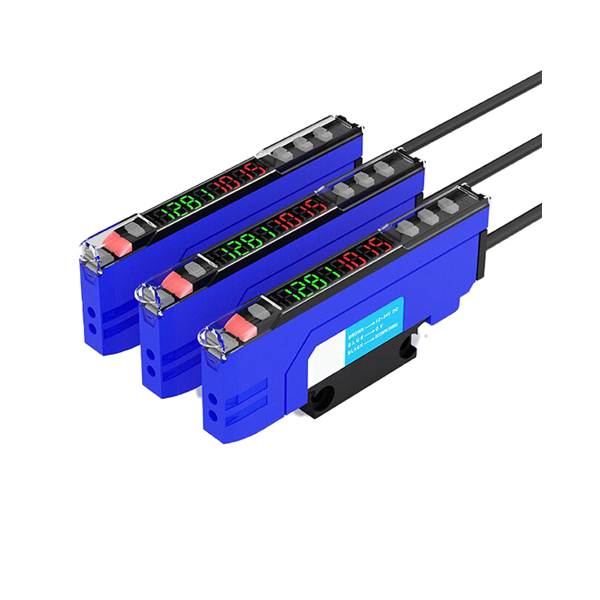

Digital Fiber Sensor Amplifier, NPN/PNP

SKU: SUCH-OPS-DA

$76.99

● NPN/PNP output mode ● Power Supply Voltage 12-24VDC ● 200mm diffuse reflection detection distance ● 1200mm through-beam detection distance

Output Mode *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Digital fiber sensor amplifier, NPN/PNP supports both output modes and operates on a 12-24VDC power supply. SUCH fiber sensor amplifier provides a 200 mm diffuse reflection detection distance and a 200 mm through-beam detection distance when paired with compatible fiber heads. The amplifier offers stable signal processing and is suitable for general industrial sensing applications.

Note: This amplifier needs to be used with fiber optic sensor.

Feature

Digital fiber sensor amplifier feature

Strong Anti-Interference: Supports stable operation with multiple units used together without mutual interference.
Delay Function: Allows adjustable delay settings to meet different application requirements.
Flexible Fine Adjustment: Light intensity can be finely adjusted to handle various transparent or opaque targets.
Good Compatibility: Works with most standard fiber optic cables and fits common installation environments.

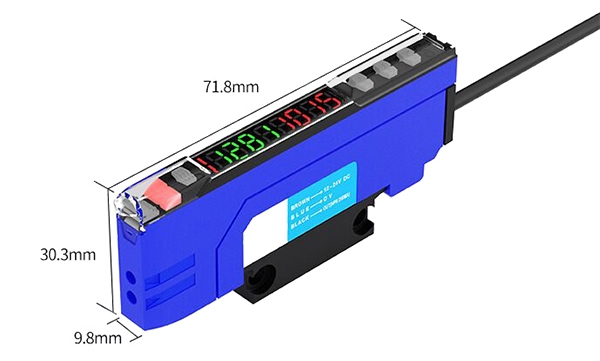

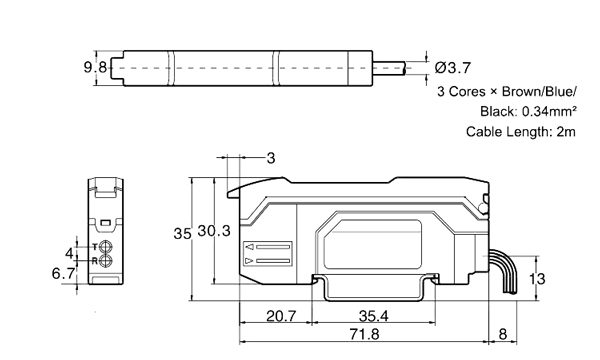

Dimension (Unit: mm)

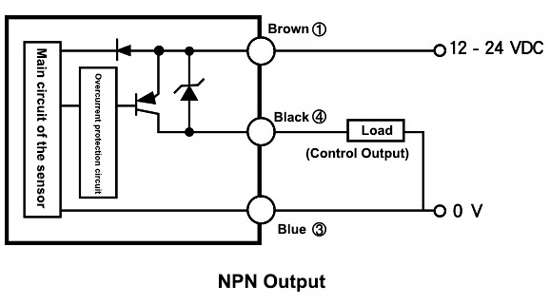

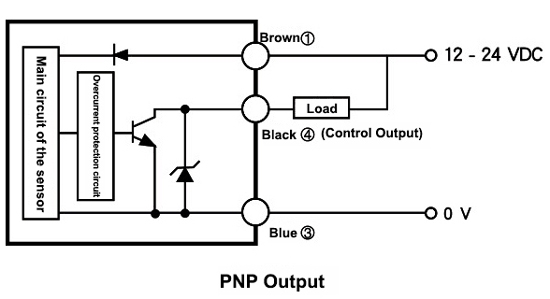

Wiring

Fiber optic amplifier sensor wiring color

Specs

Output Mode	NPN/PNP
Response Frequency	40KHz
Power Supply Voltage	12-24VDC
Current Consumption	<20mA
Size	71.8×30.3×10.5mm
Weight	50g
Operating Temperature	-10℃-50℃
Detection Distance	Diffuse reflection: 200mm Through-beam: 1200mm
Response Time	HSP: 25μs FINE: 50μs SUPR: 100μs MEGA: 200μs

Application

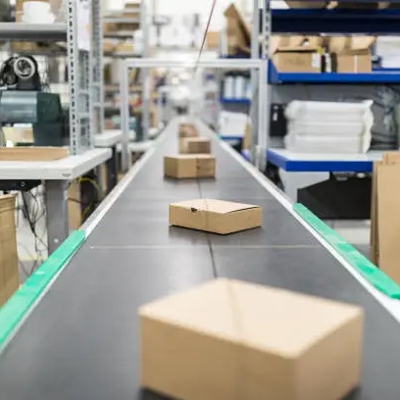

Packaging Equipment

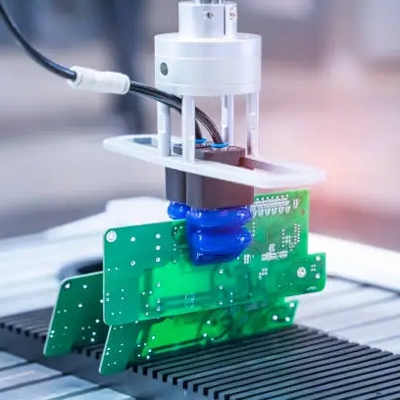

Electronics Manufacturing

Precision Part Detection

FAQ

Q1: Does ambient light affect detection performance? ❯

No, the amplifier uses optical filtering and digital processing to resist ambient light interference.

Q2: Can the amplifier handle high-speed detection? ❯

Yes, it is designed for fast response applications such as counting, positioning, and high-speed packaging.

Q3: Can the amplifier be used outdoors? ❯

Only if the amplifier is properly protected.
