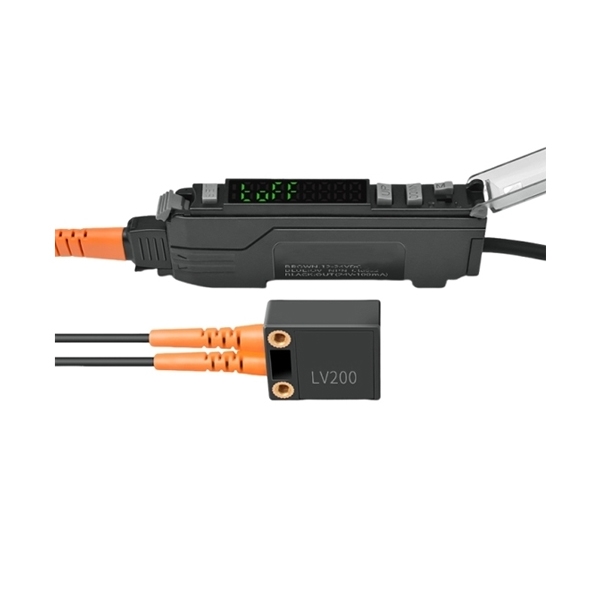

Laser Fiber Sensor Amplifier with Cable

Laser fiber sensor amplifier with cable delivers precise long-distance detection with a focused laser spot capable of identifying targets as small as 0.2 mm. It supports flexible light-intensity adjustment, five power modes, and multiple delay output settings to adapt to different detection environments. The amplifier features strong anti-interference performance with built-in short-circuit and overcurrent protection, ensuring stable operation even near optical, electromagnetic, or motor interference sources. With an NPN output method, 12-24 VDC operating voltage, IP65 protection rating, CE certification, and a standard 2-meter cable, SUCH fiber sensor amplifier offers reliable performance for a wide range of industrial applications.

Feature

• Long-Distance Detection & Small Light Spot: Laser fiber sensor amplifier detects objects as small as 0.2 mm with a focused 1–2 mm laser spot and an adjustable range of 0–500 mm.
• Flexible Light Intensity Adjustment: Light output can be finely tuned across multiple levels to match different detection requirements.
• Five Adjustable Power Modes: P0–P4 modes allow longer detection distance at higher power and support micro-object detection.
• Delayed Output Function: Four delay modes with freely adjustable timing from 0.01 to 9.9 seconds for flexible output control.
• Area Setting Function: Converts reflected light into digital values and uses threshold settings to lock onto specific detection zones.
• Strong Anti-Interference & Stable Operation: Built-in short-circuit and overcurrent protection with resistance to optical, electromagnetic, inverter, and motor interference.

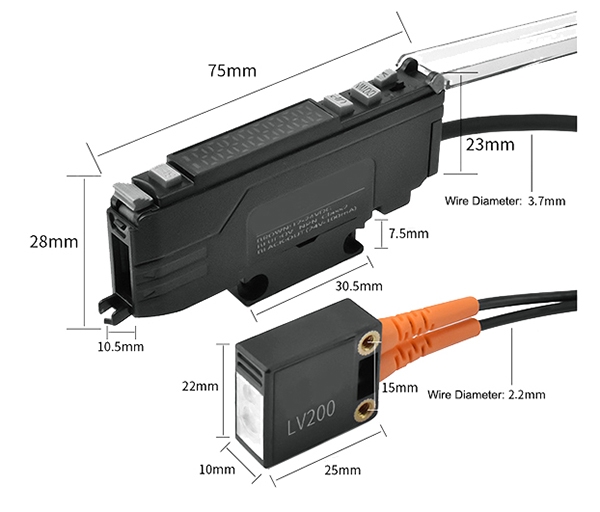

Dimension (Unit: mm)

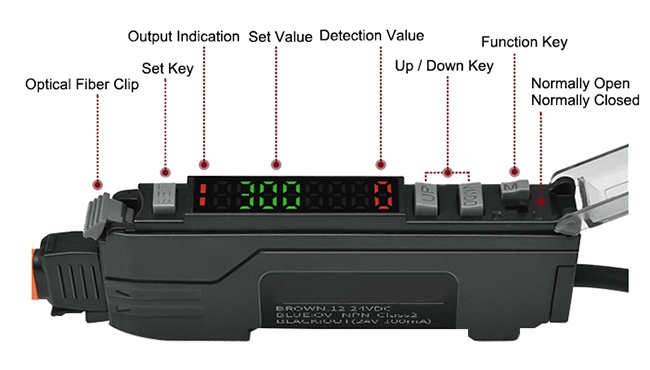

Detail

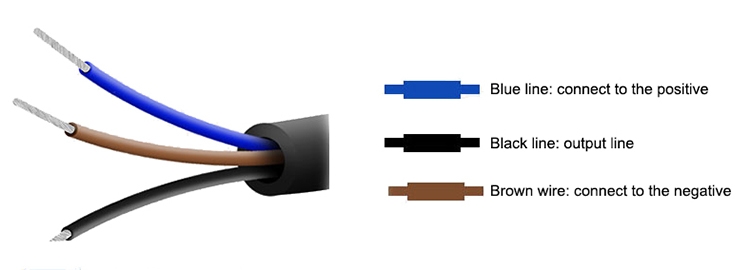

Wiring
