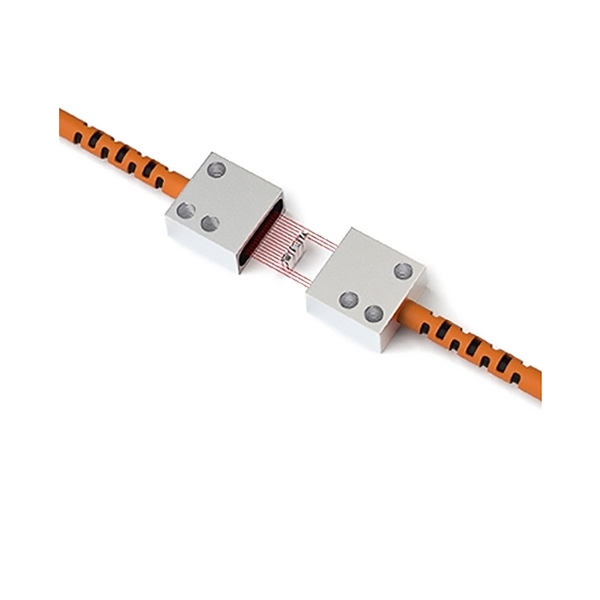

    Side-Sensing Through-Beam Fiber Optic Sensor

    SKU: SUCH-OPS-TT
    $143.89
    ● Detection rang10/15/20mm ● Through beam detection type ● Sensing position side sensing ● Inspection distance 500mm
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Side sensing through-beam fiber optic sensor is designed for high-precision object detection, offering fast response and the ability to detect small targets down to Ø0.5 mm. Its imported 32-core coaxial fiber ensures excellent light transmission, low attenuation, and strong durability against aging. Through-beam fiber optic sensor features a reinforced soft rubber sleeve for enhanced bending resistance and long service life, while through-beam operation provides stable, reliable detection over distances up to 500 mm. With selectable light-emitting widths from 5-120 mm and a side-sensing structure, it supports wide-area inspection for irregular objects, label marks, and moving parts. This fiber optic sensor sensor must be paired with a fiber amplifier to ensure stable signal processing and consistent industrial performance.

    Feature

    Side sensing fiber optic sensor feature

    • High Detection Accuracy: Detects small objects down to Ø0.5 mm with fast response and high sensitivity.
    • Amplifier Required: Must be used with a fiber amplifier for stable signal processing, ideal for part presence detection, label detection, counting, and material deviation monitoring.
    • Durable Soft Rubber Sleeve: Reinforced protective sleeve resists repeated bending, prevents fiber damage, and extends service life.
    • Multiple Size Options: Available in 5–120 mm light-emitting widths, providing wide-area detection with uniform light output for precise inspection.
    • Coaxial Multi-Core Fiber: Built with imported 32-core high-transparency fiber featuring low attenuation, excellent light transmission, and strong anti-aging durability.

    Dimension (Unit: mm)

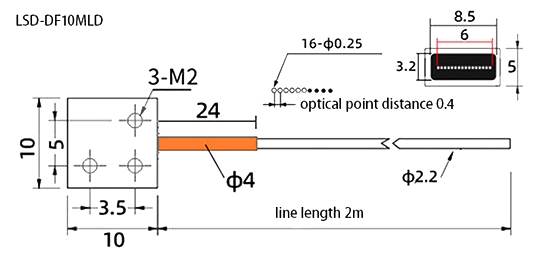

    Top sensing fiber optic sensor dimension

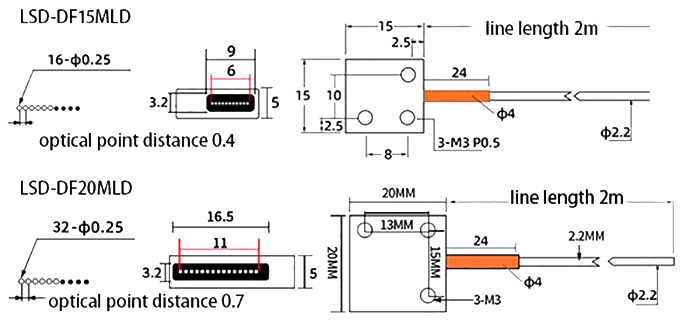

    Top sensing fiber optic sensor size

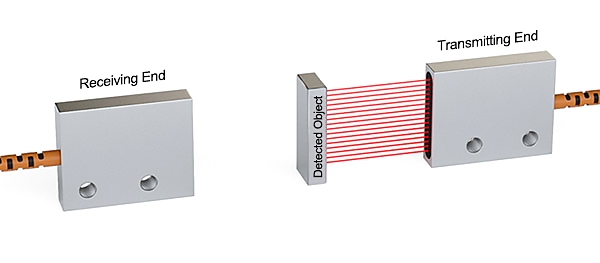

    Rectangular Detection Type

    Top sensing through beam fiber optic sensor detection type

    Specs
    Model SUCH-LSD-DT10MLD SUCH-LSD-DT15MLD SUCH-LSD-DT20MLD
    Detection Rang 10mm 15mm 20mm
    Detection Type Through beam
    Sensing Position Lateral induction
    Optical Fiber Outer Diameter Ø2.2
    Fiber Core I.D. Ø0.25*16 Ø0.25*16 Ø0.25*16
    Working Temperature -55℃~70℃
    Inspection Distance 500mm
    Min. Bend Radius R25
    Line Length 2m
    Size 10*10mm 15*15mm 15*15mm
    Net Weight ≤150g
    Application

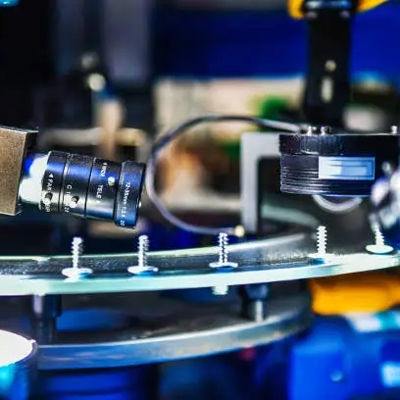

    Fiber optic sensor for detecting tiny parts

    Production Line

    Electronics manufacturing

    Electronics Manufacturing

    Precision part detection

    Precision Part Detection

    FAQ
    ❯

    A through-beam sensor uses two separate optical paths—one for transmitting light and one for receiving it. Detection occurs when an object interrupts the light beam between them.

    ❯

    Yes. Through-beam fibers typically offer the longest sensing distance because light does not rely on surface reflection—only on beam blockage.

    ❯

    Yes. The strong beam allows detection of:

    • Transparent films
    • Glass products
    • Clear plastic sheets
    • Transparent objects still block part of the beam, triggering detection.
    5.0 1
    Write your own review Close
    *
    *
    Owen Carlisle | 10/21/2026 9:01 AM
    Is this side-sensing fiber optic sensor suitable for detecting small parts?
    Hi, I’m looking for a sensor to detect tiny parts on a narrow section of our assembly line. There’s not much room to mount a regular sensor facing the parts, so this side-sensing design looks like it might work. Some of the parts are only around 0.5 mm. Is it difficult to get the sensing position right? Also, does the sensor come with an amplifier, or do I need to order one separately?
    SUCH responded to this review
    Hi! It could be a good fit for that kind of setup. The sensor can detect targets as small as 0.5 mm under suitable conditions, but getting the position right will depend on the shape and movement of the parts. You’ll also need a compatible fiber amplifier, which is a separate component. If you can share a little more about the parts and the space you have available, we can help you work out a suitable setup.
