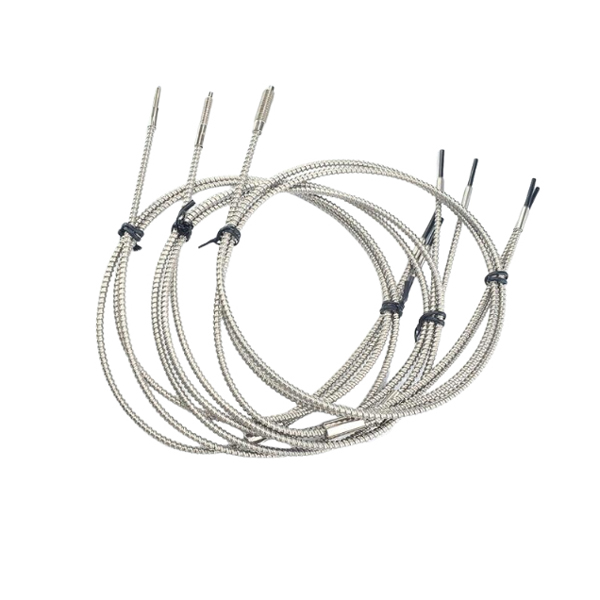

Reflective Fiber Optic Sensor, -55°C~350°C

Reflective fiber optic sensor is built for high-temperature use with a stainless steel fiber tube and a metal housing. It provides stable light transmission, steady signal output, and an adjustable sensing distance of 0-72 mm. SUCH fiber optic sensor sensor keeps its structure without deformation up to 350°C and works with all fiber optic amplifiers. A minimum bending radius of 25 mm is required during installation. It meets CE certification and is suitable for high-temperature environments.

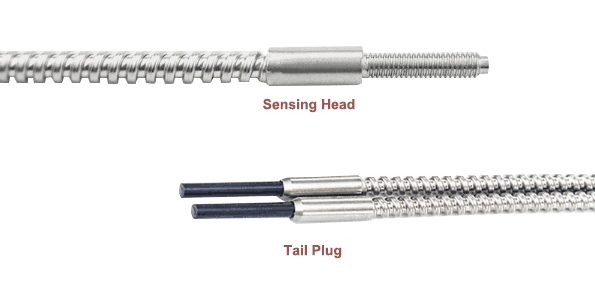

Feature

• High-Temperature Resistant up to 350°C: Fiber optic sensor designed for high-temperature diffuse/reflective fiber applications and compatible with all fiber optic amplifiers.
• Reinforced Metal Housing: Durable, corrosion-resistant metal outer shell provides long-lasting performance in harsh environments.
• High-Quality Fiber Core: Excellent light transmission and stable signal output ensure reliable performance under demanding conditions.
• Full High-Temperature Structure: Engineered for extreme temperature environments, suitable for continuous use in high-heat applications.
• Superior Optical Signal Accuracy: High-transparency glass material minimizes signal loss and ensures more precise optical detection.
• Thermal Stability up to 350°C: Maintains shape and integrity without deformation or melting when exposed to high temperatures.
• High-Temperature Fiber Installation Method: Bending radius for high-temperature reflective fibers must be at least 25 mm to prevent damage.
• Bending Radius Warning: Exceeding the minimum bending radius may damage the fiber and affect detection performance.

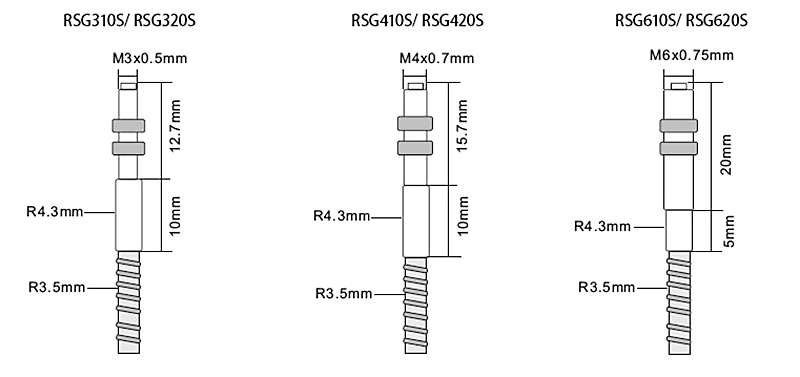

Dimension

Product size is for reference only, subject to actual measurement.

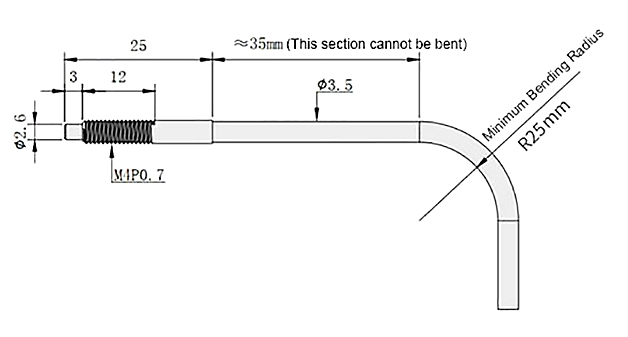

Wiring Drawing

The bending radius of high-temperature reflective fiber must be more than 25 mm.

Note: Exceeding the minimum bending radius may damage the fiber.

This fiber optic sensor needs to be used with a fiber optic amplifier.
