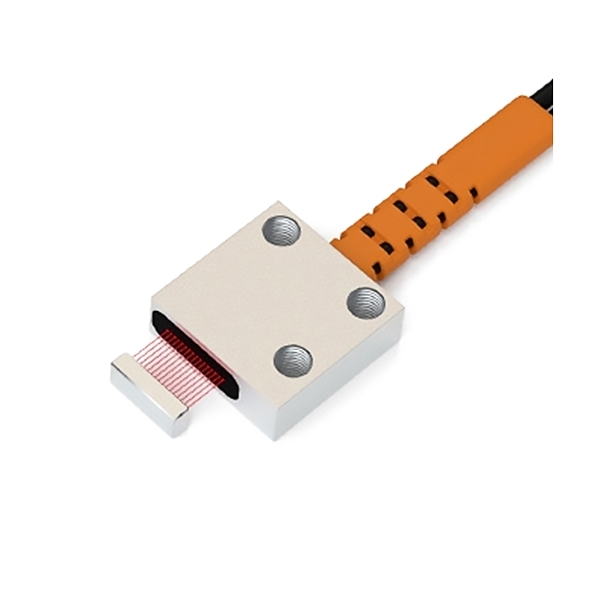

Top-Sensing Rectangular Fiber Optic Sensor

Top-Sensing rectangular fiber optic sensor is designed for precise diffuse-reflective detection with a top-mounted sensing position, offering a 120 mm inspection distance for reliable object recognition in compact automation environments. Built with a durable fiber protection sleeve, high-transparency coaxial multi-core fiber, and a robust sealed structure, it ensures stable optical transmission with low attenuation and strong resistance to dust, oil, vibration, and electrical interference. Compatible with amplifiers and PLC systems, the sensor operates within a wide temperature range of -55°C to 70°C, making SUCH fiber optic sensor suitable for harsh industrial conditions. Its uniform light output, selectable detection configurations, and long-lasting anti-fatigue structure deliver accurate, consistent performance across various applications.

Feature

• Durable Fiber Protection Sleeve: Fiber optic sensor specialized tail-end design relieves cable stress, resists bending fatigue, protects against oil contamination, and extends product lifespan.
• Multiple Detection Specifications: Offers selectable light-emission widths from 5–120 mm and adjustable sensing distances to suit different target sizes.
• Coaxial Multi-Core Fiber: Features imported 32-core high-transparency fiber with low attenuation, excellent light transmission, and strong anti-aging properties.
• Premium Material Quality: Fiber-optic signal output is compatible with counters, relays, PLCs, control units, and data acquisition devices.
• Stable Operating Performance: Ensures consistent detection results with strong resistance to vibration, electrical noise, and environmental variations.
• Matrix Fiber with Amplifier: Designed to function together with an amplifier, powered by DC 12–24V for safe, protected, and reliable operation.
• Enhanced Protection Rating: Constructed with a robust sealing structure that shields against dust, moisture, and oil for extended industrial use.
• High Light Transparency: Delivers clear optical transmission with minimal signal loss for accurate and stable sensing.
• Even Light Emission: Multiple micro-fiber strands create a uniform light output, enabling precise detection of irregular, moving, or narrow-gap objects.

Dimension (Unit: mm)
