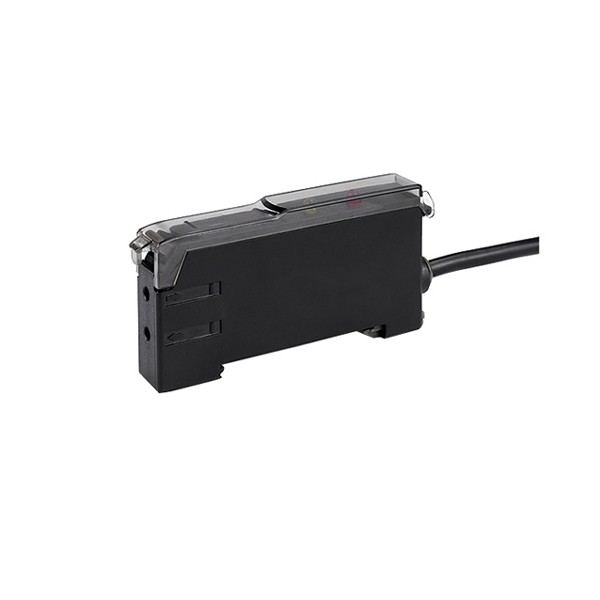

Fiber Sensor Amplifier, NO/NC

NO/NC fiber sensor amplifier is a versatile and reliable signal-processing unit designed for fiber optic sensing applications. It supports NPN/PNP/NO/NC output modes and operates within a wide 10-30V DC voltage range for stable performance. With a 3-8 cm sensing range, durable PBT plastic housing, and built-in protections including short-circuit, overload, and reverse-polarity protection, it ensures safe operation in demanding environments. The amplifier is easy to install and use—simply connect the wiring and adjust detection distance—while offering flexible NO/NC dual-output compatibility for various control systems. A separate fiber optic cable is required for proper operation.

Feature

• Short-Circuit Protection: Automatically protects the device and load when a short-circuit or output fault occurs.
• Overload Protection: Activates protection when unstable load conditions cause excessive current.
• Reverse Polarity Protection: Prevents damage even if the power wires are accidentally connected in reverse.
• Wide Voltage Range (10–30V): SUCH fiber sensor amplifier supports long-term stable operation within a broad DC10–30V supply range.
• NO + NC Dual Output: Offers both normally open and normally closed outputs for wider device compatibility and flexible wiring.
• Easy to Use & Install: Simple operation—connect the wires and adjust the detection distance for quick setup.
• Fiber Required for Operation: Must be paired with a separate fiber optic cable (sold individually) for proper sensing functionality.

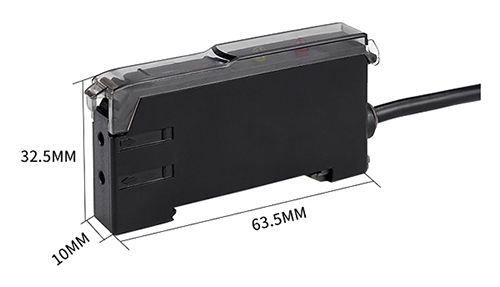

Dimension (Unit: mm)

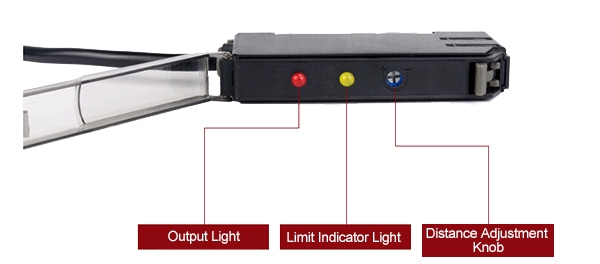

Detail

Wiring Drawing
