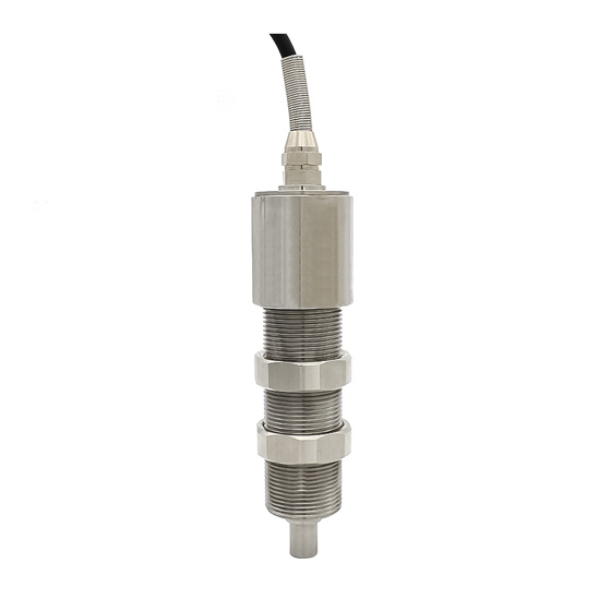

    Tension Force Sensor for Fiber Optic, 10N-500N

    0 review(s) | Add your review
    SKU: SUCH-FS-TFS500
    $192.47
    ● Measure the tension of optical fiber, with a maximum cable pull of 98N ● Optional measurement ranges include 10N-500N ● Output sensitivity is 1.0±0.05 mV/V, and the response frequency is 1kHz ● Made of 42CrMoA material, operating temperature range is -20°C to 80°C
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    High-quality tension force sensor for fiber optic can measure tensions of 10N, 20N, 30N, 50N, 100N, 200N, and 500N, with an output sensitivity of 1.0±0.05 mV/V and a zero-point output of ±1% F.S. SUCH tension force sensor supports a maximum load of 300% R.C. and a cable pull limit of 98N. Tension force sensors for fiber optic are widely used for dynamic tension measurement in various wire production equipment, including optical fiber, yarn, cable, and tape.

    After purchasing one SUCH force sensor, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

    Note: The force sensor cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

    Feature

    • Easy Installation & Stable Signal: Easy to install with stable signal performance, ideal for dynamic tension measurement of fibers, cables, and belts.
    • Waterproof Connector: Features a 6-sided waterproof connector, preventing damage and ensuring stable signal transmission in various conditions.
    • Durable Stainless Steel: Made from high-quality stainless steel, resistant to high temperatures, wear, and corrosion, offering long-lasting durability.
    • High Flexibility & Strength: Designed to resist elongation and maintain strength, ensuring reliable performance over time.
    • Wide Application: Suitable for measuring tension in various materials like fiber optics, cables, and belts.

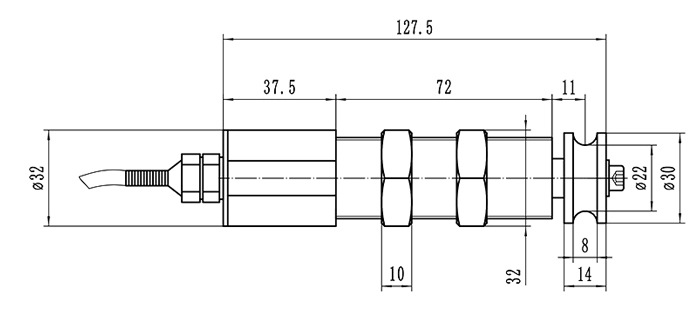

    Dimension (Unit:mm)

    Tension force sensor for fiber optic size

    Wiring

    Wiring of force sensor

    Specification
    Measuring Range 10N-500N
    Matched Display Controller SUCH-LCDC-DY800 (Click it to the controller page)
    Matched Transmitter SUCH-LCTR-OA (Click it to the transmitter page)
    Output Sensitivity 1.0 ± 0.05 mV/V
    Zero Output ±1%F.S.
    Non-linearity ±0.2%F.S.
    Full Scale ±0.2%F.S.
    Hysteresis ±0.2%F.S.
    Drift (30 min) ±0.3%F.S.
    Temperature Sensitivity 0.1%F.S./10°C
    Zero Temperature Drift 0.1%F.S./10°C
    Response Frequency 1 kHz
    Material 42CrMoA
    Resistance 350 Ω
    Insulation Resistance ≥5000 MΩ/100V DC
    Operating Voltage 5-15 V
    Working Temperature Range -20°C to 80°C
    Safety Load ≤150%R.C.
    Max Load ≤300%R.C.
    Cable Specifications Φ5*3m
    Cable Pulling Limit 98N
    TEDS Optional (Contact customer service)
    Application

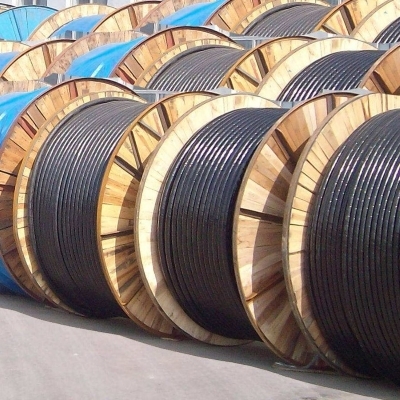

    Measuring cable tension

    Measuring Cable Tension

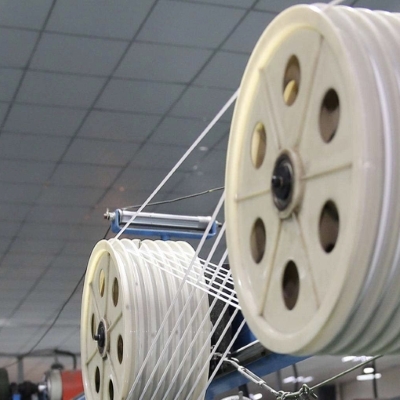

    Measuring fiber tension

    Measuring Fiber Tension

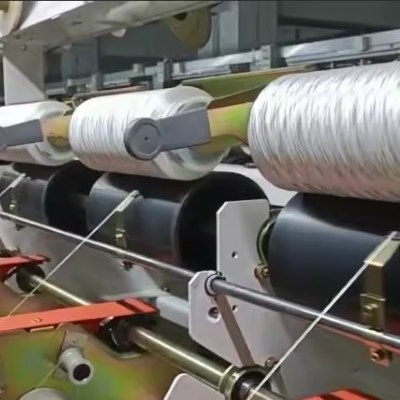

    Measuring yarn tension

    Measuring Yarn Tension

    FAQ
    ❯

    Any industry that monitors and controls force, weight, tension, or pressure can benefit from force sensors. Examples include manufacturing, automotive, and logistics.

    ❯

    Tension force sensor for fiber optic can be used in high-speed equipment, but the sensor's response speed and bandwidth must be sufficiently high to avoid signal delays that could cause control lags.

    ❯

    Ensure that the sensor's mounting position is aligned with the fiber's direction of travel to prevent additional lateral forces from interfering with measurement accuracy. Avoid vibration or high-frequency interference during use. Wiring must be secure and well-shielded to prevent electrical interference from affecting signal output.
