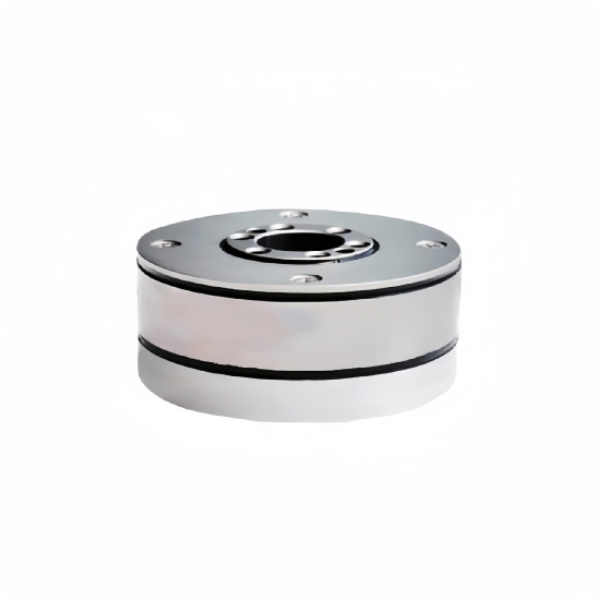

6 Axis Force Sensor, 100kg/160kg/250kg/500kg

SKU: SUCH-FS-090

$2,703.69

● Optional measurement range 100kg/160kg/250kg/500kg ● Output sensitivity 1.0±10%mV/V ● Alloy steel material, IP65 protection rating ● Recommended excitation voltage 5-10V DC/AC

Fx/Fy/Fz Range *
With Transmitter *
With Display Controller *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

The 6 axis force sensor sell at a low price, offer Fx/Fy/Fz ranges are 100kg/100kg/200kg, 160kg/160kg/320kg, 250kg/250kg/500kg, 500kg/500kg/1500kg respectively, and the corresponding Mx/My/Mz ranges are 100N.m, 200N.m, 300N.m and 500N.m. Constructed of alloy steel, SUCH 6 axis force sensors offer excellent accuracy, IP65 protection, and are suitable for operation in temperatures ranging from -20°C to 80°C.

After purchasing one SUCH force sensor, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The force sensor cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Feature

Made of high-quality aluminum alloy for durability.
Low height and flat handles for easy installation.
Measures axial tension, compression, and static torque, with strong resistance to off-center loads.
Various applications, including robotic arm grinding, polishing, welding, handling, product testing, automotive press assembly, and new energy applications.

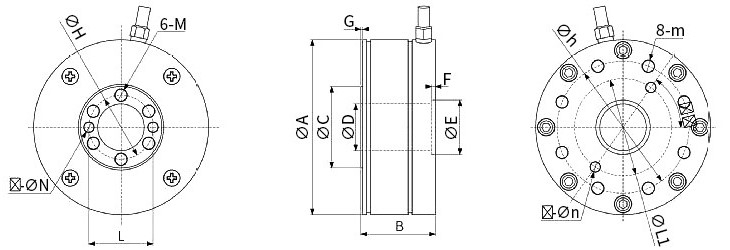

Dimension (Unit:mm)

6 axis force sensor size

Number	Rang Fx/Fy/Fz (kg)	Rang Mx/My/Mz (N.m)
No.1	100/100/200	100/100/100
No.2	160/160/320	200/200/200
No.3	250/250/500	300/300/300
No.4	500/500/1500	500/500/500

Number	No.1	No.2	No.3	No.4
A	90	90	116	190
B	38.4	39.4	45	65
C	42	42	54	98
D	24	24	24	50
E	28	28	28	50
F	2	2	2	/
G	1	1	1	3
H	33	33	40	75
M	M6 deep 7.5	M6 deep 7.5	M10 deep 10	M10 deep 18
L	33	33	40	80
N	ø5 deep 8	ø5 deep 8	ø6 deep 8	ø10 deep 12
h	68	68	100	163
m	M6 deep 7.5	M6 deep 7.5	M8 deep 8	M16 deep 12
L1	50	50	80	135
n	ø5 deep 8	ø5 deep 8	ø6 deep 8	ø10 deep 10

Wiring

6 axis force sensor wiring

Specs

Matched Display Controller	SUCH-LCDC-DY800 (Click it to the controller page)
Matched Transmitter	SUCH-LCTR-OA (Click it to the transmitter page)
Output Sensitivity	1.0±10%mV/V (decoupled)
Mutual Interference Error	2%F.S
Non-Linearity	0.2%F.S
Recommended Excitation Voltage	5-10V DC/AC
Maximum Excitation Voltage	15V DC
Repeatability	0.1%F.S
Zero Output	±0.5%F.S
Hysteresis	0.1% F.S
Creep	0.2% F.S
Temperature Sensitivity Drift	0.1% F.S/°C
Zero Temperature Drift	0.1% F.S/°C
Input Impedance	350±10Ω
Output Impedance	350±10Ω
Insulation Resistance	≥5000MΩ/100V DC
Temperature Compensation	-10°C~60°C
Operating Temperature	-20°C~80°C
Cable Size	18-core shielded cable, ø6.5mm*5000mm
Protection Rating	IP65
Material	Alloy steel

Application

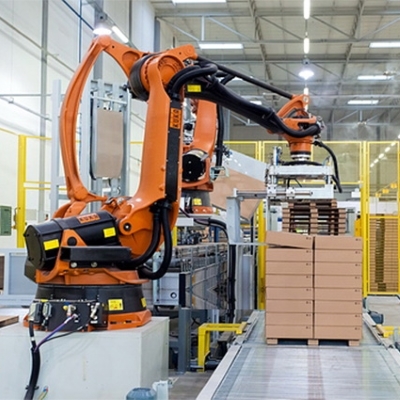

Machinery

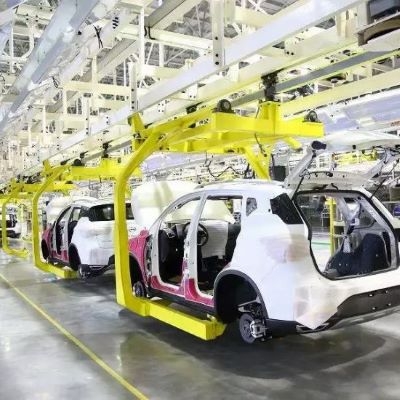

Automobile

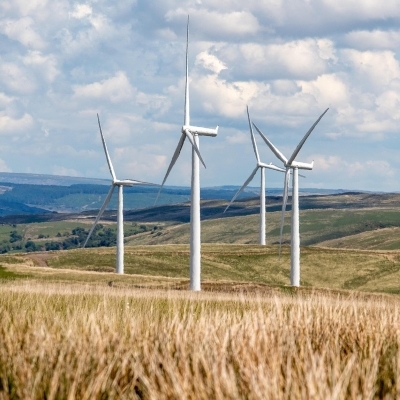

New Energy

FAQ

Q1: What are the application scenarios for 6 axis force sensors? ❯

Six axis force sensors are used to precisely control gripping force, torque, and position in robotic arms. They are also used in crash testing and force monitoring in automated assembly in the automotive industry. They help detect and control force and torque during assembly processes.

Q2: What are the advantages of 6 axis force sensor? ❯

The 6 axis force sensor can simultaneously measure force and torque in multiple directions, making them suitable for complex mechanical testing. Through real-time measurement and feedback control, they can improve the accuracy and efficiency of robotic and automated systems. The integration of six measurement axes simplifies sensor layout, reducing system complexity and cost.

Q3: What are the sources of error in 6 axis force sensors? ❯

Temperature changes can affect the materials and internal components of 6 axis force sensors, potentially leading to errors. External electromagnetic waves can affect the sensor's signal readings. The mounting method and position of 6-axis load cells can affect their measurement accuracy, and uneven or dynamic loading can lead to inaccurate measurements.

0 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5
