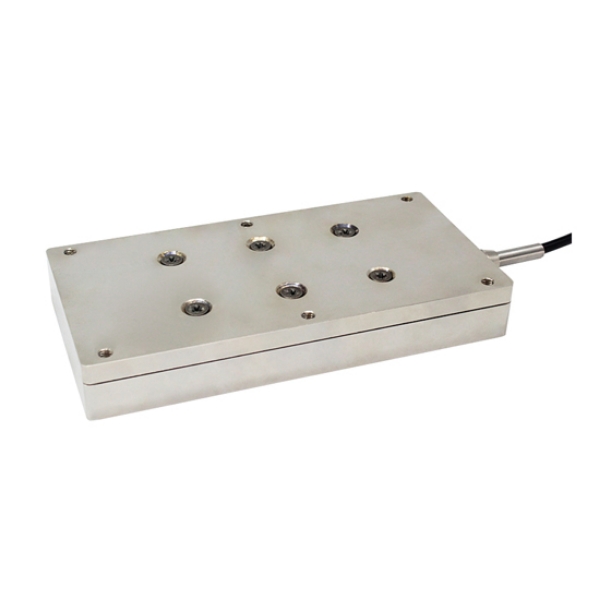

    Compression Force Sensor, Flat Plate, 0-5 Ton

    0 review(s) | Add your review
    SKU: SUCH-FS-PB001
    $336.89
    ● Measuring range 0-1/2/3/5 tons optional ● Sensitivity 1.5-2.0 mV/V ● Safety overload 150% F.S ● Recommended excitation voltag: 10-15V
    *
    *
    *
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Flat-plate compression force sensors for sale online. High-quality compression force sensors can be used for measuring force in battery equipment, with measurement ranges of 0-1/2/3/5 tons. The compression force sensor offers a sensitivity range of 1.5-2.0 mV/V, a nonlinearity of ±0.5% F.S., and a zero output accuracy of ±1% F.S. The operating range is -20°C to 80°C, with an input resistance of 750 ± 20 Ω and an output resistance of 700 ± 5 Ω. SUCH compression force sensors are widely used in battery equipment force measurement, new energy projects, and various engineering equipment force measurement systems.

    After purchasing one SUCH force sensor, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

    Note: The force sensor cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

    Feature

    • Wide Measurement Range: The flat plate compression force sensor has a broad force measurement range, ensuring high precision and stability with excellent output consistency.
    • Ideal for Battery Equipment and Energy Projects: Suitable for use in battery equipment, new energy projects, and various power measurement systems.
    • Durable 40Cr Alloy Steel Construction: Made from 40Cr alloy steel, known for its excellent resistance to mechanical fatigue, high strength, and good weldability. The surface is resistant to corrosion and rust, with optional stainless steel material for enhanced durability.
    • Reliable Performance with Factory Testing: The force sensor from the factory has been subjected to aging tests and is guaranteed to be durable and of high quality.
    • High Precision and Large Force Area: Designed with high precision and a large force measurement area, this sensor is particularly suitable for battery pressure testing and applications requiring precise force measurement.

    Dimension (Unit:mm)

    Size of compression force sensor

    Wiring

    Compression force sensor wiring

    Specification
    Measuring Range 0-5 ton
    Matched Display Controller SUCH-LCDC-DY800 (Click it to the controller page)
    Matched Transmitter SUCH-LCTR-OA (Click it to the transmitter page)
    Sensitivity 1.5-2.0 mV/V
    Non-linearity ±0.5%F.S.
    Full Scale ±0.5%F.S.
    Hysteresis ±0.5%F.S.
    Drift ±0.3%F.S.
    Zero Output ±1%F.S.
    Zero Temperature Sensitivity ±0.1%F.S./10°C
    Sensitivity Temperature Sensitivity ±0.3%F.S./10°C
    Operating Temperature Range -20°C to 80°C
    Input Resistance 750±20Ω
    Output Resistance 700±5Ω
    Safety Load ≤150%F.S.
    Insulation Resistance ≥5000 MΩ (50V DC)
    Recommended Excitation Voltage 10-15V
    Application
    Force detection

    Force Detection

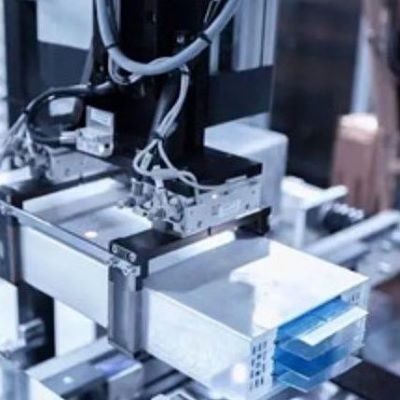

    Battery assembly

    Battery Assembly

    Industrial control

    Industrial Control

    FAQ
    ❯

    Flat-plate force sensors offer advantages such as compactness, easy installation, fast response, and high measurement accuracy. Their flat design makes them particularly suitable for applications with limited installation space. These sensors typically exhibit good anti-interference performance and strong resistance to off-center loads, making them suitable for stable operation in environments subject to multi-directional forces.

    ❯

    Compression force sensors measure forces in the direction of compression or squeezing, while tension force sensors measure forces in the direction of extension or traction. The main difference between the two lies in the direction of the measured forces.

    ❯

    Cylinder-shaped sensors are suitable for bidirectional measurement of tension and compression, featuring a symmetrical structure and easy installation. Flat-plate-shaped sensors are low in height and compact, making them commonly used for compressive force measurement in space-constrained environments. Ring-shaped sensors with a central hole are suitable for mounting on bolts or shafts for tension measurement or preload monitoring. Push-button-shaped sensors resemble pushbuttons and are suitable for embedded installation, often used for compressive force measurement.
