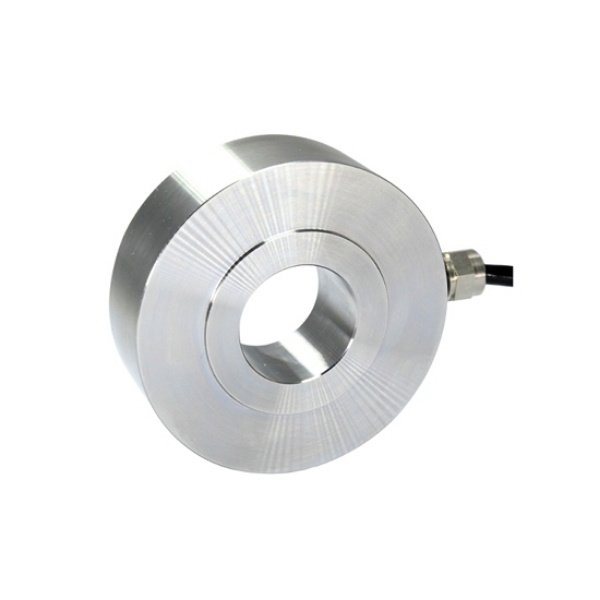

Ring Type Compression Force Sensor, 0.5kN-200kN

Ring type compression force sensor for sale, with optional capacities of 0.5 kN, 1 kN, 2 kN, 5 kN, 10 kN, 20 kN, 50 kN, 100 kN, and 200 kN. The output sensitivity is 1.0 ± 10% mV/V, and the zero-point output is ±2%F. SUCH ring type compression force sensors are made of stainless steel, with an impedance of 700Ω and an insulation resistance ≥5000MΩ/100VDC. Hollow design, the main measurement of extrusion force, assembly interference detection and control of other industrial control force detection.

After purchasing one SUCH force sensor, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The force sensor cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Feature

• Material: Made from high-quality stainless steel, ensuring durability and resistance to corrosion.
• Sealed Design: Compression force sensor has tight welding and sealing for oil-proof, water-proof, and corrosion-resistant properties, making it suitable for harsh environments.
• High Strength: The use of premium stainless steel ensures excellent machine resistance, good heat dissipation, and a longer service life.
• Wide Range of Applications: Primarily used for measuring compressive force in hollow designs, such as pressure detection and control for various industrial forces.
• Versatile Measurement: Ideal for applications in extrusion force measurement, assembly interference detection, and other industrial force control systems.
• Customization Options: Available in a wide range of capacities from 0.5KN to 200KN, with customizable diameters (4-16mm or 7-30mm).

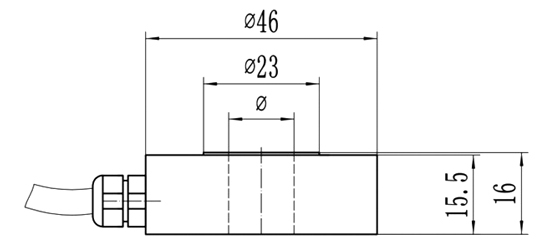

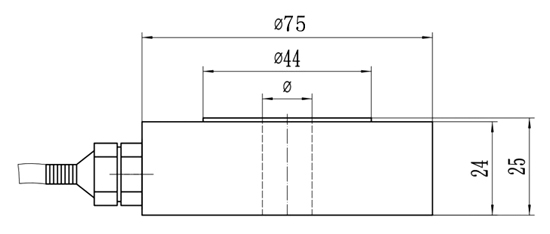

Dimension (Unit:mm)

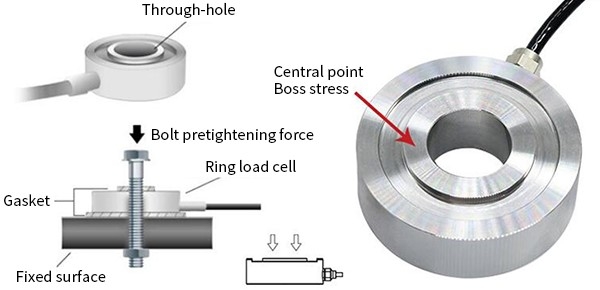

Force Mode

Wiring

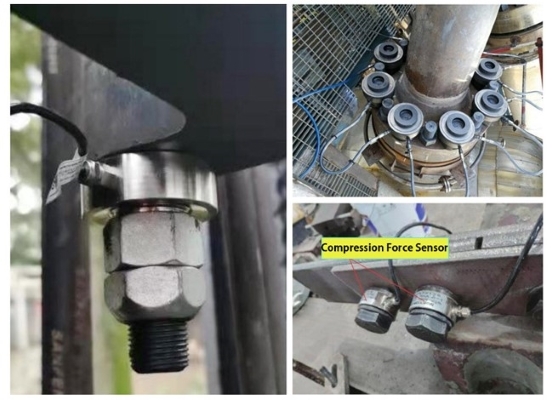

Installation Case
