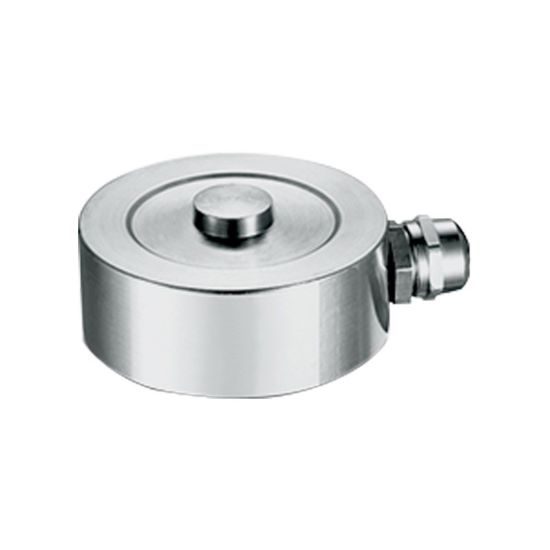

    Picture of Miniature Force Sensor, 20-10000kg Picture of Miniature Force Sensor, 20-10000kg

    Miniature Force Sensor, 20-10000kg

    0 review(s) | Add your review
    SKU: SUCH-FS-ZCB511E
    $384.62
    ● Measuring range 20-10000 kg ● Recommended excitation voltage 3-5 V DC ● Safe overload 150% F.S ● Stainless steel material
    🚚 Free shipping
    🕒 Delivery date: 6-12 days
    🔁 30-day Returns
    Overview

    Miniature force sensor for sale, range 20-10000kg, output sensitivity 1.5MV/V, zero point output ±2%F.S. The high-quality SUCH miniature compression force sensor has an impedance of 700 Ω and an insulation rating of ≥5,000 MΩ/100 VDC. It operates with a voltage of 3~5 V and a temperature range of -20°C~80°C.

    Feature

    • Equipped with high-precision strain gauges, it is heat-resistant, stable, accurate, and low-temperature resistant.
    • High-quality stainless steel, offering strong mechanical fatigue resistance, excellent permeability, and a corrosion-resistant surface.
    • Provides accurate measurement data, high detection accuracy, and a wide range of functions.

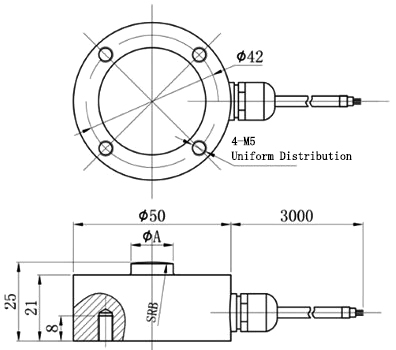

    Dimension (Unit: mm)

    Miniature force sensor size

    Specs
    Range 20-10000 kg
    Sensitivity 1.5 MV/V
    Zero Point Output ±2% F.S
    Non-Linearity ±0.5% F.S
    Hysteresis ±0.5% F.S
    Repeatability ±0.5% F.S
    Creep 0.1% F.S/30 min
    Temperature Sensitivity Drift 0.1% F.S/10°C
    Temperature Zero Point Effect 0.1% F.S/10°C
    Input Impedance 700 ± 10Ω
    Output Impedance 700 ± 5Ω
    Insulation Resistance ≥5000 MΩ/100V
    Recommended Excitation Voltage 3-5V DC
    Temperature Compensation Range -10°C~60°C
    Operating Temperature Range -20°C~80°C
    Safe Overload 150% F.S
    Ultimate Overload 200% F.S
    Cable Size Φ3×3m
    Electrical Connections Input: Red (+) Black (-)
    Output: Green (+) White (-)
    Material Stainless steel
    Application
    Automotive manufacturing

    Automotive Manufacturing

    Electronics industry

    Electronics Industry

    Robotics industry

    Robotics Industry

    FAQ
    ❯

    A miniature compression force sensor is a compact sensor designed specifically to measure force in the compressive direction. It is typically used in applications where space is limited or high accuracy is required.

    ❯

    Its small size makes it suitable for installation in tight spaces. Its high sensitivity allows it to detect minute compressive forces. It is easy to install and highly adaptable.

    ❯

    The mounting surface must be flat and hard to avoid side loads that may affect measurement accuracy. Avoid bending, tension, or shear forces that may affect measurement. Maintain an oil-free and vibration-free environment.
