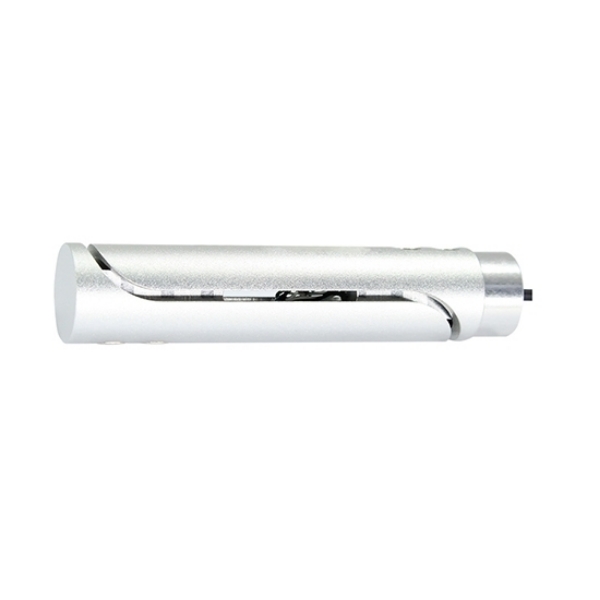

Grip Force Sensor for Human Grip Strength, 0-10/20/100kg

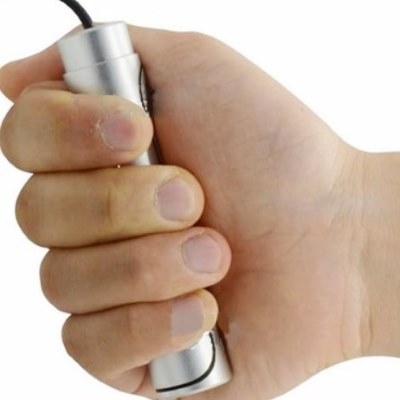

High-quality grip force sensors for human grip strength testing support different ranges: 0-10kg, 0-20kg, 0-30kg, 0-50kg, and 0-100kg. Affordably priced, sensors meet diverse testing needs. Made of aluminum alloy, these sensors offer excellent anti-interference performance, durability, high test accuracy, and stable performance. They feature a nonlinear error of ≤0.2% F.S. and a response frequency of up to 1kHz. SUCH grip force sensors are suitable for a wide range of applications, including sports, rehabilitation, and clinical testing.

After purchasing one SUCH force sensor, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The force sensor cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Feature

• Threaded Aperture: Can be fixed equipment, suitable for motorcycle brakes for exercise physiology teaching and experimental projects, can also be equipped with gyms for mechanics training.
• High-quality Aluminum Alloy Material: The grip force sensor is made of aluminum alloy, which is light in weight, corrosion-resistant for mechanical fatigue performance, easy to process, high parietal strength, low density and other advantages.
• Industrial High Precision Strain Gauge: High measurement accuracy, can work in high temperature, low temperature, high pressure and other extreme environments good heat resistance, creep is small, thermal hysteresis is small long-term stability.

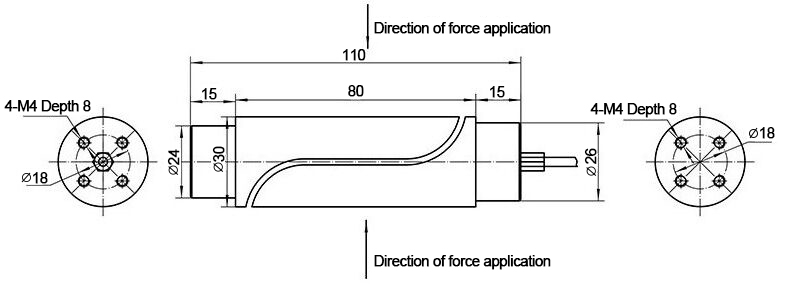

Dimension (Unit:mm)

0-10kg/0-20kg:

0-30kg/0-50kg/0-100kg:

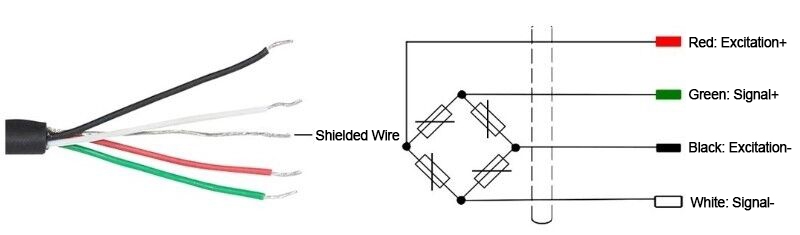

Wiring

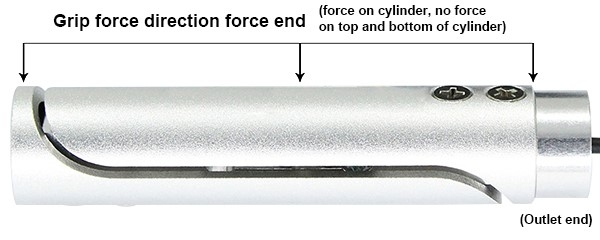

Force Diagram
