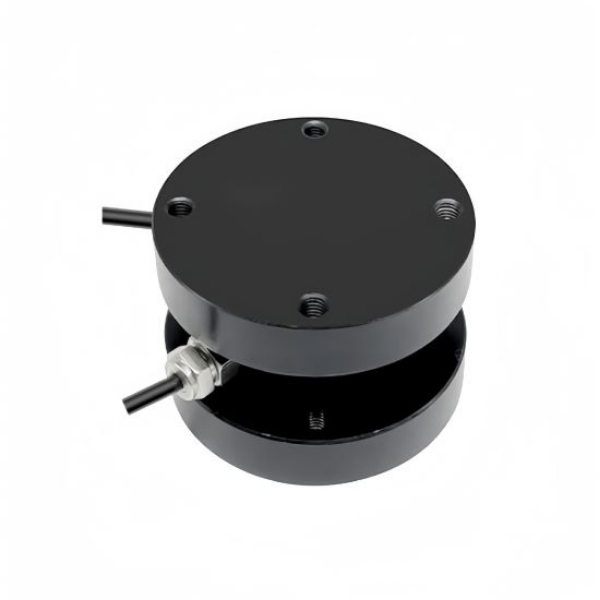

2 Axis Force Sensor, 5kg/10kg/20kg/50kg/100kg

SKU: SUCH-FS-060

$867.92

● Optional range 0-5kg/10kg/20kg/50kg/100kg ● Output sensitivity 1.5±10% mV/V ● Recommended excitation voltage 5-10V DC/AC ● IP65 protection rating, aluminum alloy/stainless steel

Capacity *
With Transmitter *
With Display Controller *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Applicatipn
FAQ
Reviews

Overview

High-precision 2 axis force sensor with optional ranges of 0~5kg, 0~10kg, 0~20kg, 0~50kg, and 0~100kg. SUCH 2 axis force sensor has high accuracy and is widely used in industrial automation and testing fields to meet various needs. The 2-axis force sensor is suitable for measuring tension and compression, and its high sensitivity and stability make it an ideal choice for industrial applications. Its reliable performance and durability are suitable for a variety of environments.

Note: The force sensor cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Feature

Made of high-quality aluminum alloy/stainless steel for durability.
Measures X-axis tension and compression and Z-axis static torque, with strong resistance to off-center loads.
Low profile, supports both upper and lower surfaces, and is easy to install.
It offers a wide range of applications, including robotic arms, product testing, automotive press assembly, and new energy.

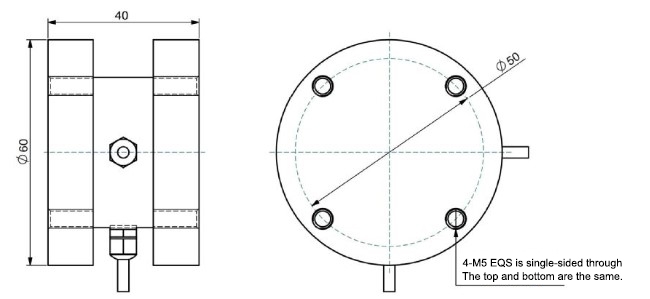

Dimension (Unit:mm)

2 axis force sensor size

Wiring

Force Measuring Direction

2 axis force sensor force measuring direction

Specs

Rated Load	Fz: 0~5kg, 10kg, 20kg, 50kg, 100kg, Mz: 0~2Nm, 4Nm, 10Nm, 20Nm, 30Nm
Output Sensitivity	1.5±10% mV/V
Mutual Interference Error	0.5% F.S
Non-Linearity	0.2% F.S
Recommended Excitation Voltage	5-10V DC/AC
Maximum Excitation Voltage	15V DC/AC
Repeatability	0.2% F.S
Zero Output	±0.5% F.S
Hysteresis	0.2% F.S
Creep (30 minutes)	0.2% F.S
Temperature Sensitivity Drift	0.05% F.S/°C
Zero Temperature Drift	0.05% F.S/°C
Input Impedance	350±10Ω
Output Impedance	350±10Ω
Insulation Resistance	≥5000MΩ/100V DC
Temperature Compensation	-10°C~60°C
Operating Temperature	-20°C~80°C
Cable Size	2 4-core shielded cables, ø3mm x 3000mm
Ingress Protection	IP65
Material	Aluminum alloy/stainless steel

Applicatipn

Machinery

Automobile

New Energy

FAQ

Q1: What is a multi-axis force sensor? ❯

A multi-axis force sensor is a sensor that can simultaneously measure force in multiple directions or dimensions. Unlike single-axis sensors, which can only measure data in one direction, multi-axis sensors can simultaneously obtain information about the force or motion acting on an object in two or three dimensions.

Q2: What are the main applications for 2 axis force sensors? ❯

Monitoring gripping force in robotic grippers and hands, 2-dimensional force control in precision assembly and inspection processes, and multi-directional force measurement in laboratory testing.

Q3: What precautions should be taken when using 2-axis force sensors? ❯

Avoid applying forces beyond the sensor's range to prevent damage to the sensor. Ensure the sensor is aligned with the direction of force during installation. Avoid environmental interference, such as strong magnetic fields, high temperatures, or humidity.
