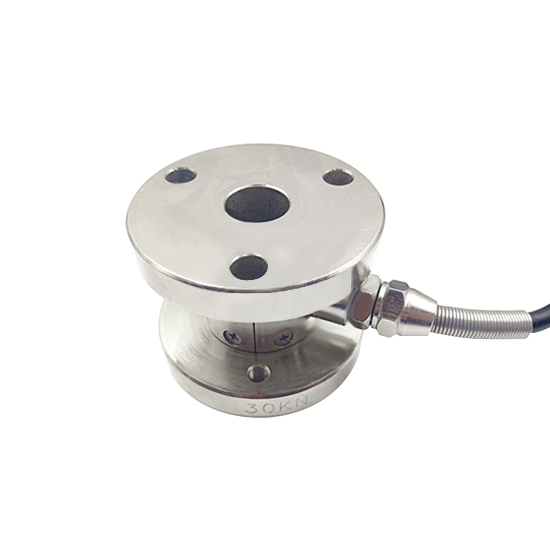

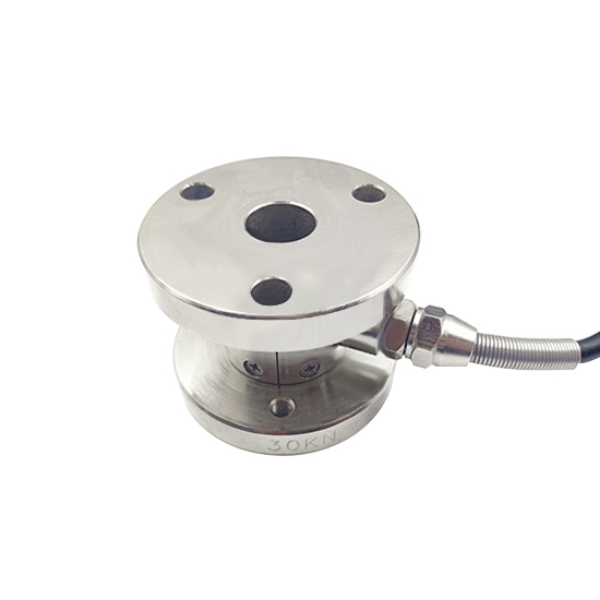

Impact Force Sensor, 0-30kN

SKU: SUCH-FS-172

$436.62

● High-precision impact force detection, range 0-30 kN ● Accuracy ≤0.5% F.S., output sensitivity 2.0±0.1 mV/V ● Operating voltage 5-18 V DC, operating temperature -20°C to 70°C ● Insulation resistance 5000 MΩ, safe overload 150%

With Transmitter *
With Display Controller *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Spec
Applicatipn
FAQ
Reviews

Overview

High-quality impact force sensor for sale, suitable for impact and pressure detection during shock, collision, and explosion. Range 0-30 kN, accuracy ≤0.5% F.S., operating voltage 5-18 V DC, operating temperature -20°C to 70°C. SUCH impact force sensor has a flange structure, is easy to install, has stable performance, an insulation resistance of 5000MΩ, and supports a safe overload of up to 150%.

After purchasing one SUCH force sensor, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The force sensor cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Feature

Precise measurement: Accuracy up to 0.5% F.S., output sensitivity 2.0±0.1mV/V.
Stable performance: Made of aluminum alloy, with a 150% safe overload, it's durable and sturdy.
Wide applications: Can be used in force measurement systems to detect impact force and pressure during shock, collision, and explosion.

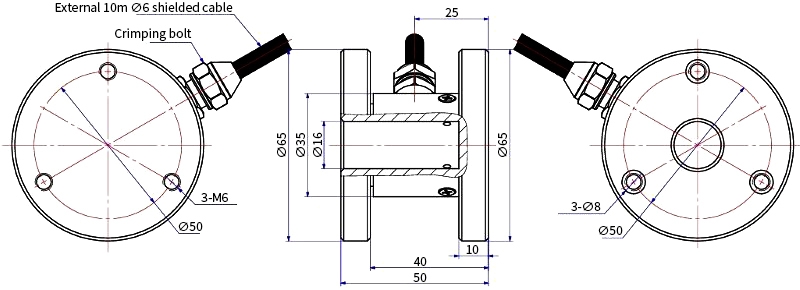

Dimension (Unit: mm)

Impact force sensor size

Spec

Range	0-30kN
Matched Display Controller	SUCH-LCDC-DY800 (Click it to the controller page)
Matched Transmitter	SUCH-LCTR-OA (Click it to the transmitter page)
Accuracy	≤0.5%F.S
Output Sensitivity	2.0±0.1mV/V
Input Impedance	700±50Ω
Output Impedance	700±10Ω
Operating Voltage	5-18V DC
Operating Temperature	-20°C to 70°C
Insulation Resistance	5000MΩ
Safe Overload	150%
Wiring	Red (positive power), white (negative power), green (positive signal), black (negative signal)

Applicatipn

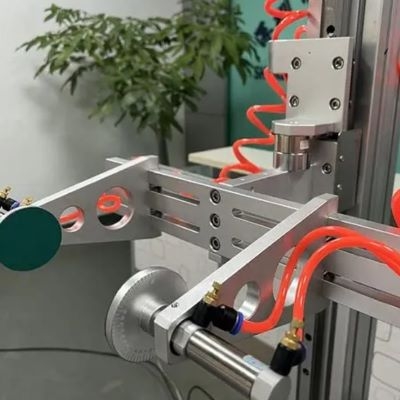

Dorp Test

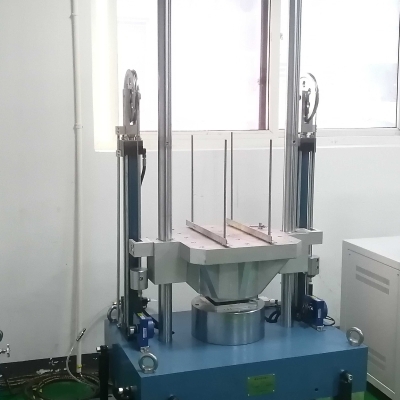

Impact Test

Crash Test

FAQ

Q1: What is an impact force sensor? ❯

An impact force sensor is a sensor designed to measure instantaneous impact or collision force generated over a short period of time. It is often used to assess the force applied to an object during a collision, knock, or fall.

Q2: What is the difference between impact force sensors and common force sensors? ❯

Common force sensors are more suitable for measuring static or slowly changing loads, while impact force sensors have extremely fast response speeds, capable of capturing peak force changes in milliseconds or even microseconds.

Q3: What are the advantages of an impact force sensor? ❯

The impact force sensor has an extremely fast response speed, making it suitable for high-speed event detection. Highly durable and adaptable to high-frequency impact environments. Highly accurate and capable of capturing true peak forces.
