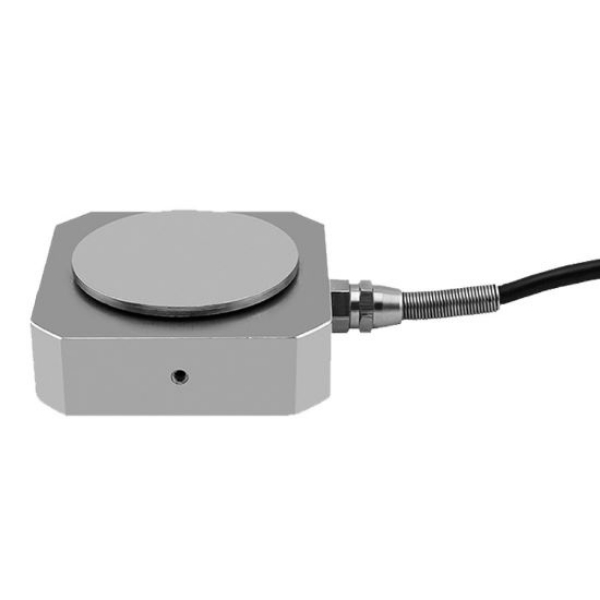

Pedal Force Sensor, 10-150kg

SKU: SUCH-FS-ZCB518

$388.62

● The pedal force sensor has a measurement range of 10-150 kg ● Made of stainless steel, it has a safe overload of 150% F.S ● Input impedance 700 ± 5 Ω, output impedance 700 ± 5 Ω ● Recommended excitation voltage 3-10 V DC

With Transmitter *
With Display Controller *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Low price pedal force sensor for sale, measuring range 10-150kg. The pedal force sensor has a sensitivity of 1.2-0.2MV/V and a zero-point output of ±2% F.S. The pedal force sensor is made of stainless steel and features an input impedance of 700 ± 5Ω, an output impedance of 700 ± 5Ω, and an insulation resistance of ≥ 5000MΩ/100V. SUCH ideal pedal force sensor is suitable for applications in smart manufacturing, robotics, automotive, and other industries.

Note: The force sensor cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Feature

High-precision strain gauge: Heat-resistant, stable, accurate, and low-temperature resistant.
Stainless Steel: High mechanical fatigue resistance, good permeability, and corrosion-resistant surface.
High-precision testing: Accurate measurement data and high detection accuracy.
Wide Application Range: A Wide range of measurement ranges, suitable for a variety of applications.

Pedal force sensor feature

Dimension (Unit: mm)

Size of pedal force sensor

Specs

Range	10-150 kg
Sensitivity	1.2-0.2 MV/V
Zero Point Output	±2% F.S
Non-Linearity	±0.3% F.S
Hysteresis	±0.05% F.S
Repeatability	±0.05% F.S
Creep	0.1% F.S/30 min
Temperature Sensitivity Drift	0.05% F.S/10°C
Temperature Effect on Zero Point	0.05% F.S/10°C
Input Impedance	700 ± 5Ω
Output Impedance	700 ± 5Ω
Insulation Resistance	≥5000 MΩ/100V
Recommended Excitation Voltage	3-10V DC
Temperature Compensation Range	-10°C~60°C
Operating Temperature Range	-20°C~80°C
Safe Overload	150% F.S
Ultimate Overload	200% F.S
Cable Size	Ø3*3m
Electrical Connections	Input: Red (+) Black (-) Output: Green (+) White (-)
Material	Stainless steel

Application

Automotive Manufacturing

Electronics Industry

Robotics Industry

FAQ

Q1: What is a pedal force sensor? ❯

A pedal force sensor is a sensor specifically designed to measure the force applied to the pedal. It senses and outputs the pedal force in real time, enabling the control system to determine the user's intention. A pedal force sensor is a sensor specifically designed to measure the force applied to the pedal. It senses and outputs the pedal force in real time, enabling the control system to determine the user's intention.

Q2: What are the advantages of a pedal force sensor? ❯

The pedal force sensor has a fast response time and can detect force changes in real time, making it suitable for dynamic applications. Its compact structure makes it easy to integrate into the pedal or pedal bearing structure. It is shock-resistant and vibration-resistant, making it suitable for harsh environments.

Q3: What are the uses of a pedal force sensor? ❯

The pedal force sensor is used to detect brake pedal force and improve brake system control accuracy. It is used to measure pedal force and adjust the power assist. It can also measure the force performance of various pedals.
