3 Axis Force Sensor, 0-500/1000N

SKU: SUCH-FS-3C

$2,118.30

● Measures X, Y, and Z axis forces with optional ranges 0~500N/0~1000N ● Output sensitivity 1.0 to 1.5 MV/V, excitation voltage 12V DC ● Operating temperature -10~+65°C, temperature compensation 20~60°C ● Safe overload rate 150% F.S, zero point output ±1% F.S

Capacity *
With Transmitter *
With Display Controller *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

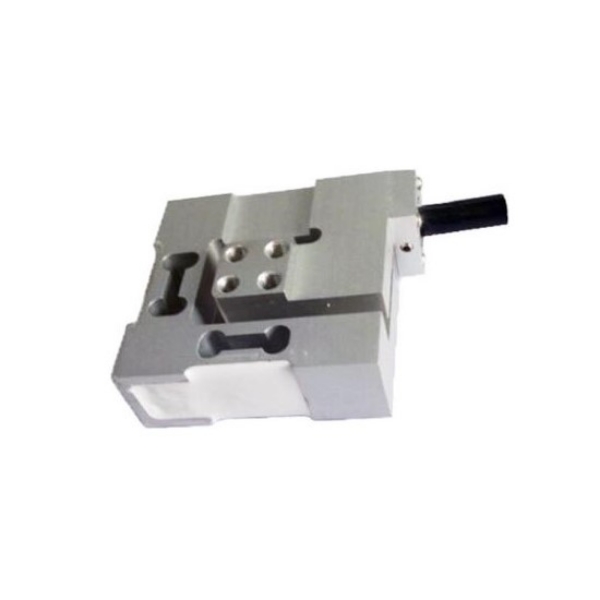

High-precision 3 axis force sensors for sale online. Three-axis force sensors are multi-dimensional force sensors used to measure X, Y, and Z axis forces. SUCH 3 axis force sensor offers an output sensitivity of 1.0 to 1.5 MV/V, operates within a temperature range of -10 to +65°C, and utilizes a 12V DC excitation voltage. They offer high accuracy and a sensitive response.

Note: The force sensor cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Feature

Resistive strain gauge, using high-precision strain gauges, is heat-resistant, stable, accurate, and low-temperature resistant.
Three-component force measurement, high accuracy, wide application range, and stable and reliable performance.
Selected high-quality stainless steel offers excellent mechanical fatigue resistance and a corrosion-resistant surface.

Dimension (Unit:mm)

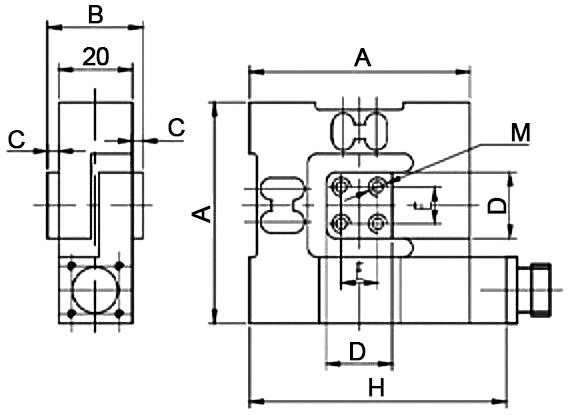

Size of 3 axis force sensor

Rang Fx, Fy, Fz	A	B	C	D	E	H	M
500 N	60	26	3	18	10	70	2X4-M5
1000N	80	26	3	25	12	90	2X4-M6

Specs

Output Range	0-500N, 0-1000N (optional)
Output Sensitivity	1.0-1.5MV/V
Overall Accuracy	±0.1%, ±0.3%, ±0.5% (optional)
Temperature Compensation Range	20~60°C
Operating Temperature	-10~+65°C
Zero Point Temperature Effect	±0.1%F.S./10°C
Zero Point Output	±1%F.S
Excitation Voltage	12V DC
Insulation Resistance	2000MΩ/100V DC
Input Resistance	700±10Ω, 350±10Ω
Output Resistance	700±5Ω, 350±5Ω
Safety Overload Rate	150%F.S
Standard Cable Length	3m
Electrical Connection	12-wire

Application

Automotive Manufacturing

Electronics Industry

Robotics Industry

FAQ

Q1: What is the 3 axis force sensor? ❯

The 3 axis force sensor is a sensor that can simultaneously measure forces acting on an object in three orthogonal directions (usually X, Y, and Z), providing real-time information on the force applied to the object in three dimensions.

Q2: What are the advantages of three axis force sensor? ❯

The ability to simultaneously obtain force information in three directions reduces the number of sensors, simplifies measurement system design, improves measurement accuracy and real-time performance, and is suitable for complex mechanical scenarios.

Q3: How does a 3 axis force sensor work? ❯

The 3 axis force sensor operates based on the resistance strain gauge principle. When an external force acts on the sensor, the elastic element undergoes a slight deformation, which in turn causes strain on the resistance strain gauge attached to its surface. This resistance change is converted into a voltage signal output via a Wheatstone bridge circuit. This orthogonal arrangement of strain gauges allows for simultaneous detection of forces in the X, Y, and Z directions.
