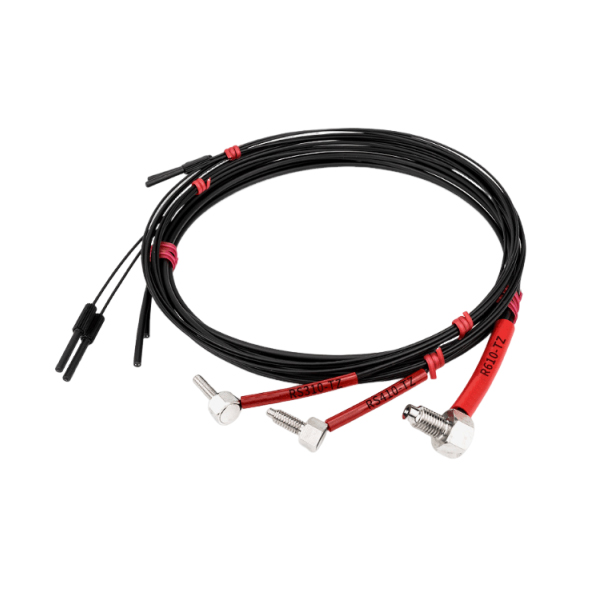

Reflective Fiber Optic Probe, Right Angle

Name: Reflective Fiber Optic Probe, Right Angle
Brand: Such.com
SKU: SUCH-OPS-RA
Price: 88.99 USD
Availability: InStock
Rating: 5.0 (1 reviews)

1 review(s) | Add your review

SKU: SUCH-OPS-RA

$88.99

● Right angle fiber optic sensor head ● M3/M4/M6 thread size ● Sensing distance 5~60mm ● Fiber core 0.5/1mm

Thread Size *
Cable Length *
With Matched Amplifier *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

Reflective fiber optic probe is designed for use with all fiber optic amplifiers and supports M3, M4, and M6 thread sizes. It offers a sensing distance of 5–60 mm and uses a 0.5 mm or 1 mm fiber core for stable reflective detection. SUCH fiber optic probe features stainless steel or copper housings for durability and a plastic fiber core that provides good light transmission, low signal loss, and flexible installation in confined spaces.

Feature

Reflective fiber optic probe feature

Diffuse Right-Angle Fiber Optic Sensor: Compatible with all fiber optic amplifiers for general detection applications.
Reliable Performance: Fiber optic probe provides stable signal output with low loss, abrasion resistance, and corrosion resistance.
Durable Construction: M3 and M4 heads use stainless steel for strength and rust resistance; the M6 head uses solid copper with a nickel-plated surface for improved aging resistance.
Good Light Transmission: High-transparency plastic fiber core ensures stable signal transfer, low loss, and strong flexibility without easy breakage.

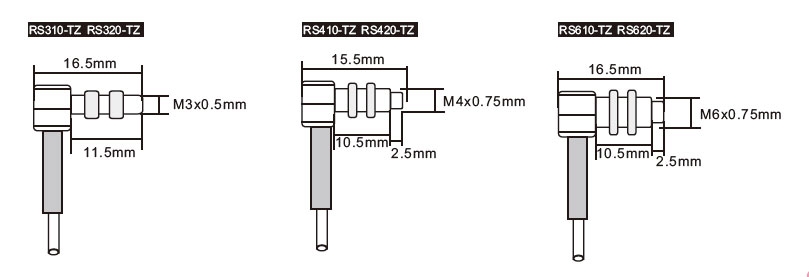

Dimension (Unit: mm)

Reflective fiber optic probesize

Specs

Model	SUCH-LSDRS310-TZ	SUCH-LSDRS410-TZ
Thread Size	M3*0.5mm	M4*0.75mm
Fiber Optic Cable Length	1M	1M
Fiber Core	0.5mm	0.5mm
External Diameter	1.0mm	1.0mm
Sensing Distance	5~60mm±10%	10~60mm±10%
Adjustable Sensing Distance	0~48mm	0~48mm
Fiber Tube Material	Stainless steel	Stainless steel
Product Size	M3*16.5-TZ	M4*15.5-TZ
Net Weight	3.0~4.0g	4.0~6.6g

Model	SUCH-LSDRS610-TZ	SUCH-LSDRS320-TZ
Thread Size	M6*0.75mm	M3*0.5mm
Fiber Optic Cable Length	1M	2M
Fiber Core	1.0mm	0.5mm
External Diameter	2.2mm	1.0mm
Sensing Distance	20~80mm±10%	5~60mm±10%
Adjustable Sensing Distance	0~64mm	0~48mm
Fiber Tube Material	Copper nickel plating	Stainless steel
Product Size	M6*16.5-TZ	M3*16.5-TZ
Net Weight	11.0~20.0g	3.0~4.0g

Model	SUCH-LSDRS420-TZ	SUCH-LSDRS620-TZ
Thread Size	M4*0.75mm	M6*0.75mm
Fiber Optic Cable Length	2M	2M
Fiber Core	0.5mm	1.0mm
External Diameter	1.0mm	2.2mm
Sensing Distance	10~60mm±10%	20~80mm±10%
Adjustable Sensing Distance	0~48mm	0~64mm
Fiber Tube Material	Stainless steel	Copper nickel plating
Product Size	M4*15.5-TZ	M6*16.5-TZ
Net Weight	4.0~6.6g	11.0~20.0g

Standard Detector	200*200mm white cardboard
Fiber Material	Plastics
Minimum Detection Object	Φ0.1mm
Sheath Color	Red
Certification	CE

Application

Packaging Lines

Electronics Assembly

Precision Part Detection

FAQ

Q1: Why choose a right-angle structure over a straight type? ❯

It enables side-facing detection when front-facing installation is not possible.

Q2: Is the right-angle probe more difficult to install? ❯

Installation is similar to straight types; only alignment direction differs.

Q3: Can the right-angle head rotate during installation? ❯

Yes, it can be rotated to match the sensing direction before tightening the nut.

1 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: Eric Livingston | Date: 8/4/2026 9:47 AM

reflective fiber optic probe is a nice upgrade

I bought this to replace a worn fiber probe on an older machine. The reflective fiber optic probe was easy to install and worked right away after adjusting the position. The cable is flexible, which helped a lot in a crowded area. I had to fine-tune the sensing distance a little, but overall it has been a good replacement.
