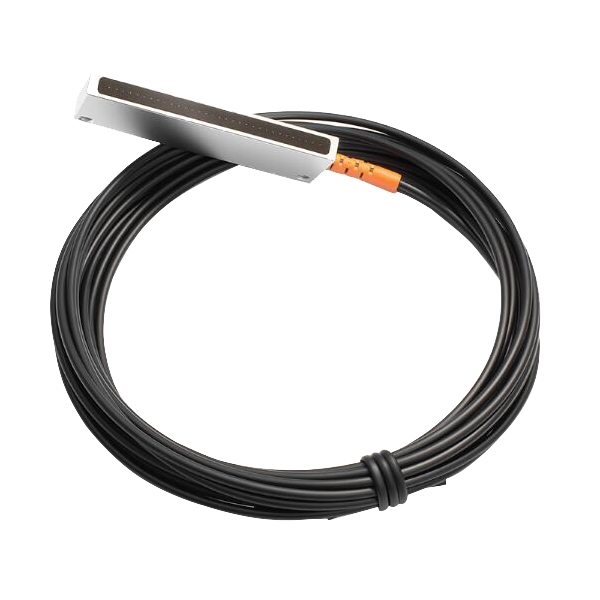

Side-Sensing Rectangular Fiber Optic Sensor

Side sensing rectangular fiber optic sensor provides diffuse-reflective detection using a lateral sensing position, enabling reliable target recognition within a 15-120 mm range. Its coaxial multi-core fiber ensures strong light transmission with low loss, while the uniform light-emission design supports accurate detection of irregular shapes, vibrating objects, and narrow gaps. Built with a reinforced protection sleeve and sealed construction, SUCH rectangular fiber optic sensor offers resistance to bending, oil, dust, and environmental interference. It operates together with a fiber amplifier powered by DC 12–24V, allowing easy integration with PLCs, relays, counters, and signal acquisition units.

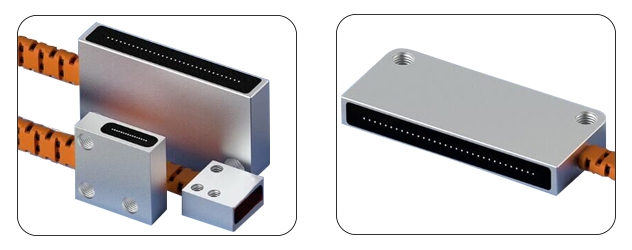

Feature

• High Light Transmission: Rectangular fiber optic sensor provides strong optical clarity with stable light output and low attenuation for accurate detection.
• High Protection Level: Designed with enhanced sealing to resist dust, oil, and environmental interference for reliable industrial use.
• Stable Performance: Ensures consistent detection with strong resistance to noise, vibration, and temperature fluctuations.
• Quality Materials: Fiber output signals can interface with counters, relays, PLCs, controllers, and signal acquisition devices.
• Uniform Light Spot: Multiple micro-fiber strands emit evenly to detect irregular objects, vibrating parts, or narrow gaps with precision.
• Matrix Fiber with Amplifier: Must be paired with an amplifier and powered by DC 12-24V to prevent short circuits or damage.
• Multiple Detection Options: Light-emitting areas from 5-120 mm and adjustable reflection distances allow flexible selection for various object sizes.
• Reinforced Protection Sleeve: Tail-end design reduces cable stress, offering bend resistance, oil resistance, and longer service life.
• Coaxial Multi-Core Fiber: Uses imported 32-core high-transparency fiber for low loss, strong transmission performance, and anti-aging durability.

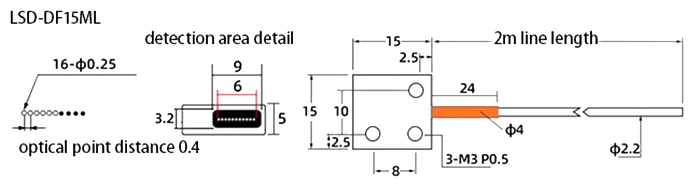

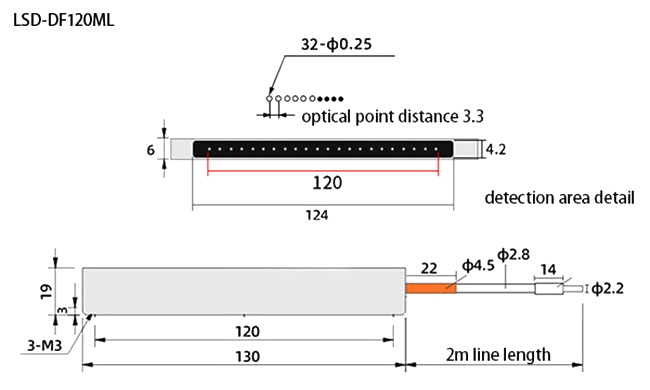

Dimension (Unit: mm)

Click on the PDF file to view the size information for other specifications.

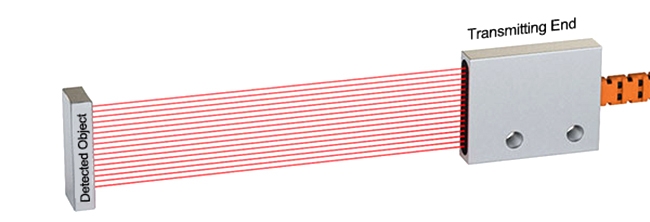

Rectangular Detection Type
