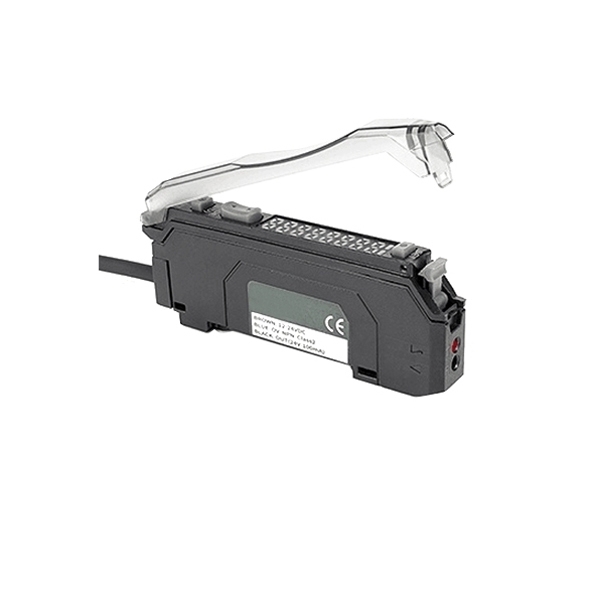

Fiber Optic Sensor Amplifier, Dual Digital

Dual digital fiber optic sensor amplifier delivers high-accuracy object detection with adjustable sensitivity, multi-level signal amplification, and strong anti-interference performance. It supports NPN/PNP and NO/NC outputs, offering flexible integration with various control systems. With both diffuse reflective and through-beam detection options, it adapts to different sensing tasks across a 10-30 cm range. Light intensity, delay timing, and zone settings can be finely tuned for stable detection in diverse environments. Featuring IP65 protection and 12-24 VDC operation, SUCH amplifier is durable and reliable, but requires a separate fiber optic cable for use.

Feature

• Precision Detection: Fiber optic sensor amplifier responds accurately to thin or small objects when the sensitivity is properly set.
• Amplification Levels: Supports one to four signal amplification levels for adjustable long-distance or short-distance detection.
• Anti-Interference Modes: Offers four selectable modes allowing multiple units to operate simultaneously without mutual interference.
• Light Intensity Control: Adjusts emitted light strength from 0-100 to maintain stable operation in different environments.
• Delay Mode: Allows adjustable output timing after object detection to meet application requirements.
• Zone Setting: Enables detection only within a designated area while ignoring other positions.
• NO/NC Output Options: Allows switching between normally open and normally closed output based on application needs.
• Background Suppression: Eliminates influence from reflective backgrounds, preventing false triggers.
• Fiber Required for Operation: Must be used with a separate fiber optic cable (sold separately) to function properly.

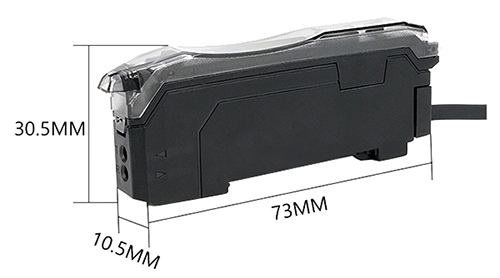

Dimension (Unit: mm)

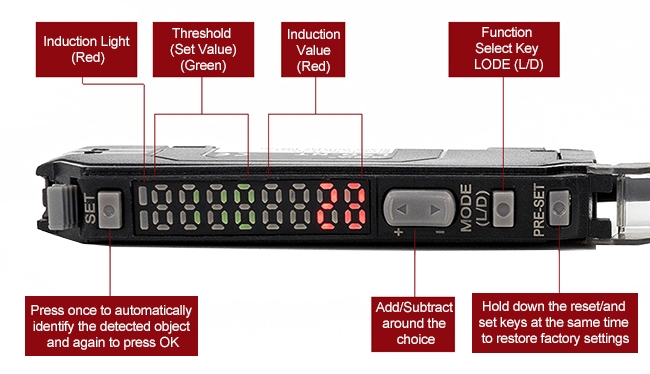

Detail

Wiring Drawing
