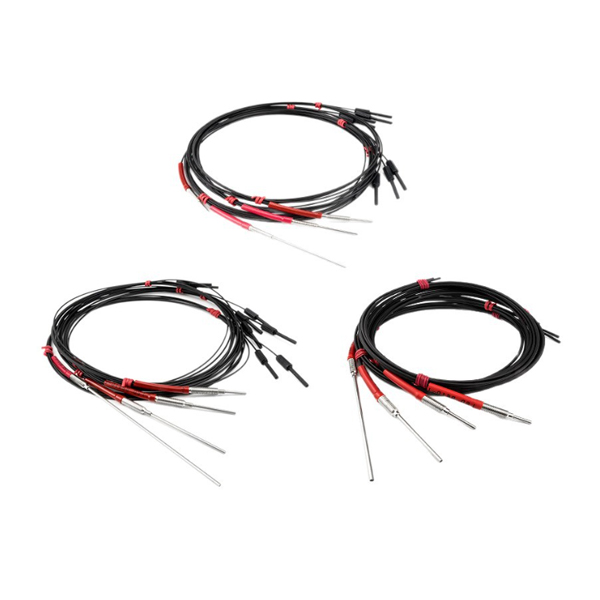

Plastic Optical Fiber Sensor, M3/M4/M6

Plastic optical fiber sensor features a ring-type fiber structure that uses a center fiber for emission and surrounding fibers for reception to improve detection accuracy and reduce errors. It is built with a stainless steel fiber tube and a durable metal housing, with M3 and M4 models using stainless steel and the M6 model using thickened copper with nickel plating for extended lifespan. The high-quality plastic optical fiber provides good light transmission, fast signal transfer, and low loss, while its reinforced construction offers strong bending resistance and long-term durability. SUCH fiber sensor supports an adjustable sensing distance of 0-80 mm, is available in thread sizes M3×0.5 mm, M4×0.75 mm, and M6×0.75 mm, and is CE-certified for reliable performance in various applications.

Feature

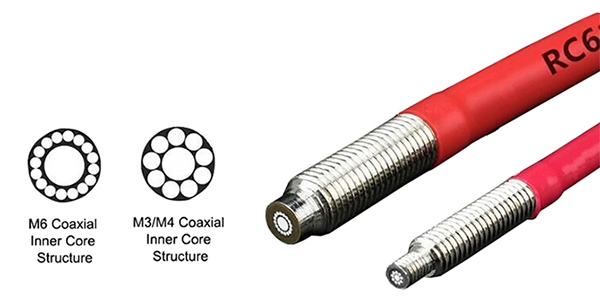

• Ring-Type Fiber Structure: Plastic optical fiber sensor uses center fiber for emission and ring fibers for reception, improving detection accuracy and reducing errors.
• Durable All-Metal Housing: M3 and M4 models use stainless steel for corrosion resistance and strength; M6 uses thickened copper with nickel plating for longer service life.
• High-Quality Optical Fiber: Made from high-grade plastic fiber that resists bending and breakage, provides good light transmission, fast signal transfer, and low loss.
• Reinforced Fiber Construction: The fiber cable structure is strong, durable, and offers good anti-aging performance for long-term use.

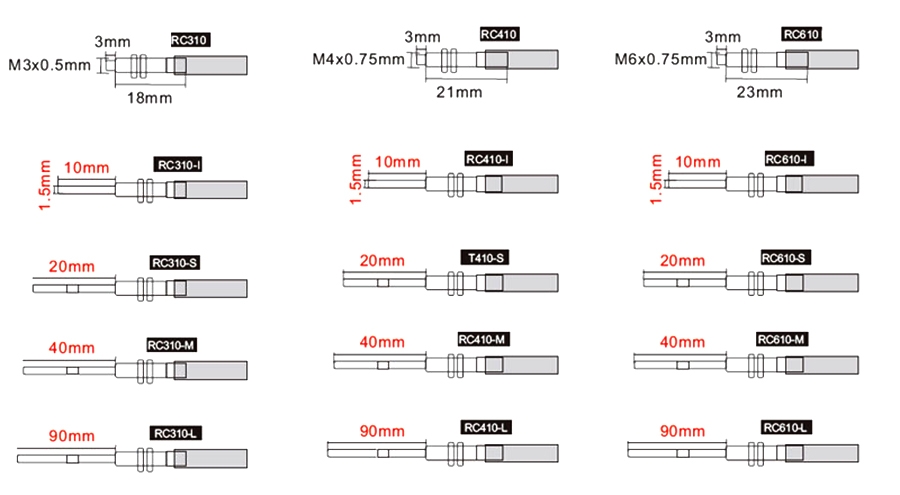

Dimension (Unit: mm)
