Fiber Optic Sensor Amplifier, Single Digital

Fiber optic sensor amplifier delivers stable and precise detection with adjustable sensitivity, multiple operating modes, and flexible light-intensity control for optimized performance in various environments. It supports NPN/PNP and NO/NC output, offering broad compatibility with industrial control systems. With a 3–8 cm sensing range, 12-24V DC operating voltage, and IP65 protection rating, SUCH optic sensor amplifier ensures reliable operation even in demanding conditions. The built-in delayed-output function further enhances control accuracy, making it ideal for high-precision fiber optic sensing applications.

Feature

• Sensitivity Adjustment: Single digital fiber optic sensor amplifier allows fine-tuning of detection sensitivity based on actual application needs to reduce errors and improve accuracy.
• Delayed Output: Enables adjustable output delay time, ensuring signals are transmitted only when required.
• Multiple Operating Modes: Supports selectable modes for different environments to enhance detection adaptability.
• Light Intensity Control: Adjusts emitted light levels for stable performance under various working conditions.

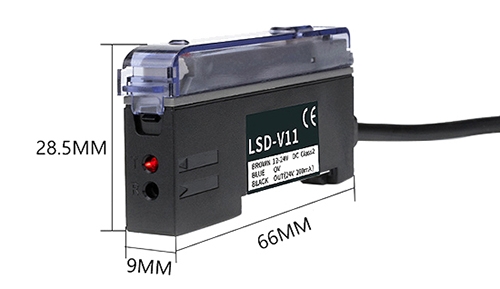

Dimension (Unit: mm)

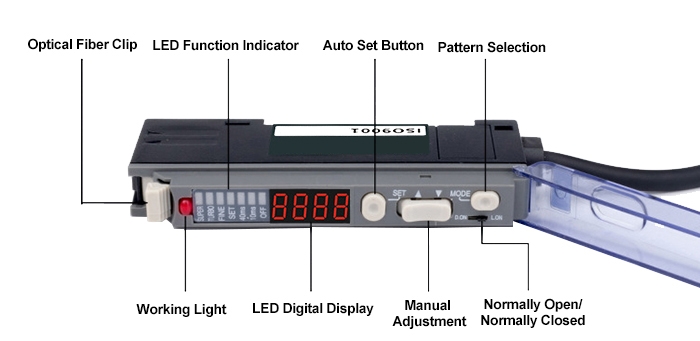

Detail

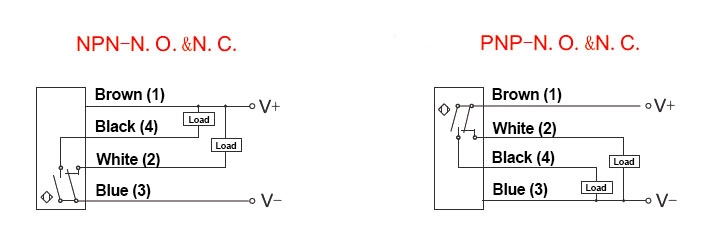

Wiring Drawing
