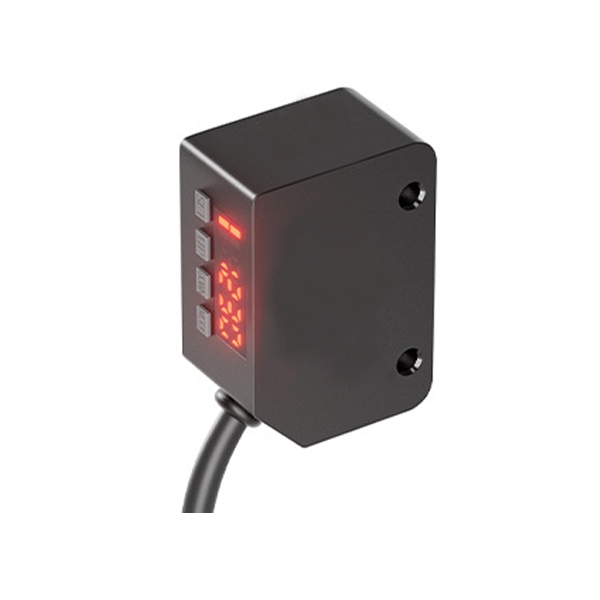

Digital Photoelectric Sensor, 100-1500mm

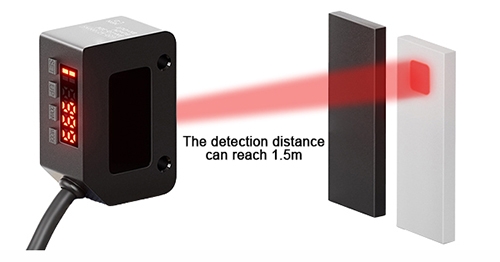

High-quality digital display photoelectric sensors for diverse applications now available for sale. With 650nm red light and a 10–70mm spot size, the photoelectric sensor accurately identifies objects of varying materials while maintaining high sensitivity when detecting black workpieces. Supporting a long-range detection distance of 100–1500mm, NPN/PNP outputs, IP65 protection rating, and multiple built-in safeguards, it comprehensively enhances operational safety.

Feature

• Normally Open/Normally Closed Switchable: This photoelectric sensor features a delay function with 50μs high-speed response. Spot size ranges from 10-70mm, with smaller spots at closer distances and larger spots at greater distances.
• Color Differentiation via Zone Settings: The digital photoelectric sensor converts reflected light intensity into numerical values. By setting upper and lower threshold limits, it locks onto a specific sensing position while blocking other areas, enabling simple differentiation between colors with significant contrast.
• Multi-Protection Design: Incorporates short-circuit protection, overload protection, and reverse polarity protection. Effectively safeguards the sensor itself while preventing damage to connected equipment, ensuring enhanced safety and stability.
• Delay Output: Utilizing next-generation modular automation manufacturing, the SUCH Sensor offers freely configurable delay sensing from 0.01 to 9.9 seconds, delay disconnection, and timed output functions. This eliminates the need for external programming devices.

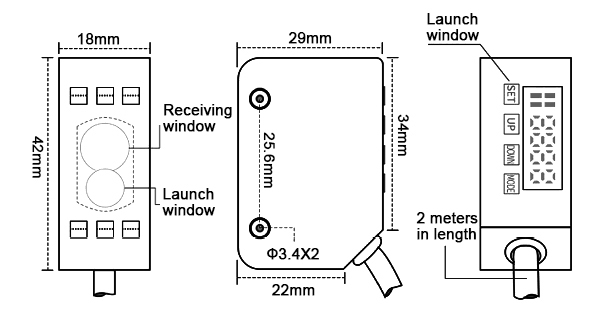

Dimension (unit: mm)

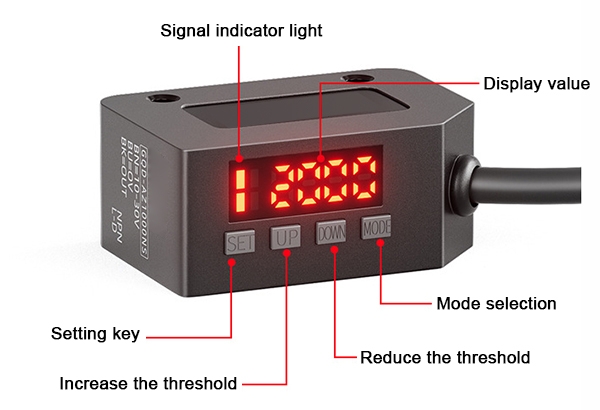

Detail

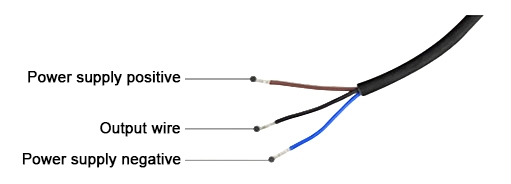

Wiring Diagram

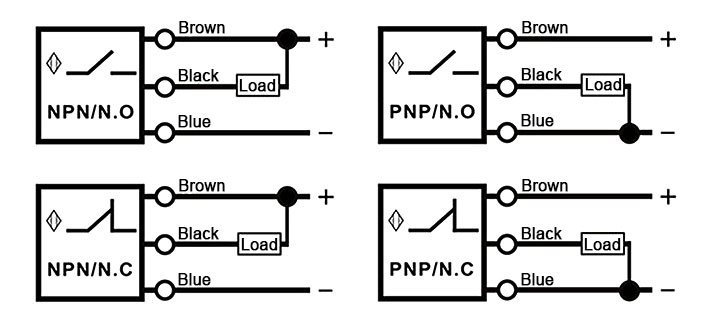

Output Wiring Diagram
