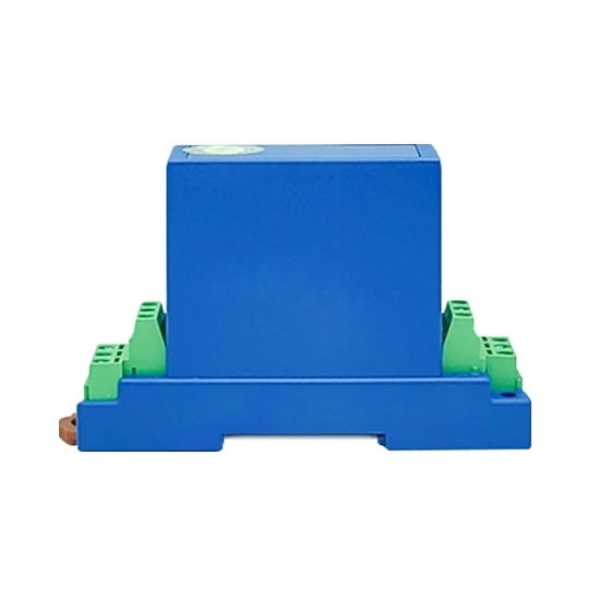

Electrical Current Sensor, DC 1mA/20mA/0.1A/1A to 5A

SKU: SUCH-DCC-5A
$139.62
● Input current DC 1mA-5A ● Output DC 12±8mA, 10±10mA ● Accuracy 0.5, Load Capacity 6V ● Power DC12V/15V/24V
*
*
*
🚚 Free shipping
🕒 Delivery date: 6-12 days
🔁 30-day Returns
Overview

SUCH electrical current sensor utilizes advanced frequency modulation and optical isolation technology to ensure accurate, real-time measurement of bidirectional DC current. With output signals of DC 12±8mA or 10±10mA and 0.5% accuracy, DC current sensor offers low power consumption, fast response time, and stable performance across wide temperature ranges. Designed with a modular snap-fit housing and vibration-resistant terminals, this sensor is ideal for battery systems, energy storage, and DC power monitoring applications requiring reliable and isolated current detection.

Feature

  • Accurate Bidirectional Current Tracking: Converts bidirectional DC input into a center-zero tracking output (IG), allowing for precise real-time current monitoring.
  • Highly Stable in Varying Environments: Electrical current sensor supports operation across a broad temperature range, ensuring performance stability in complex or harsh conditions.
  • Low Energy Usage & Thermal Stability: Engineered for minimal power draw and reduced thermal drift to support continuous and efficient operation.
  • Modular Snap-Fit Construction: Designed with a compact modular housing that allows fast installation without complex assembly.
  • Secure Terminal Interface: DC current sensor equipped with vibration-resistant terminal connections to maintain reliable electrical contact during operation.
  • Fast Signal Response: Enables near-instantaneous feedback for dynamic system control with rapid response characteristics.
  • Advanced Measurement Technology: Employs frequency modulation combined with optical isolation to accurately measure bidirectional DC current while maintaining excellent electrical isolation.
  • Exceptional Precision & Safety: Offers high-accuracy current detection with strong electrical isolation for use in sensitive electronic systems.
  • Purpose-Built for DC Current Systems: Ideal for dual-direction DC current measurement in energy storage, battery systems, and DC-powered equipment.

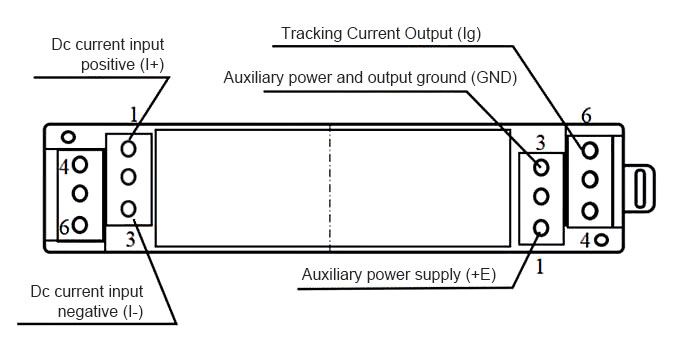

Wiring Method

Electrical current sensor 5a wiring

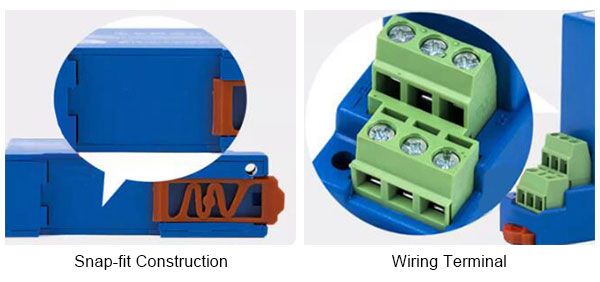

Deatil

Electrical current sensor 5a detail

Specs
Input Current DC 1mA, 5mA, 20mA, 50mA, 0.1A, 0.2A, 0.5A, 1A, 2A, 5A (Customizable, 10 times rated input current) (optional)
Allowable Overload 10 times the rated input current, sustained for 1 second, with a 300-second interval, repeatable 5 times
Linear Measurement Range 0%~120% of rated input
Input Impedance 200mV/Ix (where Ix represents the measured current)
Output Type DC 12±8mA, 10±10mA (optional)
Load Capacity 6V
Auxiliary Power DC +12V, +15V, +24V
Accuracy Class 0.5
Response Time ≤350ms
Environmental Temperature -25°C ~ +70°C
Static Current ≤33mA
Weight <100g

Note: Other parameters contact customer service.

Application
Engineering monitoring

Engineering Monitoring

Power grid monitoring

Power Grid Monitoring

Power supply equipment

Power Supply Equipment

FAQ


The sensor is designed with low temperature drift components, but ambient temperature extremes can still cause slight variations. Typical temperature coefficient is within ±100 ppm/°C, and it's best to operate the sensor within its rated temperature range (e.g., -10°C to 60°C).



Factory calibration is usually sufficient for most applications, but for high-precision or regulated environments, a routine calibration check may be performed annually using a calibrated current source.
