AC Current Sensor, 1A/5A/10A/50A/100A to 150A

Isolated AC current sensor adopts a linear electromagnetic isolation principle and is designed for accurate and safe current measurement in power distribution cabinets, PLCs, data loggers, and digital meters. SUCH AC current sensor has a high-permeability magnetic core, low-resistance pure copper coils, precision manual insulation winding, and a flame-retardant housing for enhanced safety and long-term reliability. Integrated voltage regulation and a built-in surge protection module ensure stable and continuous operation. The sensor supports measuring ranges from 0-1A up to 150A, with output signals of DC 0-20mA, 4-20mA, 0/1-5V, or 0-10V. It operates on 24VDC, 110VDC, or 220VDC power supply and offers hole diameters of 4, 8, 12, or 15 mm to suit various installation needs.

Feature

• Advanced Insulation Process: Manually wound with precision insulation film, enhancing electrical isolation and minimizing electromagnetic interference for cleaner signal output.
• Flame-Retardant Housing: Encased in flame-resistant materials, ensuring a high level of safety and reliability in demanding industrial environments.
• Wide System Compatibility: The isolated current sensor adopts a linear electromagnetic isolation principle and is designed to work reliably with power distribution cabinets, data loggers, digital display meters, and PLCs, supporting a wide range of applications.
• Surge and Lightning Protection: SUCH current sensor equipped with a high-isolation anti-surge module to safeguard against power surges and improve operational safety.
• Optimized Coil Structure: Engineered with high-magnetic permeability cores, dual pure copper windings, insulating film layers, isolation barriers, and protective coatings to ensure accurate signal transformation and long service life.
• Stable Power Circuitry: Integrated with a voltage regulation chip to provide consistent and dependable power for continuous operation.
• Upgraded Pure Copper Coils: This AC current sensor has low-resistance copper coils that reduce heat generation and maintain stable, high-efficiency performance.

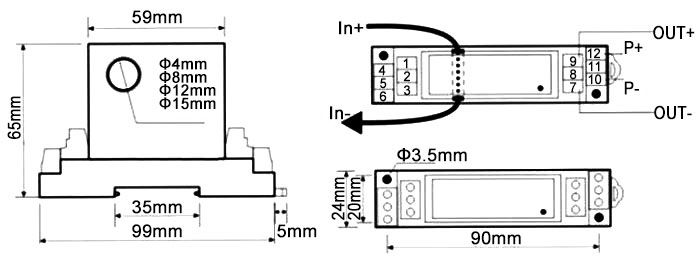

Dimension (Unit:mm)

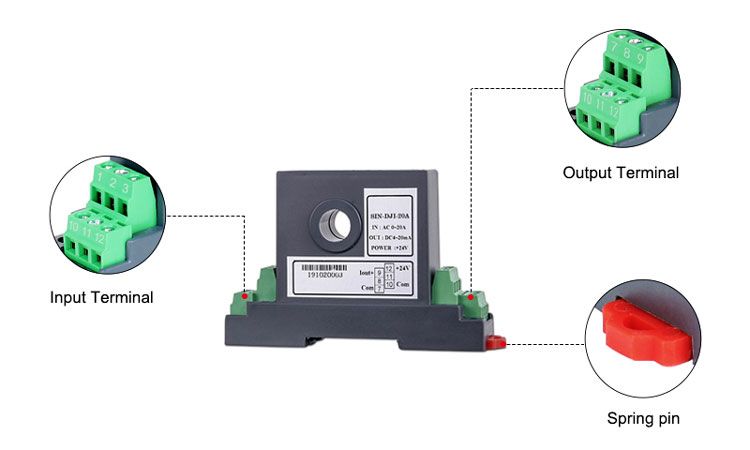

Detail

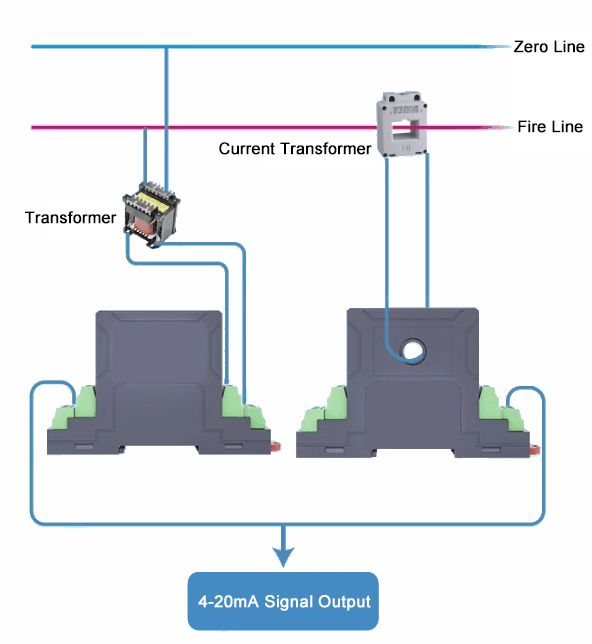

High Current Voltage Monitoring Program
