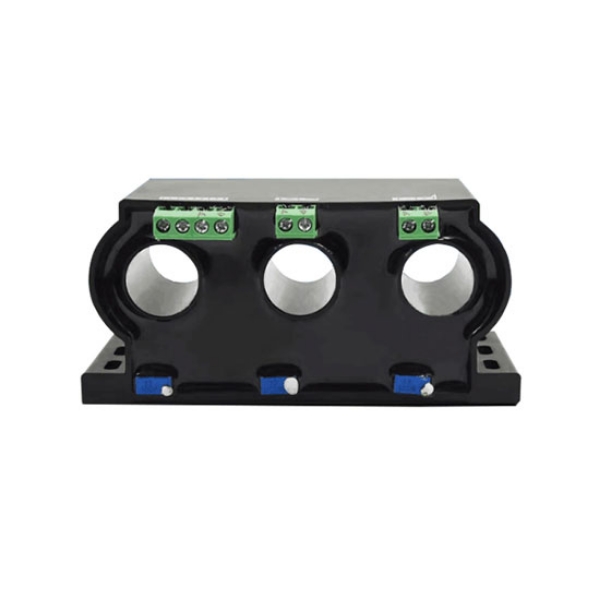

AC Current Transducer, 3 Phase, 0.5A/5A/10A/20A/50A to 80A

SKU: SUCH-ACC-3P
$160.99
● 3 Phase AC 0-0.5A/1A/10A/80A ● DC 12V/24V power supply ● DC 4-20mA/0-5V/0-10V output signal ● 0.5%FS accuracy
*
*
*
🚚 Free shipping
πŸ•’ Delivery date: 6-12 days
πŸ” 30-day Returns
Overview

Electromagnetic induction principle, real-time measurement of AC current in the power grid, constant current technology and linear temperature compensation technology, its isolation and transformation into a standard DC signal output. The SUCH ac aurrent transducer provides current signal for PLC or DCS system directly convert the measured main loop AC current into DC4~20mA constant current loop standard signal output according to linear ratio, and continuously deliver it to the receiving device (computer or display instrument).

Feature

  • Epoxy Resin Potting: High-temperature resistant epoxy encapsulation enhances durability and protects the ac current sensor from harsh environments.
  • Advanced Internal Components: Built with precision components, the ac current transducer delivers stable performance and accurate current measurement.
  • Premium Terminal Blocks: Features high-quality terminals for secure wiring and user-friendly installation.
  • Flat Screw Mounting: Compact design with flat screw fixing ensures easy and stable mounting in control cabinets.
  • Real-Time AC Current Measurement: Designed for real-time monitoring of 3-phase AC current, suitable for industrial energy management.
  • Isolated Signal Output: This ac current sensor adopts constant current and linear temperature compensation technologies to isolate and convert AC signals into standard DC output (e.g., 4-20mA or 0-5V), ensuring safe and accurate signal transmission.

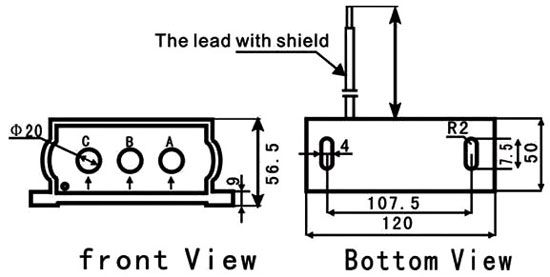

Dimension (Unit:mm)

AC current transducer 3 phase size

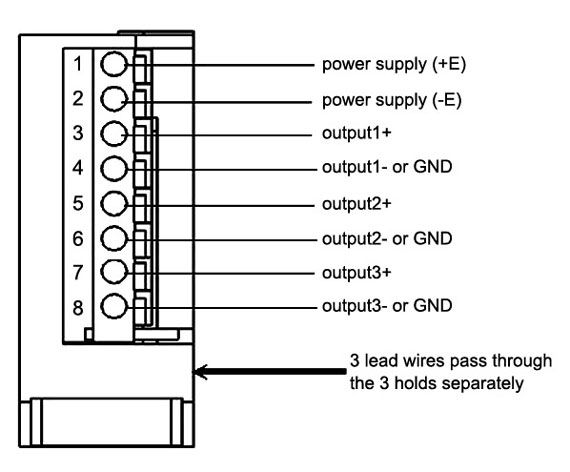

Wiring Diagram

AC current transducer 3 phase wiring

Specs
Measuring Range of Input Current * 3 phase AC 0-0.5A ~ 0-80A
Output Signal * DC 4-20mA, DC 0-20mA, DC 0-5V, DC 0-10V
Power Supply * DC 12V, DC 24V
Accuracy 0.5%FS
Linearity 0.1%FS
Isolation Voltage 3kV/50Hz/1min
Offset Voltage ≀10mV
Temperature Drift ≀100PPM/℃
Frequency Bandwidth 20~5kHz
Current Consumption <5mA+output current
Load Capacity Voltage output: 5mA, current output: 6V
Response Time <250ms
Overload Capacity 30 times nominal input
Work Temperature -10~+70℃
Storage Temperature -25~+85℃
Measuring Method Through-hole
Hole Diameter 20mm
Shipping Weight 1kg
Installation Screw fixation
Application
Industrial automation systems

Industrial Automation Systems

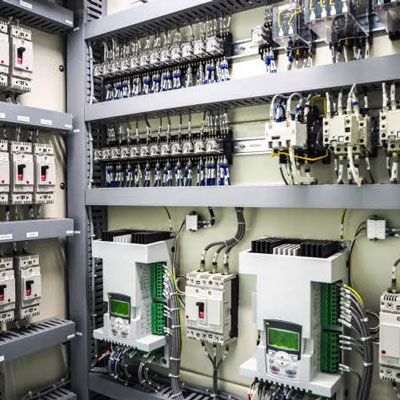

Distribution cabinets and power systems

Distribution Cabinets/Power Systems

Building intelligent management system

Building Intelligent Management System

FAQ
❯

While it measures the current in each phase, detecting unbalanced loads or phase loss would typically require additional monitoring or comparison logic in the PLC or control system.

❯

An AC current sensor generally refers to any device that detects AC current, often outputting a raw signal. An AC current transducer, like the SUCH AC Current Transducer, not only senses current but also converts it into a standardized DC signal (e.g., 4–20mA) with electrical isolation for integration with control systems.

❯
