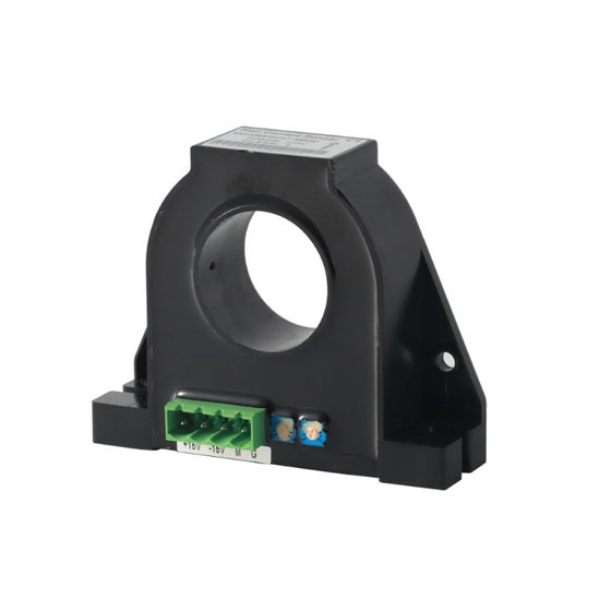

Closed Loop Hall Effect Current Sensor, 50A to 1500A

Name: Closed Loop Hall Effect Current Sensor, 50A to 1500A
Brand: Such.com
SKU: SUCH-HEC-CL1500
Price: 79.88 USD
Availability: InStock
Rating: 5.0 (1 reviews)

1 review(s) | Add your review

SKU: SUCH-HEC-CL1500

$79.88

● AC/DC 50-1500A measuring range ● 20/32.5/40/60 mm hole diameter ● 0-4VDC /0-5VDC output signal ● ±15VDC power supply

Hole Diameter Selection *
Measuring Range *
Measuring Range *
Measuring Range *
Measuring Range *
Output Signal *

Qty:

🚚 Free shipping

🕒 Delivery date: 6-12 days

🔁 30-day Returns

Overview
Specs
Application
FAQ
Reviews

Overview

SUCH closed loop hall effect current sensor has high-precision measurement of AC, DC, and pulsed currents using advanced zero-flux technology for superior accuracy and stability. Featuring galvanic isolation between input and output, electrical current sensor ensures safe operation in high-voltage environments. Housed in a UL94-V0 flame-retardant enclosure with a non-contact through-hole design (20/32.5/40/60 mm), the sensor offers easy integration into power systems. With a ±15VDC power supply and 0-4VDC/0-5VDC output signal options, it is ideal for UPS systems, battery packs, inverters, and SMPS devices.

Feature

Wide Current Measurement Range: This closed loop Hall effect current sensor supports accurate measurement of AC, DC, and pulsed currents from 50A to 1500A, making it an ideal AC/DC current sensor for high-load applications.
Galvanic Isolation Between Primary and Secondary: Provides full electrical insulation between input and output circuits, ensuring safety and minimizing interference in sensitive electronic systems.
Advanced Zero-Flux Technology: Utilizes modulation-demodulation and zero magnetic flux principles to achieve precise and isolated detection of DC leakage and transient currents, enhancing the reliability of the closed loop Hall effect current sensor.
High Accuracy and Stability: Offers excellent linearity and long-term performance, with minimal drift, making it suitable for demanding power monitoring tasks in industrial and energy systems.
UL94-V0 Flame-Retardant Housing: The SUCH current sensor has a rugged insulating enclosure that meets UL94-V0 safety standards, providing superior fire resistance and operational safety.
Non-Contact Through-Hole Design: Supports perforated current sensing for non-intrusive monitoring, helping preserve conductor integrity and simplifying installation in compact systems.
Versatile Industry Applications: Perfectly suited for battery packs, UPS systems, inverter power supplies, and SMPS devices, this AC/DC current sensor ensures robust performance across multiple power electronics environments.

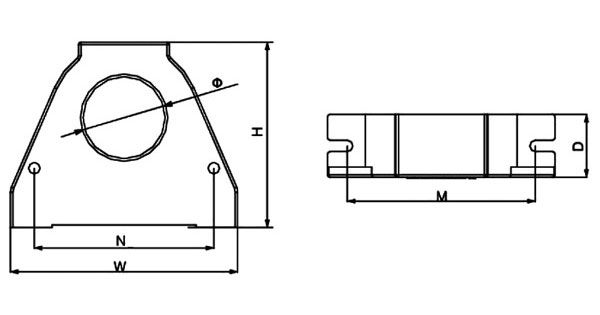

Dimension (Unit:mm)

Hall effect current sensor 50a to 1500a size

Φ	W	H	D	M	N
20	53	72	16	47	-
32.5	90	73.5	25	74.5	71
40	100	108	30	78	-
60	120	112	30	98	-

Wiring Diagram

Hall effect current sensor wiring

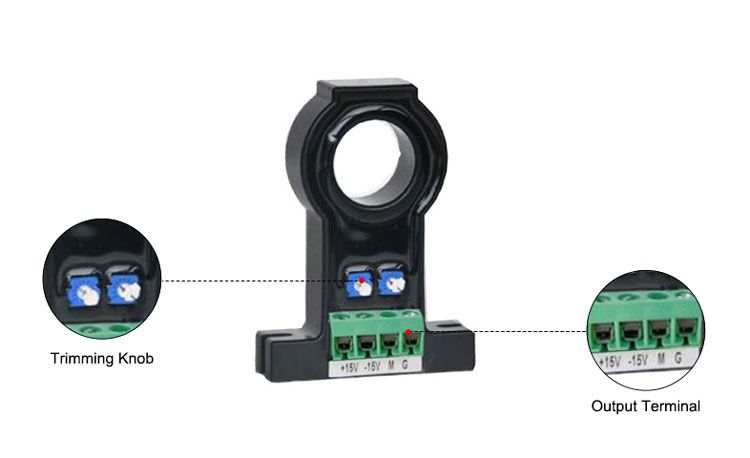

Detail

Hall effect current sensor 50a to 1500a detail

Specs

Hole Diameter	20mm/32.5mm/40mm/60mm
Measuring Range of Input Current (20mm)	AC/DC 0-50A ~ 0-500A
Measuring Range of Input Current (32.5mm)	AC/DC 0-100A ~ 0-800A
Measuring Range of Input Current (40mm)	AC/DC 0-200A ~ 0-1500A
Measuring Range of Input Current (60mm)	AC/DC 0-200A ~ 0-1500A
Output Signal	0-4VDC, 0-5VDC
Zero Offset Voltage	±20mV
Offset Voltage Drift	≤±1.0mV/℃
Linearity	≤0.2%FS
Power Supply	±15VDC
Accuracy	1.0%F.S.
Bandwidth	0~20kHz
Response Time	≤5us
Withstand Voltage	AC 2500V (between input, output and power supply)
Work Temperature	-25~+70℃
Storage Temperature	-40~+85℃
Humidity	≤95%RH (no dew formation, no corrosive gas)
Elevation	≤3500m
Shipping Weight	1kg
Measuring Method	Through-hole type
Installation	Screw fixation

Application

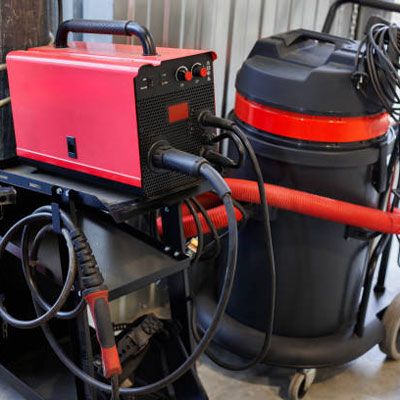

Welding and Plating Equipment

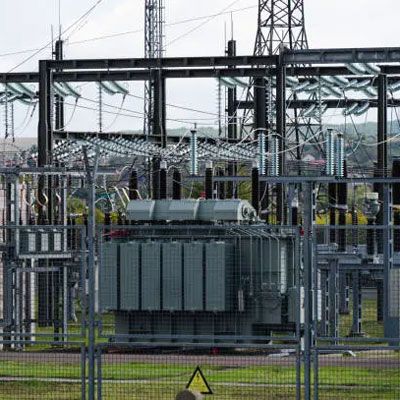

Power Distribution Systems

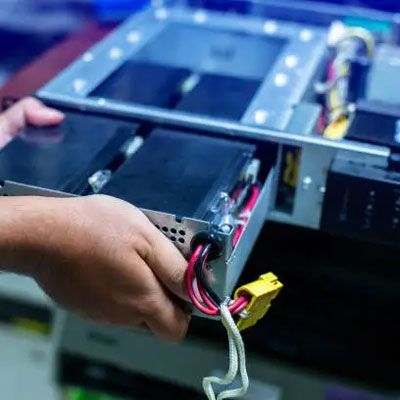

Frequency Converters and UPS Systems

FAQ

Q1: What is a closed loop Hall effect current sensor and how does it work? ❯

A closed loop Hall effect current sensor uses the Hall effect principle to measure current while employing a feedback loop to maintain zero magnetic flux in the core. When current flows through the conductor, it generates a magnetic field that is detected by a Hall element. The sensor drives a compensation current through a secondary winding to cancel this magnetic field, and the feedback current becomes proportional to the primary current. This closed-loop mechanism improves accuracy, linearity, and response time.

Q2: What are the key advantages of using a closed loop Hall effect sensor over an open loop type? ❯

Closed loop Hall sensors offer higher accuracy (typically ±0.5% or better), faster response times (less than 1 μs), and superior linearity. They also have a better temperature stability and lower offset drift. These features make them suitable for high-precision applications in power electronics, industrial drives, inverters, and motor control systems.

Q3: Can the Hall effect current sensor measure both AC and DC currents? ❯

Yes, the sensor can accurately measure AC, DC, and even pulsed currents, making it versatile for various applications including power converters, battery management systems, and variable frequency drives.

1 review(s)

Write your own review Close

Review title: *

Review text: *

Rating:

1 2 3 4 5

From: Wolfgang | Date: 5/15/2026 5:56 AM

Spot on precision, perfect closed loop hall effect current sensor

Ordered this closed loop hall effect current sensor because I needed a reliable way to monitor high amp battery testing in FL. Handles the current spikes with zero issues and readings are spot on with my reference meter. The terminal block feels plenty sturdy. Smooth transaction, arrived a day early.
