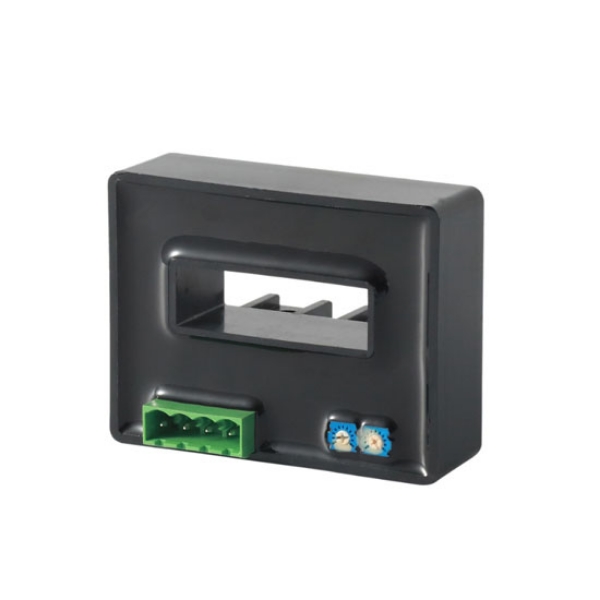

Closed Loop Hall Effect Current Sensor, AC/DC 0-2000A

SKU: SUCH-HEC-CL2000
$74.95
● AC/DC 0-2000A measuring range ● Hole size 20.5*10.5mm/43*13mm/52*15mm/52*32mm ● 0-4VDC /0-±5VDC output signal ● Power supply ±15VDC
*
*
*
*
*
*
🚚 Free shipping
🕒 Delivery date: 6-12 days
🔁 30-day Returns
Overview

SUCH Hall effect current sensor, AC/DC 0-2000A, enables accurate measurement of alternating, direct, and pulsed currents through zero-flux technology with closed-loop compensation and demodulation. It provides galvanic isolation between primary and secondary circuits, with a UL94-V0 flame-retardant housing suitable for industrial environments. The through-hole non-contact structure accommodates conductor sizes from 20.5×10.5mm to 52×32mm. Operating with a ±15VDC power supply, the current sensor offers 0-4VDC or 0-±5VDC output signals, applicable in UPS systems, battery storage, switch-mode power supplies, and inverter circuits.

Feature

  • Dual AC/DC Current Measurement Capability: Designed as a high-performance AC/DC current sensor, it can detect alternating, direct, and pulsed currents with precision across a wide range from 0-2000A.
  • Superior Electrical Isolation: This closed loop Hall effect current sensor ensures complete insulation between the primary conductor and the secondary output circuit, providing excellent protection for connected control systems.
  • High Precision with Zero Magnetic Flux Principle: Employs closed-loop compensation and demodulation techniques based on the zero-flux theory to achieve exceptional measurement accuracy, especially for small DC leakage currents.
  • Flame-Resistant and Durable Housing: The robust outer shell complies with UL94-V0 flammability standards, offering enhanced safety and durability for use in harsh industrial environments.
  • Stable and Reliable Performance: Engineered for excellent linear response and minimal thermal drift, ensuring consistent accuracy in long-term monitoring applications.
  • Through-Hole Non-Intrusive Sensing: Hall effect current sensor has a perforated structure that allows conductors to pass through without direct contact, simplifying installation and minimizing signal distortion.
  • Ideal for Power Electronics Applications: Widely adopted in battery energy storage systems, UPS units, switch-mode power supplies, and inverter circuits, this closed loop Hall effect current sensor delivers reliable current sensing for modern electrical systems.

Dimension (Unit:mm)

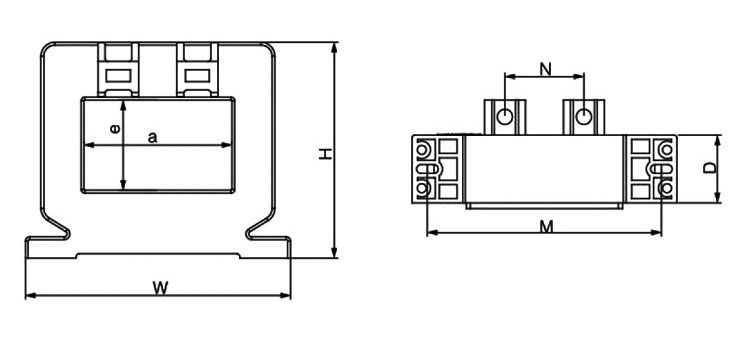

Hall effect current sensor 0 2000a size

Hole Size W H D a e M N
20.5*10.5 43 32.5 19 20.5 10.5 - -
43*13 74 57 22 43 13 - 22
52*15 94 60.5 26.5 52 15 83 28
52*32 94 76.5 24 52.5 32 83 28


Wiring Diagram

Hall effect current sensor wiring

Detail

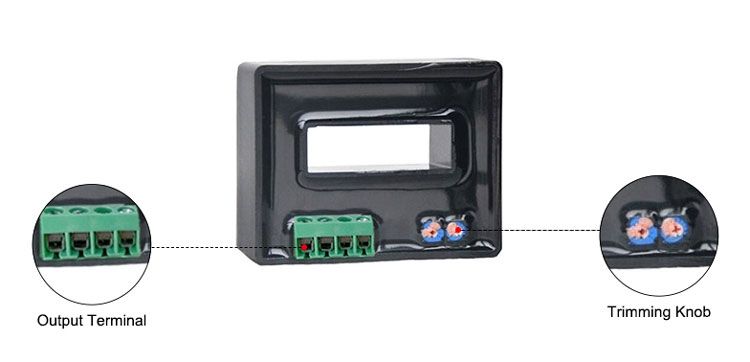

Hall effect current sensor 0 2000a detail

Specs
Hole Diameter 20.5*10.5mm/43*13mm/52*15mm/52*32mm
Measuring Range of Input Current (20.5*10.5mm) AC/DC 0-50A ~ 0-500A
Measuring Range of Input Current (43*13mm) AC/DC 0-200A ~ 0-1000A
Measuring Range of Input Current (52*15mm) AC/DC 0-200A ~ 0-1500A
Measuring Range of Input Current (52*32mm) AC/DC 0-400A ~ 0-1500A
Output Signal 0-4VDC, 0-5VDC
Zero Offset Voltage ±20mV
Offset Voltage Drift ≤±1.0mV/℃
Linearity ≤0.2%FS
Power Supply ±15VDC
Accuracy 1.0%F.S.
Bandwidth 0~20kHz
Response Time ≤5us
Withstand Voltage AC 2500V (between input, output and power supply)
Work Temperature -25~+70℃
Storage Temperature -40~+85℃
Humidity ≤95%RH (no dew formation, no corrosive gas)
Elevation ≤3500m
Shipping Weight 1kg
Measuring Method Through-hole type
Installation Screw fixation
Application
Welding and plating equipment

Welding and Plating Equipment

Power distribution systems

Power Distribution Systems

Frequency converters and ups systems

Frequency Converters and UPS Systems

FAQ


Yes. The current sensor can measure both positive and negative current flows, making it suitable for applications like battery charging/discharging or regenerative braking in motor drives.



Yes, the sensor’s analog output signal can be connected to digital multimeters, data loggers, or industrial PLCs for real-time monitoring and control.



Completely suitable. Closed-loop Hall current sensors are widely used in electric vehicles, energy storage systems, charging piles, BMS management systems, etc. due to their high accuracy, wide range, bi-directional measurement and good electrical isolation.
