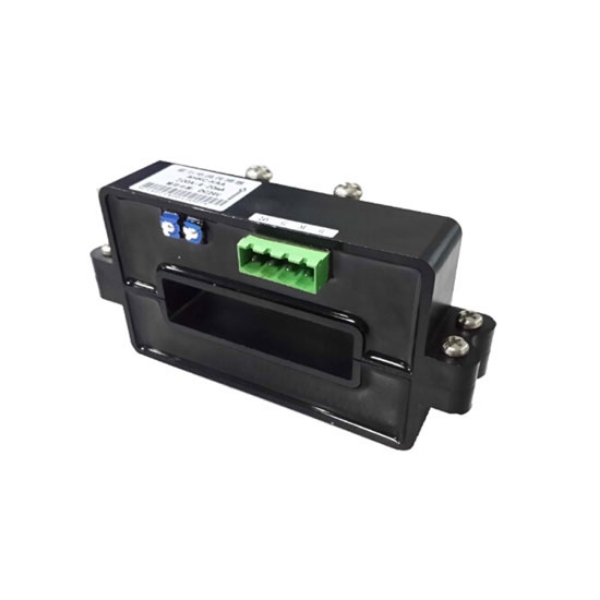

Non Invasive DC Current Sensor, 0-20000A, 4-20mA Output

The non-invasive DC current sensor provides precise current detection with fast signal response for real-time applications, available in models measuring DC 0-50A, 1000A, and 20000A. Utilizing Hall Effect technology, DC current sensor ensures high accuracy and linearity with minimal distortion, delivering reliable performance across a broad range of loads. Open loop Hall effect current sensor offers strong overload and interference resistance. The DC current sensor has a 4-20mA output, making it compatible with AD converters, PLCs, DSPs, and other systems for easy integration. Ideal for applications like battery systems, solar energy management, motor drives, and UPS, it guarantees stable operation and seamless integration into complex setups.

Feature

• Wide Current Detection Range: Capable of measuring DC currents from 0 to 20,000A, offering exceptional precision across a broad spectrum of applications, from light to heavy loads.
• Fast Signal Response: Ensures rapid current detection and feedback, making it ideal for real-time applications where quick adjustments are necessary.
• Reliable Performance in Harsh Conditions: Built to withstand significant overloads and electrical interference, ensuring dependable operation in demanding environments.
• High Accuracy and Linearity: Delivers precise, linear output with minimal distortion, guaranteeing stable and accurate current measurements over time.
• Versatile Signal Compatibility: Features 4-20mA output, compatible with AD converters, PLCs, DSPs, and other secondary systems, offering easy integration into diverse setups.
• Ideal for Complex Systems: Perfect for monitoring DC current in applications such as battery systems, solar energy management, motor drives, and uninterruptible power supplies (UPS).
• Robust Anti-Interference Protection: SUCH DC current sensor is engineered with strong resistance to electrical noise and interference, ensuring accurate data transmission even in electrically noisy environments.
• Hall Effect-Based Measurement: Utilizes the Hall effect to convert current signals into a stable output format, making it suitable for use in a wide variety of applications.

Dimension (Unit:mm)

Wiring Diagram

Caveat

1. When using Hall sensors, to achieve better dynamic characteristics and sensitivity, it is essential to ensure proper coupling between the primary and secondary coils. It is recommended to use a single wire that fully fills the wire passage holes in the Hall sensor module.
2. When using Hall sensors, the best measurement accuracy is achieved at the rated input current value. When the measured current is significantly below the rated value, to achieve the best accuracy, the primary side can use multiple turns, i.e., IPNP = rated ampere-turns. Additionally, the temperature of the primary feed line should not exceed 80°C.
3. The auxiliary power supply for the Hall current sensor during normal operation should not exceed ±20% of the rated value, and the ripple should not exceed ±1%.
4. The Hall current sensor must not be dropped from a height exceeding 1 meter during installation and use.
5. The zero point and full-scale adjustment potentiometers should not be adjusted.
6. The auxiliary power supply must be configured separately, and the positive and negative terminals of the power supply must not be reversed.
7. It is recommended to use shielded cables for the output signal lines.
