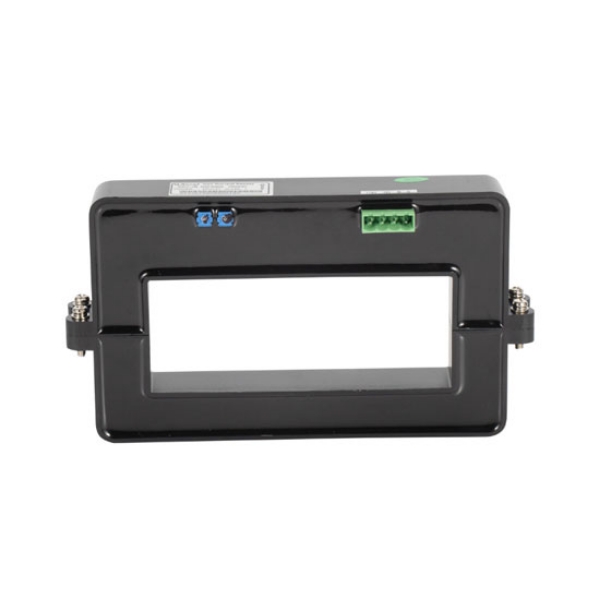

Split Core Current Sensor, AC 0-400A/1500A/20000A

SKU: SUCH-HEC-AC20000
$152.89
● Measuring range AC 0-400A/2000A/20000A ● Hole diameter 64*16mm/132*52mm ● 12/24V DC power supply ● DC 4-20mA output signal
*
*
*
*
🚚 Free shipping
🕒 Delivery date: 6-12 days
🔁 30-day Returns
Overview

The split core current sensor offers flexible current measurement for a wide range of applications. Its split core design allows for easy, non-invasive installation without disconnecting existing wiring, making it ideal for retrofitting and quick deployment. This open-loop Hall current sensor ensures high accuracy and precision with minimal error, delivering reliable data for industrial, commercial, and residential systems. Built to withstand electrical overloads and minimize electromagnetic interference, it guarantees stable performance in demanding environments. With real-time signal feedback, fast response times, and durable construction, it is perfect for use in power distribution, motor drives, solar energy systems, UPS, VFDs, and more. Open loop hall effect current sensor features standard output for seamless integration with PLCs and controllers.

Feature

  • Flexible Current Range: Available in three models with measurement ranges of AC 0-400A, 0-1500A, and 0-20000A, providing versatility for various current monitoring needs, from small to large-scale applications.
  • Split Core Design for Easy Installation: SUCH split core design allows for simple, non-invasive installation without the need to disconnect existing wiring, making it ideal for retrofitting or quick deployment.
  • High Accuracy and Precision: Ensures precise current measurements with minimal error, delivering reliable data for applications in industrial, commercial, and residential systems.
  • Wide Application Compatibility: Hall effect current sensor suitable for use in a variety of systems including power distribution, motor drives, solar energy systems, UPS, variable frequency drives (VFDs), and more.
  • Strong Overload and Interference Resistance: Engineered to withstand electrical overloads and minimize the effects of electromagnetic interference, ensuring stable performance even in demanding environments.
  • Real-Time Signal Feedback: Offers fast response times, enabling real-time monitoring and quick adjustments for optimal system performance.
  • Durable Construction: Built with high-quality materials to withstand harsh environmental conditions, ensuring long-lasting reliability and durability in industrial settings.
  • Standard Output Integration: Equipped with a standard output, making it compatible with various data acquisition systems, PLCs, and controllers for seamless integration into existing setups.

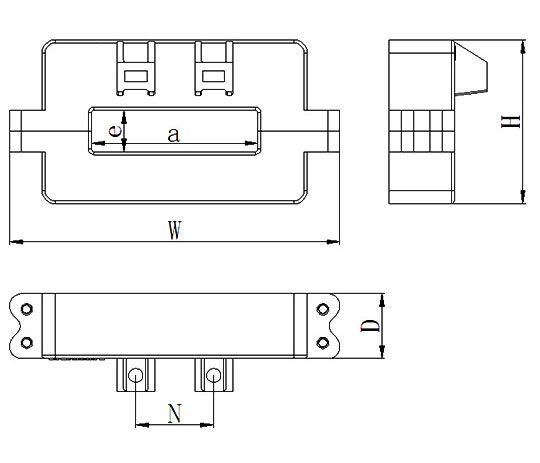

Dimension (Unit:mm)

Hall effect current sensor 20000a size

Hole Size W H D a e N
64*16mm 127 63 25 64 16 30
132*52mm 204 111.5 29 132 52 48*2


Wiring Diagram

AC 50-1500a current sensor wiring diagram



Caveat

  1. When using Hall sensors, to achieve better dynamic characteristics and sensitivity, it is essential to ensure proper coupling between the primary and secondary coils. It is recommended to use a single wire that fully fills the wire passage holes in the Hall sensor module.
  2. When using Hall sensors, the best measurement accuracy is achieved at the rated input current value. When the measured current is significantly below the rated value, to achieve the best accuracy, the primary side can use multiple turns, i.e., IPNP = rated ampere-turns. Additionally, the temperature of the primary feed line should not exceed 80°C.
  3. The auxiliary power supply for the Hall current sensor during normal operation should not exceed ±20% of the rated value, and the ripple should not exceed ±1%.
  4. The Hall current sensor must not be dropped from a height exceeding 1 meter during installation and use.
  5. The zero point and full-scale adjustment potentiometers should not be adjusted.
  6. The auxiliary power supply must be configured separately, and the positive and negative terminals of the power supply must not be reversed.
  7. It is recommended to use shielded cables for the output signal lines.
Specs
Hole Diameter 64*16mm/132*52mm
Measuring Range of Input Current (64*16mm) AC 0-400A ~ 0-2000A
Measuring Range of Input Current (132*52mm) AC 0-2000A ~ 0-20000A
Output Signal DC 4-20mA
Zero Offset Current ±0.05mA
Offset Current Drift ±0.04mA/℃
Linearity ≤0.2%FS
Power Supply DC 24V±10% or DC 12V±10%
Accuracy 1.0%F.S.
Response Time ≤1ms
Withstand Voltage AC 2500V (between input, output and power supply)
Work Temperature -25~+70℃
Storage Temperature -40~+85℃
Humidity ≤95%RH (no dew formation, no corrosive gas)
Elevation ≤3500m
Shipping Weight 1kg
Measuring Method Split-core type
Installation Screw fixation
Application
Battery energy storage systems

Battery Energy Storage Systems

Solar power management

Solar Power Management

Variable frequency drives

Variable Frequency Drives

FAQ

The split core current sensor is a non-invasive current sensor designed for measuring alternating current (AC) in a wide range of applications. It uses a split-core design, allowing easy installation without disconnecting cables. The sensor operates by detecting the magnetic field generated by the AC current flowing through the conductor and converting it into a proportional electrical signal. It is available in various current measurement ranges, including 0-400A, 0-1500A, and 0-20000A.

The split core current sensor is perfect for a variety of applications, including:

  • Power Distribution Systems: To monitor current flow and ensure efficient operation.
  • HVAC Systems: To detect energy consumption in heating, ventilation, and air conditioning systems.
  • Industrial Equipment: Ideal for monitoring motors, generators, and other heavy machinery. Energy
  • Management Systems: Useful in energy conservation efforts, by tracking energy usage in real-time.
  • Renewable Energy Systems: Can be used to monitor energy production in solar or wind power systems.

Installation is quick and straightforward. Simply open the split core, place it around the conductor (wire) carrying the AC current, and snap it closed. No need to disconnect the wire or interrupt the electrical circuit, making it a safe and efficient process.
