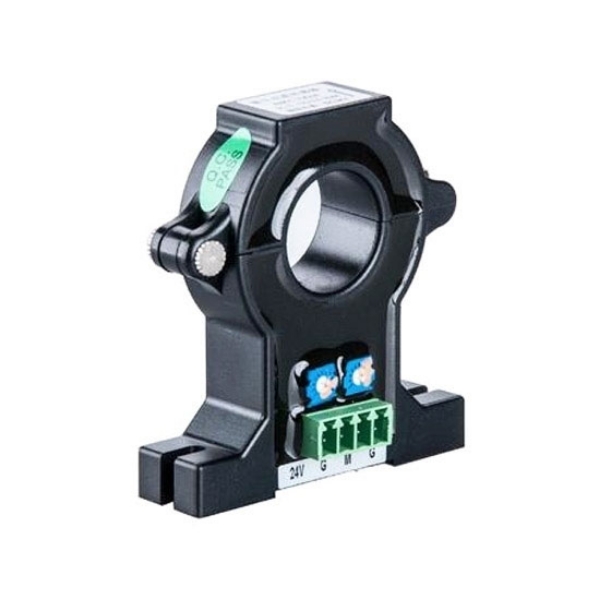

Open Loop Hall Effect Current Sensor, AC 50A to 1500A

SKU: SUCH-HEC-OL1500
$89.99
● Measuring range AC 50-1500A ● Hole diameter 20/40/55 mm ● 12/24V DC power supply ● DC 4-20mA output signal
*
*
*
*
*
🚚 Free shipping
🕒 Delivery date: 6-12 days
🔁 30-day Returns
Overview

SUCH open loop Hall effect current sensor, with a measuring range of 50–1500A and available in 20mm, 40mm, and 55mm aperture sizes, offers DC 4–20mA output and operates on 12/24V DC power. It is designed for isolated AC current conversion using Hall effect principles, ensuring compatibility with AD, DSP, PLC, and other data acquisition systems. Known for its fast response time, high accuracy, and excellent linearity, this sensor is widely used in applications such as battery monitoring, solar and inverter systems, DC motor drives, welding, UPS, and VFDs.

Feature

  • Versatile Signal Compatibility: This open loop Hall effect current sensor supports the isolated conversion of AC, making it suitable for complex and dynamic signal environments.
  • Hall Effect-Based Output Conversion: Utilizes the Hall effect principle to convert current signals into standard output formats that can be directly interfaced with AD converters, DSPs, PLCs, and secondary instrumentation.
  • Broad Application Range: Ideal for current monitoring in battery systems, inverter power supplies, solar energy management, DC panels, motor drives, electroplating and welding systems, variable frequency drives (VFDs), UPS, and servo control applications.
  • Fast Response Time: Delivers rapid signal response, ensuring real-time feedback and precise current control in dynamic load conditions.
  • Wide Measurement Range with High Accuracy: Covers a broad current detection span from AC 50A to 1500A with excellent precision, enabling reliable performance across light and heavy loads.
  • Strong Overload and Interference Resistance: AC current sensor engineered with robust overload tolerance and strong anti-interference capability, making it dependable in harsh electrical environments.
  • Good Linearity and Signal Stability: Provides a linear output with minimal distortion, ensuring stable and accurate current signal acquisition and transmission.

Dimension (Unit:mm)

AC 50-1500a current sensor dimension

Φ (Hole diameter) W H D M (Mounting)
20 60 64 16 47
40 100 102 24 80
55 115 110 27 95.5


Wiring Diagram

AC 50-1500a current sensor wiring diagram

High Current Voltage Monitoring Program

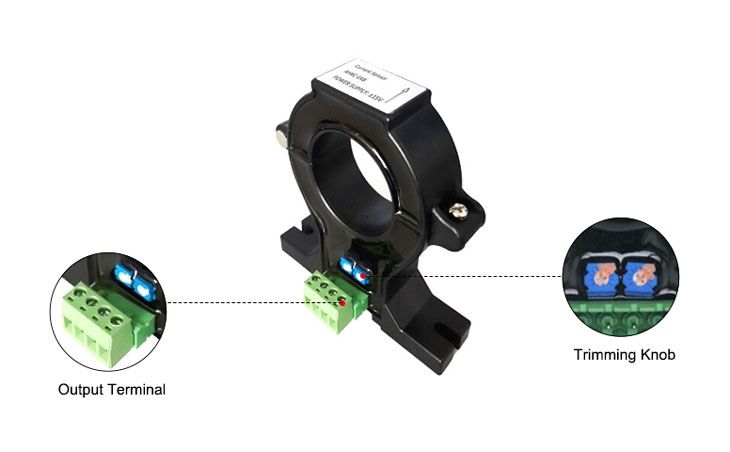

AC 50-1500a current sensor detail

Caveat

  1. When using Hall sensors, to achieve better dynamic characteristics and sensitivity, it is essential to ensure proper coupling between the primary and secondary coils. It is recommended to use a single wire that fully fills the wire passage holes in the Hall sensor module.
  2. When using Hall sensors, the best measurement accuracy is achieved at the rated input current value. When the measured current is significantly below the rated value, to achieve the best accuracy, the primary side can use multiple turns, i.e., IPNP = rated ampere-turns. Additionally, the temperature of the primary feed line should not exceed 80°C.
  3. The auxiliary power supply for the Hall current sensor during normal operation should not exceed ±20% of the rated value, and the ripple should not exceed ±1%.
  4. The Hall current sensor must not be dropped from a height exceeding 1 meter during installation and use.
  5. The zero point and full-scale adjustment potentiometers should not be adjusted.
  6. The auxiliary power supply must be configured separately, and the positive and negative terminals of the power supply must not be reversed.
  7. It is recommended to use shielded cables for the output signal lines.
Specs
Hole Diameter 20mm/40mm/55mm
Measuring Range of Input Current (20mm) AC 0-50A ~ 0-500A
Measuring Range of Input Current (40mm) AC 0-200A ~ 0-1000A
Measuring Range of Input Current (55mm) AC 0-500A ~ 0-1500A
Output Signal DC 4-20mA
Zero Offset Current ±0.05mA
Offset Current Drift ±0.04mA/℃
Linearity ≤0.2%FS
Power Supply DC 24V±10% or DC 12V±10%
Accuracy 1.0%F.S.
Response Time ≤1ms
Withstand Voltage AC 2500V (between input, output and power supply)
Work Temperature -25~+70℃
Storage Temperature -40~+85℃
Humidity ≤95%RH (no dew formation, no corrosive gas)
Elevation ≤3500m
Shipping Weight 1kg
Measuring Method Split-core type
Installation Screw fixation
Application
Battery energy storage systems

Battery Energy Storage Systems

Solar power management

Solar Power Management

Variable frequency drives

Variable Frequency Drives

FAQ

An open loop Hall effect current sensor operates by detecting the magnetic field generated by an AC or DC current flowing through a conductor. It uses a Hall effect element placed in an air gap of a magnetic core to convert this magnetic field into a proportional voltage signal. In the open loop design, this signal is directly amplified and output without feedback correction, which ensures fast response, lower cost, and compact size—ideal for general current monitoring applications from 50A up to 1500A.

Open loop Hall sensors offer several key benefits for AC systems: they provide electrical isolation between the measured conductor and the output circuit, ensuring user safety and system protection. Their fast response time allows for real-time current monitoring, making them ideal for dynamic loads such as motor drives, inverters, UPS systems, and variable frequency drives. Additionally, they support wide measurement ranges with high linearity and can be easily integrated into PLCs, DSPs, or monitoring instruments via standard output signals like 4-20mA or 0-5V.

This sensor is widely used in industrial and energy applications where accurate current monitoring is crucial. Common scenarios include battery management systems, solar power inverters, electroplating and welding systems, motor control, uninterruptible power supplies (UPS), servo systems, and DC panels. Its compatibility with various current ranges (AC 50A to 1500A), combined with features like fast signal conversion and isolation, make it suitable for both light-duty and heavy-duty current sensing tasks.
