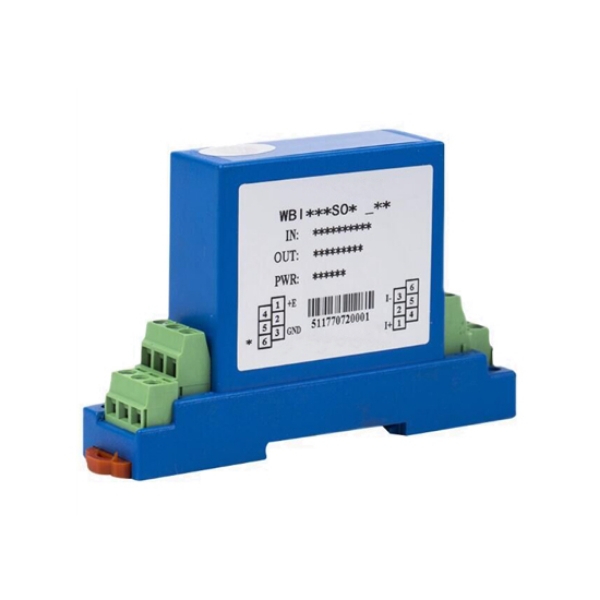

AC/DC Current Sensor, 1mA/20mA/1A to 5A

The AC/DC current sensor is a high-precision device designed for real-time measurement of both AC and DC currents using a linear photoelectric isolation principle. SUCH current sensor offers flexible input ranges from microamp to amp levels and provides standard output signals 0/4-20mA, 0-5/10V, powered by a DC 12/24V supply. Engineered with average value conversion technology, this sensor ensures accurate and stable output with fast response, wide frequency compatibility, and minimal drift. Its snap-fit structure and terminal wiring make installation simple and secure, ideal for vibration-prone environments and industrial monitoring applications.

Feature

• Isolation Principle: Adopts a linear photoelectric isolation principle for real-time measurement of both AC and DC currents in electrical grids or circuits.
• Signal Conversion Technology: Uses average value transformation technology to convert current signals into a DC voltage (UZ) output.
• Measurement Compatibility: Capable of isolating and measuring sinusoidal waveforms and bidirectional DC voltage.
• Performance Advantages: AC and DC current compatibility, high accuracy, high electrical isolation, wide frequency response, fast response time, low temperature drift, low power consumption, and wide operating temperature range.
• Wiring Terminals: Convenient wiring and reliable connection, particularly suitable for environments with vibration.
• Snap-fit Structure: Compact snap-in design with simple structure and easy installation.

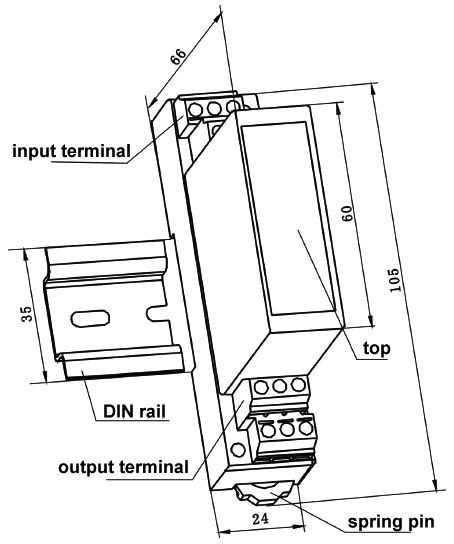

Dimension

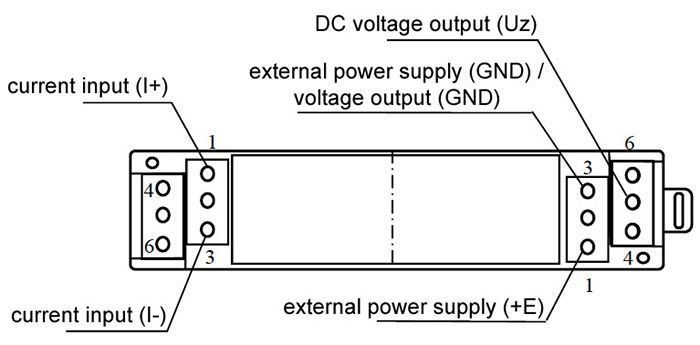

0-5V/0-10V Output Wiring

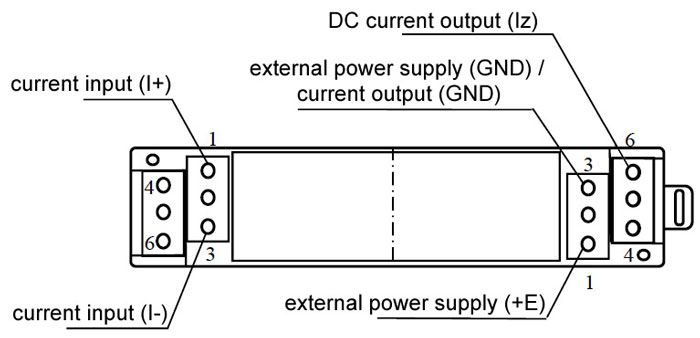

0-20mA/4-20mA Output Wiring

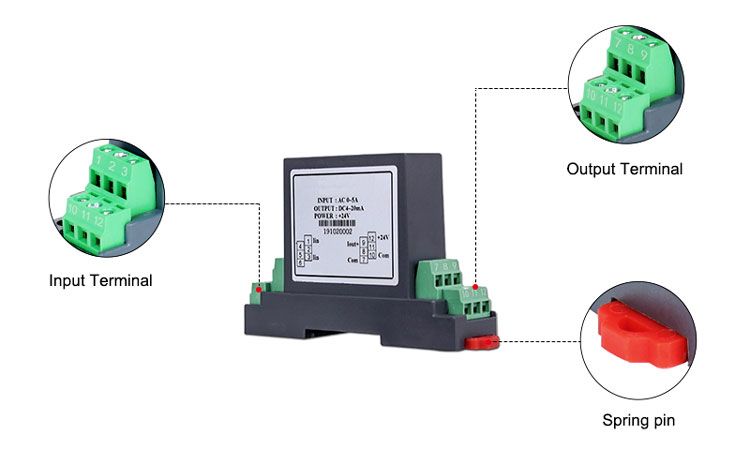

Details
